1694494 - Simplicity Pacer 34" Walk-Behind Mower 34" Mower Deck - Belt, Idler Arm & Hitch - 13HP Parts Diagram

Pacer 34" Walk-Behind Mower

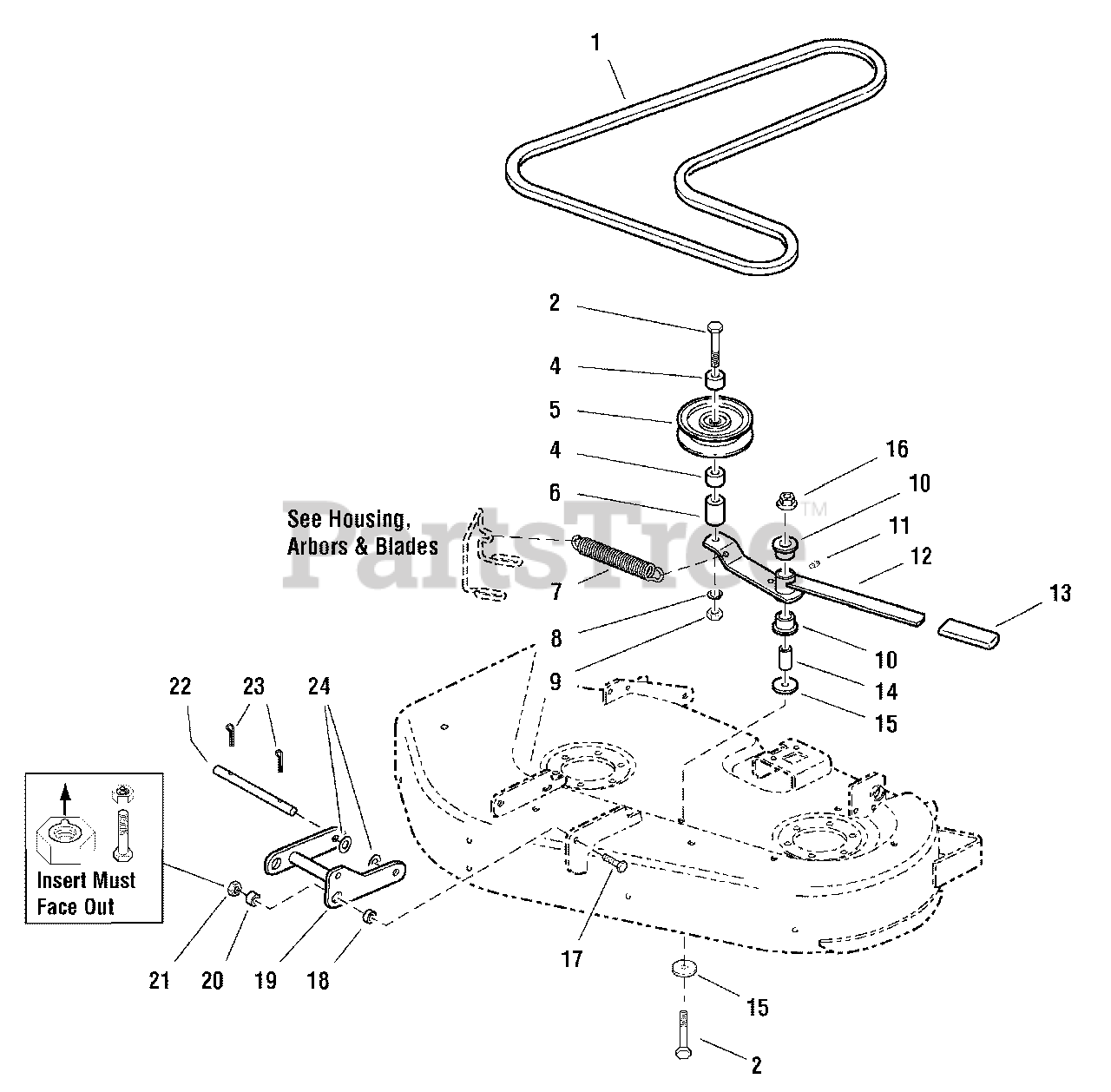

34" Mower Deck - Belt, Idler Arm & Hitch - 13HP Parts Diagram

  • Title

1

Simplicity 1723391SM

BELT, V-Belt 34" Mower Power Take Off

$

$

Not available

2

Simplicity 1928957SM

CAPSCREW, Hex Head, 3/8-16 x 2-3/4, Black

$6.49

$

In Stock, only 2 left!

0

4

Simplicity 1667811SM

SPACER

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 1704926SM

PULLEY, Idler

$38.99

$

In Stock, only 3 left!

0

6

Simplicity 1667812SM

SPACER

$5.99

$

In Stock, Qty 16

0

7

Simplicity 2164213SM

SPRING, Extension

$32.99

$

Usually ships in 2-12 days

0

8

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

9

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

10

Simplicity 1663114SM

BUSHING

$4.49

$

In Stock, only 3 left!

0

11

Simplicity 2812808SM

FITTING, Lube

$4.49

$

In Stock, Qty 20+

0

13

Simplicity 1665835

GRIP
(Superseded to 1665835YP)

$7.49

$

Usually ships in 2-12 days

0

12

Simplicity 1724535SM

LEVER & ARM ASSEMBLY, Complete (Includes Ref. No. 10 & 11)

$54.99

$

Usually ships in 2-12 days

0

14

Simplicity 1657242SM

SPACER

$10.99

$

In Stock, Qty 10

0

16

Simplicity 1928352SM

NUT, Hex Serrated Flange, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, only 3 left!

0

15

Simplicity 1924356SM

WASHER, 3/8
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

17

Simplicity 1921969SM

CAPSCREW, Hex Head, 3/8-16 x 1-1/2
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

18

Simplicity 1668711

SPACER
(Superseded to 1667811SM)

$3.49

$

In Stock, Qty 20+

0

19

Simplicity 1724357ASM

HITCH

$44.99

$

Usually ships in 2-12 days

0

20

Simplicity 2157081SM

SPACER

$8.99

$

In Stock, only 4 left!

0

21

Simplicity 2860681SM

NUT, Hex Lock, Aluminum Insert, 3/8-16

$4.49

$

In Stock, Qty 7

0

22

Simplicity 1724430SM

PIN

$25.99

$

Usually ships in 2-12 days

0

24

Simplicity 1960170SM

WASHER, 1/2
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

23

Simplicity 1918452SM

PIN, Cotter
(Superseded to 703795)

$5.99

$

In Stock, only 1 left!

0
