1694473 - Simplicity 50" Mower Deck 50" Mower Deck - Housing, Arbors & Blades Parts Diagram

50" Mower Deck

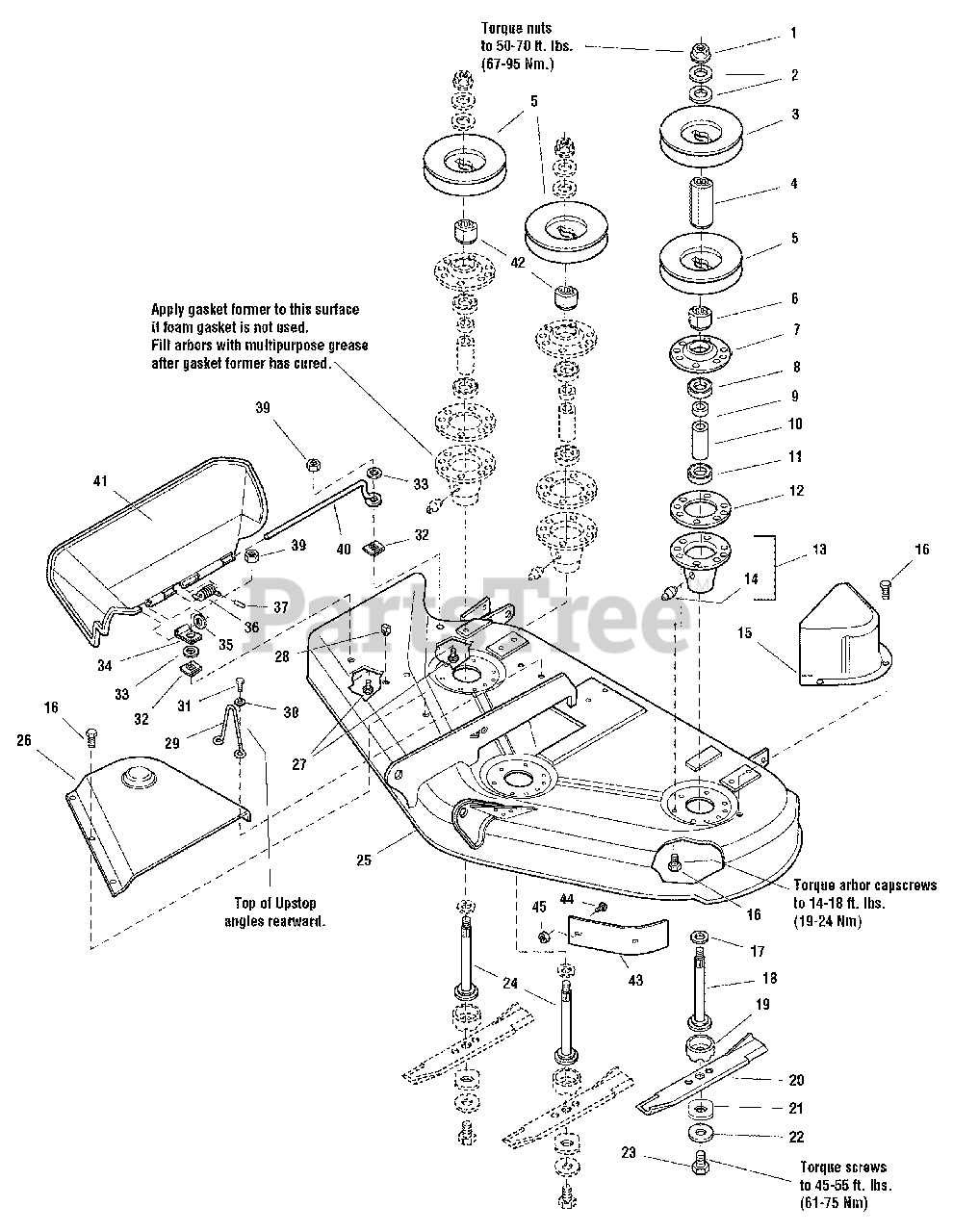

50" Mower Deck - Housing, Arbors & Blades Parts Diagram

  • Title

1

Simplicity 1714419SM

NUT, Hex Flange, 9/16-18

$5.99

$

In Stock, Qty 20+

0

2

Simplicity 1713675SM

WASHER, Bellevilled, 9/16

$4.49

$

In Stock, Qty 20+

0

3

Simplicity 1713161SM

PULLEY

$20.99

$

In Stock, Qty 20+

0

4

Simplicity 1713158SM

HUB, Double Pulley

$18.99

$

In Stock, Qty 20+

0

5

Simplicity 1713098SM

PULLEY

$19.99

$

In Stock, Qty 20+

0

6

Simplicity 1713533SM

HUB, Double Pulley

$9.99

$

In Stock, Qty 20+

0

7

Simplicity 1655729ASM

COVER, Arbor Housing

$14.99

$

Usually ships in 2-12 days

0

8

Simplicity 2108202SM

BEARING, Ball, 3/4 x 1-3/4 x 5/8

$11.99

$

In Stock, Qty 20+

0

9

Simplicity 1715724SM

SPACER, 21/32 x 3/4 x 5/8

$9.49

$

In Stock, Qty 20+

0

10

Simplicity 1732544SM

SPACER, 11/16 x 5/32 x 2-11/16

$5.49

$

In Stock, Qty 20+

0

11

Simplicity 1705897SM

BEARING, Ball, 11/16 x 1-9/16 x 15/32

$8.49

$

In Stock, Qty 20+

0

12

Simplicity 1707335SM

GASKET, Foam

$5.99

$

In Stock, Qty 20+

0

13

Simplicity 1713338ASM

HOUSING ASSEMBLY, Arbor Bottom, w/Lube Fitting

Note: (Includes Ref. No. 14)

$41.99

$

In Stock, Qty 20+

0

14

Simplicity 1704314SM

FITTING, Grease
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

15

Simplicity 1720560ASM

COVER, Arbor
(Superseded to 84002518)

$90.99

$

In Stock, only 1 left!

0

16

Simplicity 1664847SM

CAPSCREW, Hex Head Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

17

Simplicity 1713619SM

WASHER, Bellevilled, 9/16, Black

$4.49

$

In Stock, Qty 20+

0

18

Simplicity 1713612SM

SHAFT, Arbor (LH)

$

$

Not available

19

Simplicity 1713196SM

SHIELD, Grass, Lower

$9.49

$

In Stock, Qty 20+

0

20

Simplicity 1708229ASM

BLADE, Mower, 18-1/8
(Superseded to 1716697ASM)

$24.99

$

In Stock, Qty 20+

0

21

Simplicity 1713089SM

WASHER, Hex, 11/16 x 2

$4.99

$

In Stock, Qty 20+

0

22

Simplicity 1656916SM

WASHER, Spring 15/32, Black

$7.49

$

In Stock, Qty 20+

0

23

Simplicity 2823471SM

CAPSCREW, Hex Head, 7/16-14 x 1
(Superseded to 703579)

$4.49

$

In Stock, Qty 20+

0

24

Simplicity 1713195SM

SHAFT, Arbor (Center & RH)

$31.99

$

In Stock, Qty 8

0

25

Simplicity 1685495SM

MOWER HOUSING ASSEMBLY, 50" Mower (Orange)

$2226.99

$

Usually ships in 2-12 days

0

25

Simplicity 1687156SM

MOWER HOUSING ASSEMBLY, 50" Mower (Red)

$477.99

$

Usually ships in 2-12 days

0

26

Simplicity 1715673SM

COVER, Arbor

$38.99

$

In Stock, only 1 left!

0

27

Simplicity 1931318SM

CARRIAGE BOLT, 1/4-20 x 7/8

$4.49

$

In Stock, only 2 left!

0

28

Simplicity 1705115SM

PLUG, Hole

$4.49

$

In Stock, only 1 left!

0

29

Simplicity 1719929SM

UPSTOP

$16.99

$

Usually ships in 2-12 days

0

30

Simplicity 1924940SM

WASHER
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

31

Simplicity 1960541SM

CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 3/4

$3.49

$

Usually ships in 2-12 days

0

32

Simplicity 1960518SM

NUT, Push
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

33

Simplicity 1960353SM

WASHER, 1/4, Black
(Superseded to 703229)

$4.49

$

In Stock, Qty 7

0

34

Simplicity 1704873SM

CLAMP

$4.49

$

In Stock, Qty 20+

0

35

Simplicity 1919326SM

WASHER, 5/16, Black

$4.49

$

In Stock, Qty 5

0

36

Simplicity 7101082SM

SPRING, Torsion
(Superseded to 1759750YP)

$8.49

$

In Stock, Qty 20+

0

37

Simplicity 1723323SM

CAP, Spring End

$4.99

$

In Stock, only 1 left!

0

39

Simplicity 1920397SM

NUT, Hex, 1/4-20 ESNA
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

40

Simplicity 1706709SM

ROD, Deflector, Front

$8.49

$

In Stock, Qty 20+

0

41

Simplicity 1705449SM

DEFLECTOR, Plastic

$122.99

$

In Stock, only 1 left!

0

42

Simplicity 1713197SM

HUB, Pulley, Center & RH

$6.99

$

In Stock, Qty 20+

0

43

Simplicity 1724538ASM

BAFFLE, Anti-Blowout

$45.99

$

In Stock, only 1 left!

0

44

Simplicity 1927557SM

NUT, Hex, Whizlock, 5/16-18

$4.99

$

Usually ships in 2-12 days

0

45

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0
