1694468 - Simplicity Broadmoor Lawn Tractor, 18hp Control Group - Cruise Control Parts Diagram

Broadmoor Lawn Tractor, 18hp

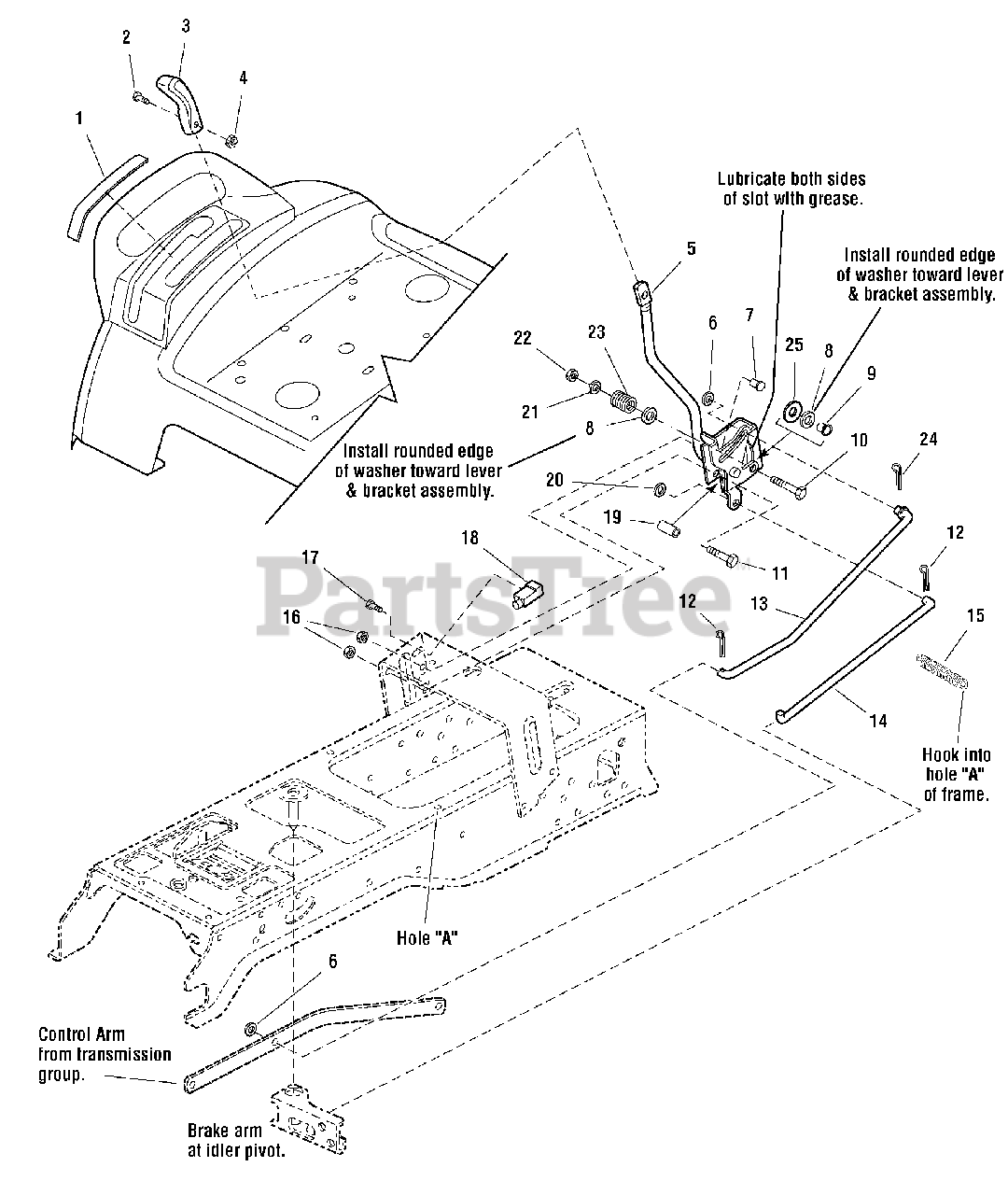

Control Group - Cruise Control Parts Diagram

  • Title

1

Simplicity 1723713SM

DECAL, Cruise & Lift

$15.99

$

Usually ships in 2-12 days

0

2

Simplicity 1960666SM

SCREW, Torque Head Plus Socket Head, 1/4-20 x 7/8

$4.49

$

In Stock, only 1 left!

0

3

Simplicity 1722303SM

KNOB, Cruise

$13.99

$

In Stock, only 1 left!

0

4

Simplicity 1920397SM

NUT, Hex Lock ESNA Light, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

5

Simplicity 1722003SM

LEVER & BRACKET ASSEMBLY, Cruise

$78.99

$

Usually ships in 2-12 days

0

6

Simplicity 1960103SM

WASHER, 3/8, Black

$4.49

$

In Stock, Qty 7

0

7

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

8

Simplicity 1926192SM

WASHER, 9/16 x 1-1/4 x 1/8

$19.99

$

Usually ships in 2-12 days

0

9

Simplicity 1709043SM

SPACER, w/Flange, 11/32 x 15/32 x 3/4

$8.49

$

Usually ships in 2-12 days

0

10

Simplicity 1931342SM

CARRIAGE BOLT, 5/16-18 x 2 3/4
(Superseded to 703857)

$6.49

$

Usually ships in 2-12 days

0

11

Simplicity 1960273SM

CARRIAGE BOLT, 5/16-18 x 2-1/4
(Superseded to 704421)

$5.49

$

In Stock, only 1 left!

0

12

Simplicity 1722460SM

PIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, only 1 left!

0

13

Simplicity 1722117SM

ROD, Cruise

$14.99

$

Usually ships in 2-12 days

0

14

Simplicity 1733719SM

ROD, Return

$14.99

$

Usually ships in 2-12 days

0

15

Simplicity 2159106SM

SPRING, Cruise Return to Frame
(Superseded to 703144)

$5.99

$

In Stock, Qty 6

0

16

Simplicity 1960636SM

NUT, Hex KEPS, 5/16-18

$4.99

$

In Stock, only 1 left!

0

17

Simplicity 1960001SM

CAPSCREW, Hex Washer Head Plastite, 10-14 x 5/8
(Superseded to 703062)

$4.49

$

Usually ships in 2-12 days

0

18

Simplicity 1717050SM

SWITCH, Push, Neutral Start, Gray

$17.99

$

In Stock, Qty 20+

0

19

Simplicity 1722080SM

SPACER, 11/32 x 5/8 x 1-13/32

$15.99

$

Usually ships in 2-12 days

0

20

Simplicity 1919326SM

WASHER, 5/16, Black

$4.49

$

In Stock, Qty 6

0

21

Simplicity 1919381SM

WASHER, 5/16, Black
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

22

Simplicity 1919438SM

NUT, Hex Lock ESNA Light, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

23

Simplicity 1677746SM

SPRING, Compression

$7.99

$

Usually ships in 2-12 days

0

24

Simplicity 1918447SM

PIN, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

25

Simplicity 1705928SM

DISC, Fricion

$6.99

$

Usually ships in 2-12 days

0
