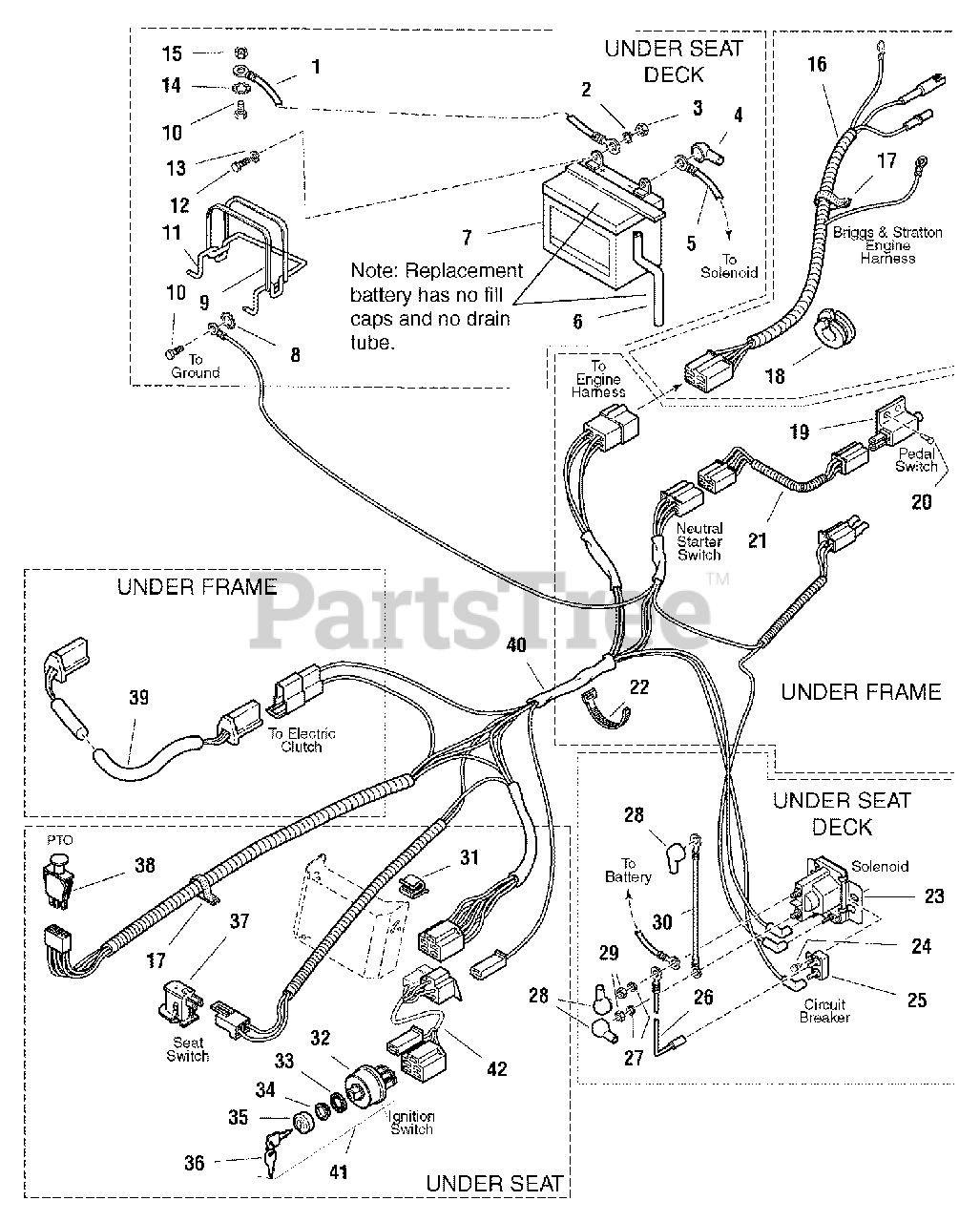

1694462 - Simplicity Coronet Rear-Engine Riding Mower, 13hp Electrical Group Parts Diagram

Coronet Rear-Engine Riding Mower, 13hp

Electrical Group Parts Diagram

  • Title

1

Simplicity 1707056SM

CABLE, Battery to Ground

$10.99

$

Usually ships in 2-12 days

0

2

Simplicity 2816964SM

WASHER, Lock, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

3

Simplicity 2816622SM

NUT, Hex 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

4

Simplicity 1709086SM

BOOT, Insulator
(Superseded to 1677296SM)

$6.49

$

In Stock, Qty 11

0

5

Simplicity 1707056SM

CABLE, Battery to Solenoid (Kohler Models)

$10.99

$

Usually ships in 2-12 days

0

5

Simplicity 1713163SM

CABLE, Battery to Solenoid (Briggs & Stratton Models)

$24.99

$

In Stock, only 2 left!

0

5

Simplicity 1707056SM

CABLE, Battery to Solenoid (Briggs & Stratton Models)

Note: (2400 Series Models Only)

$10.99

$

Usually ships in 2-12 days

0

6

Simplicity 1612103SM

TUBE, Vent (Early Models Only)

$5.49

$

Usually ships in 2-12 days

0

7

Simplicity 1685215SM

BATTERY

$

$

Not available

8

Simplicity 2820426SM

WASHER, Lock, External Tooth, 5/16

$4.49

$

In Stock, only 1 left!

0

9

Simplicity 1665872SM

STRAP, Battery

$11.99

$

In Stock, Qty 7

0

10

Simplicity 1950018SM

CAPSCREW, Metric, M08-1.25 x 20 mm

$2.99

$

Usually ships in 2-12 days

0

11

Simplicity 1667805SM

BRACE, Battery

$

$

Not available

12

Simplicity 2823341SM

CAPSCREW, Hex Head, 1/4-20 x 3/4
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

13

Simplicity 2821319SM

WASHER
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

14

Simplicity 2820427SM

WASHER, Lock, External Tooth, 3/8
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

15

Simplicity 2816950SM

NUT, Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

16

Simplicity 1718948SM

WIRE ASSEMBLY, Harness to Engine (Briggs & Stratton Only)

$7.99

$

Usually ships in 2-12 days

0

17

Simplicity 1704873SM

CLAMP, Wire (11 HP B&S 5-Speed Only)

$4.49

$

In Stock, Qty 20+

0

18

Simplicity 1676648SM

GROMMET (11 HP 5-Speed Models Only)

$3.99

$

Usually ships in 2-12 days

0

19

Simplicity 1717050SM

SWITCH, Neutral Start

$17.99

$

In Stock, Qty 20+

0

20

Simplicity 1722035SM

POP-RIVET

$3.99

$

Usually ships in 2-12 days

0

21

Simplicity 1718949SM

WIRE ASSEMBLY, Neutral Switch (11 HP Coronet Only)

$10.99

$

Usually ships in 2-12 days

0

22

Simplicity 1701011SM

TIE, Self-Locking

$5.49

$

In Stock, only 2 left!

0

23

Simplicity 1686981SM

SOLENOID
(Superseded to 1686981YP)

$28.99

$

In Stock, Qty 20+

0

24

Simplicity 1925003SM

CAPSCREW, Hex Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 7

0

25

Simplicity 1665238SM

CIRCUIT BREAKER

$14.99

$

In Stock, Qty 20+

0

26

Simplicity 1665237SM

WIRE ASSEMBLY

$11.99

$

In Stock, Qty 7

0

27

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

28

Simplicity 2122023SM

COVER, Terminal

$5.99

$

In Stock, Qty 12

0

29

Simplicity 2820263SM

NUT, Hex, 5/16-24
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

30

Simplicity 1709088SM

CABLE, Solenoid to Starter

$11.99

$

Usually ships in 2-12 days

0

31

Simplicity 1715956SM

CLIP (14 HP Hydro Qty=1)

$4.99

$

Usually ships in 2-12 days

0

32

SWITCH, Ignition (6 pole)

$

$

Not available

33

Simplicity 1960547SM

WASHER, Internal Tooth, 5/8

$4.49

$

In Stock, only 3 left!

0

34

Simplicity 1717549SM

NUT
(Superseded to 847144)

$10.99

$

Usually ships in 2-12 days

0

35

Simplicity 1717550SM

COVER, Keyswitch
(Superseded to 847150)

$8.49

$

In Stock, Qty 16

0

36

Simplicity 1717163SM

KEYS (Set of 2 Keys)

$8.99

$

In Stock, Qty 20+

0

37

Simplicity 1714771SM

SWITCH, Seat, Gray Switch, Gray Retainer

Note: (Coronet 13HP Domestic - BEFORE SERIAL NO. 00600, Coronet 13HP Export - BEFORE SERIAL NO. 00099)

$20.99

$

In Stock, only 1 left!

0

37

Simplicity 1718981SM

SWITCH, Seat, Gray Switch, Black Retainer

Note: (Coronet 13HP Domestic - AFTER SERIAL NO. 00599, Coronet 13HP Export - AFTER SERIAL NO. 00098)

$21.99

$

In Stock, only 1 left!

0

38

Simplicity 1722887SM

* SWITCH, PTO, Electric Clutch

$33.99

$

In Stock, Qty 20+

0

38

Simplicity 1716332SM

* SWITCH, PTO, Electric Clutch
(Superseded to 1722887SM)

Note: (2400 Series Models Only)

$33.99

$

In Stock, Qty 20+

0

39

Simplicity 1724873SM

WIRE ASSEMBLY, Clutch

$15.99

$

Usually ships in 2-12 days

0

40

Simplicity 1718946SM

HARNESS, Wiring

$

$

Not available

41

Simplicity 1686734SM

IGNITION KEY SWITCH ASSEMBLY

$32.99

$

In Stock, Qty 20+

0

42

Simplicity 1726854SM

HARNESS, Wiring Extension

Note: (2400 Series Models Only)

$19.99

$

Usually ships in 2-12 days

0
