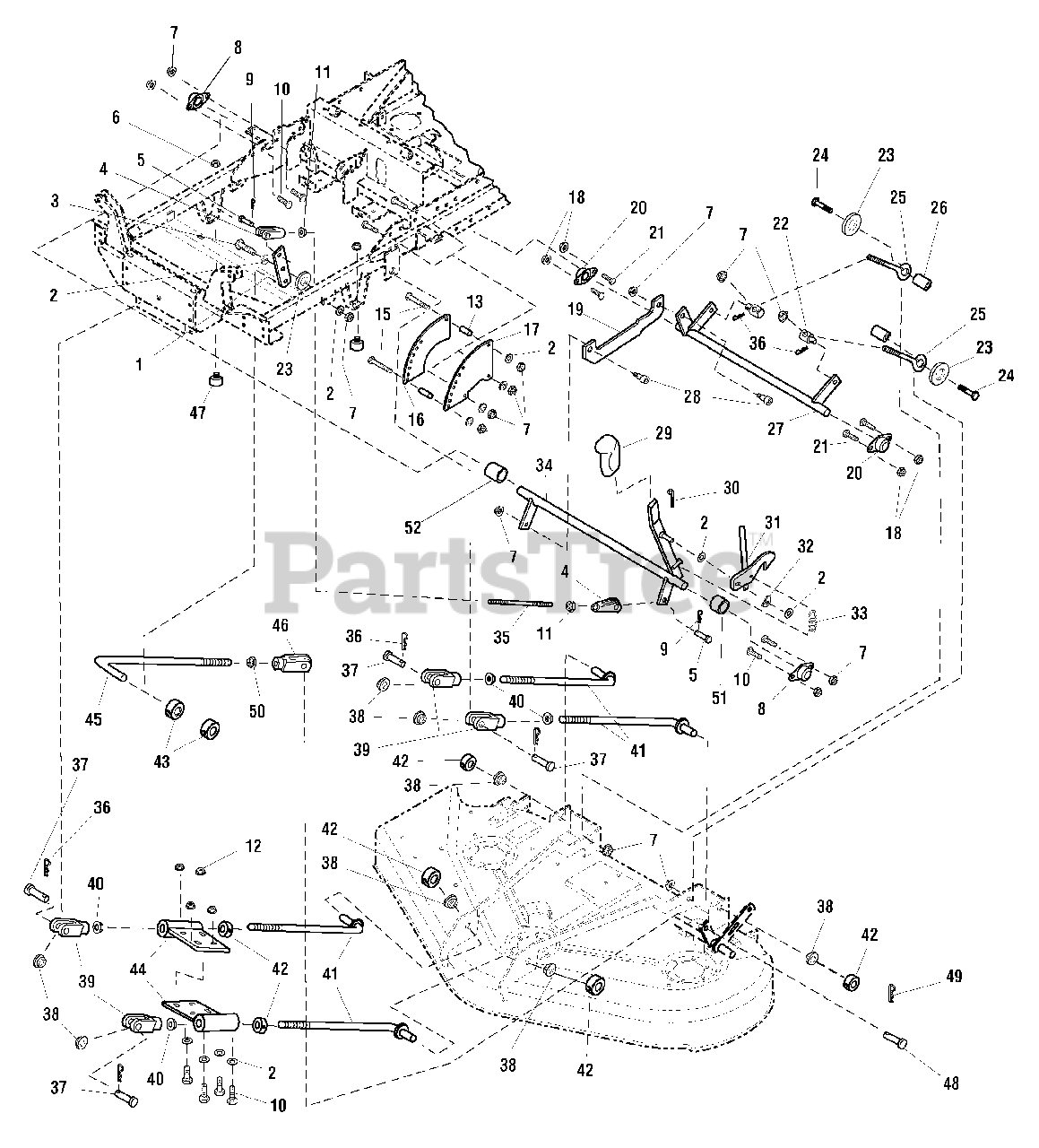

1694455 - Simplicity Consumer Zero-Turn Mower, 20hp Lift Group - Early Models (FI0015RA) Parts Diagram

Consumer Zero-Turn Mower, 20hp

Lift Group - Early Models (FI0015RA) Parts Diagram

  • Title

1

Simplicity 5048698CSM

REVERSING LINK

$

$

Not available

2

Simplicity 5025156SM

WASHER, 3/8, SAE
(Superseded to 703590)

$3.99

$

In Stock, Qty 19

0

3

Simplicity 5025013X12SM

CAPSCREW, Hex Head, 3/8-16 X 1-1/2

$3.99

$

Usually ships in 2-12 days

0

4

Simplicity 5021171SM

PLASTIC CLEVIS, 3/8-24

$15.99

$

Usually ships in 2-12 days

0

5

Simplicity 5025214X8SM

PIN, 3/8 DIA X 1"
(Superseded to 7029687YP)

$7.99

$

In Stock, only 1 left!

0

6

Simplicity 5025126SM

HEX NUT, Serrated Flange, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, Qty 5

0

7

Simplicity 5025096SM

NUT, Hex Nylon Lock, 3/8-16

$3.49

$

In Stock, Qty 20+

0

8

Simplicity 5021098SM

BEARING, Flange, Bronze, 3/4"

$13.99

$

In Stock, Qty 5

0

9

Simplicity 5025201X6SM

PIN, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

10

Simplicity 5025013X6SM

CAPSCREW, Hex Head, 3/8-16 X 3/4

$3.99

$

Usually ships in 2-12 days

0

11

Simplicity 1918403SM

JAM NUT, Hex, 3/8-24
(Superseded to 7090482SM)

$4.49

$

In Stock, only 1 left!

0

12

Simplicity 5025128SM

HEX NUT, Serrated Flange, 3/8-16

$3.49

$

In Stock, only 2 left!

0

13

Simplicity 5048264SM

SPACER

$5.99

$

Usually ships in 2-12 days

0

14

Simplicity 5023082SM

HITCH PIN ASSEMBLY, 1/2 X 3.50 (NOT SHOWN)

$22.99

$

Usually ships in 2-12 days

0

15

Simplicity 5025013X20SM

CAPSCREW, Hex Head, 3/8-16 X 2-1/2
(Superseded to 703873)

$4.49

$

In Stock, only 2 left!

0

16

Simplicity 5048750CSM

DECK HEIGHT PLATE, Inner, Orange

$

$

Not available

16

Simplicity 5048750DSM

DECK HEIGHT PLATE, Inner, Red

$

$

Not available

17

Simplicity 5048744CSM

DECK HEIGHT PLATE, Outer, Orange

$

$

Not available

17

Simplicity 5048744DSM

DECK HEIGHT PLATE, Outer, Red

$

$

Not available

18

Simplicity 5025057SM

HEX NUT, Nylon Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

19

Simplicity 5048733CSM

LINK, Drift Lift, Orange

$

$

Not available

19

Simplicity 5048733DSM

LINK, Drift Lift, Red

$

$

Not available

20

Simplicity 5021098SM

BUSHING, Bronze Flange

$13.99

$

In Stock, Qty 5

0

21

Simplicity 5025011X6SM

CAPSCREW, Hex Head, 5/16-18 X 3/4

$3.99

$

In Stock, Qty 20+

0

22

Simplicity 5045947SM

ADJUSTER, Brake Linkage

$26.99

$

Usually ships in 2-12 days

0

23

Simplicity 5025305SM

WASHER, 1-3/4 OD X .390 ID

$3.99

$

In Stock, only 3 left!

0

24

Simplicity 5025013X18SM

CAPSCREW, Hex Head, 3/8-16 X 1-3/4

$3.99

$

In Stock, only 4 left!

0

25

Simplicity 5021812SM

EYE BOLT, 3/8-16 X 6, 3.0 THRD, 1 EYE

$5.99

$

In Stock, Qty 18

0

26

Simplicity 5047125SM

SPACER

$7.99

$

In Stock, only 3 left!

0

27

Simplicity 5048711CSM

LIFT SHAFT, Rear Deck, Orange

$

$

Not available

27

Simplicity 5048711DSM

LIFT SHAFT, Rear Deck, Red

$

$

Not available

28

Simplicity 5025356SM

BOLT, 1/2" X 3/8" Shoulder

$6.99

$

In Stock, Qty 6

0

29

Simplicity 5023198SM

HANDLE, Cover

$4.49

$

In Stock, only 2 left!

0

30

Simplicity 5025202X12

PIN, Cotter, 3/16 X 1-1/2
(Superseded to 5025202X12SM)

$3.49

$

Usually ships in 2-12 days

0

31

Simplicity 5048884CSM

LOCK, Deck, Orange

$

$

Not available

31

Simplicity 5048884DSM

LOCK, Deck, Red

$

$

Not available

32

Simplicity 5023202SM

SPRING WASHER, 3/8

$5.49

$

In Stock, only 1 left!

0

33

Simplicity 5020639SM

SPRING, Extension

$31.99

$

Usually ships in 2-12 days

0

34

Simplicity 5048697CSM

SHAFT, Deck Height, Orange

$

$

Not available

34

Simplicity 5048697DSM

SHAFT, Deck Height, Red

$

$

Not available

35

Simplicity 5042553SM

ROD, 3/8

$11.99

$

Usually ships in 2-12 days

0

36

Simplicity 1918196SM

HAIRPIN
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

37

Simplicity 5025328X12SM

PIN, Clevis, 1/2 X 1-1/2

$4.99

$

In Stock, only 4 left!

0

38

Simplicity 5048258SM

BUSHING, Support

$11.99

$

In Stock, only 2 left!

0

39

Simplicity 5023174SM

CLEVIS, 1/2-20

$16.99

$

Usually ships in 2-12 days

0

40

Simplicity 5025089SM

NUT, Hex Jam, 1/2-20

$3.99

$

In Stock, Qty 18

0

41

Simplicity 5049173SM

ROD, Deck Hanger

$34.99

$

In Stock, only 3 left!

0

42

Simplicity 5023241SM

SPLIT COLLAR, 1/2"

$16.99

$

In Stock, only 1 left!

0

43

Simplicity 5023241SM

SPLIT COLLAR, 1/2"

$16.99

$

In Stock, only 1 left!

0

44

Simplicity 5048902CSM

DECK STABILIZER, Orange

$49.99

$

In Stock, only 2 left!

0

44

Simplicity 5048902DSM

DECK STABILIZER, Red

$

$

Not available

45

Simplicity 5048755SM

CONNECTING ROD, Roller (44" DECK)

$17.99

$

Usually ships in 2-12 days

0

45

Simplicity 5048691SM

CONNECTING ROD, Roller (50" DECK)

$17.99

$

Usually ships in 2-12 days

0

46

Simplicity 5023174SM

CLEVIS, 1/2-20

$16.99

$

Usually ships in 2-12 days

0

47

Simplicity 5022673SM

BUMPER, Rubber, 1/4-20

$18.99

$

In Stock, only 1 left!

0

48

Simplicity 5025328X12SM

PIN, Clevis, 1/2 X 1-1/2

$4.99

$

In Stock, only 4 left!

0

49

Simplicity 1918196SM

HAIRPIN
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

50

Simplicity 5025089SM

NUT, Hex Jam, 1/2-20

$3.99

$

In Stock, Qty 18

0

51

Simplicity 5046092SM

SPACER, .76 X 1.00 X .50

$5.99

$

In Stock, only 1 left!

0

52

Simplicity 5048335SM

SPACER, .76 X 1.00 X 1.00

$7.99

$

Usually ships in 2-12 days

0
