1694454 - Simplicity Consumer Zero-Turn Mower, 18hp Engine Group - PTO - 18HP Kohler (FI0013) Parts Diagram

Consumer Zero-Turn Mower, 18hp

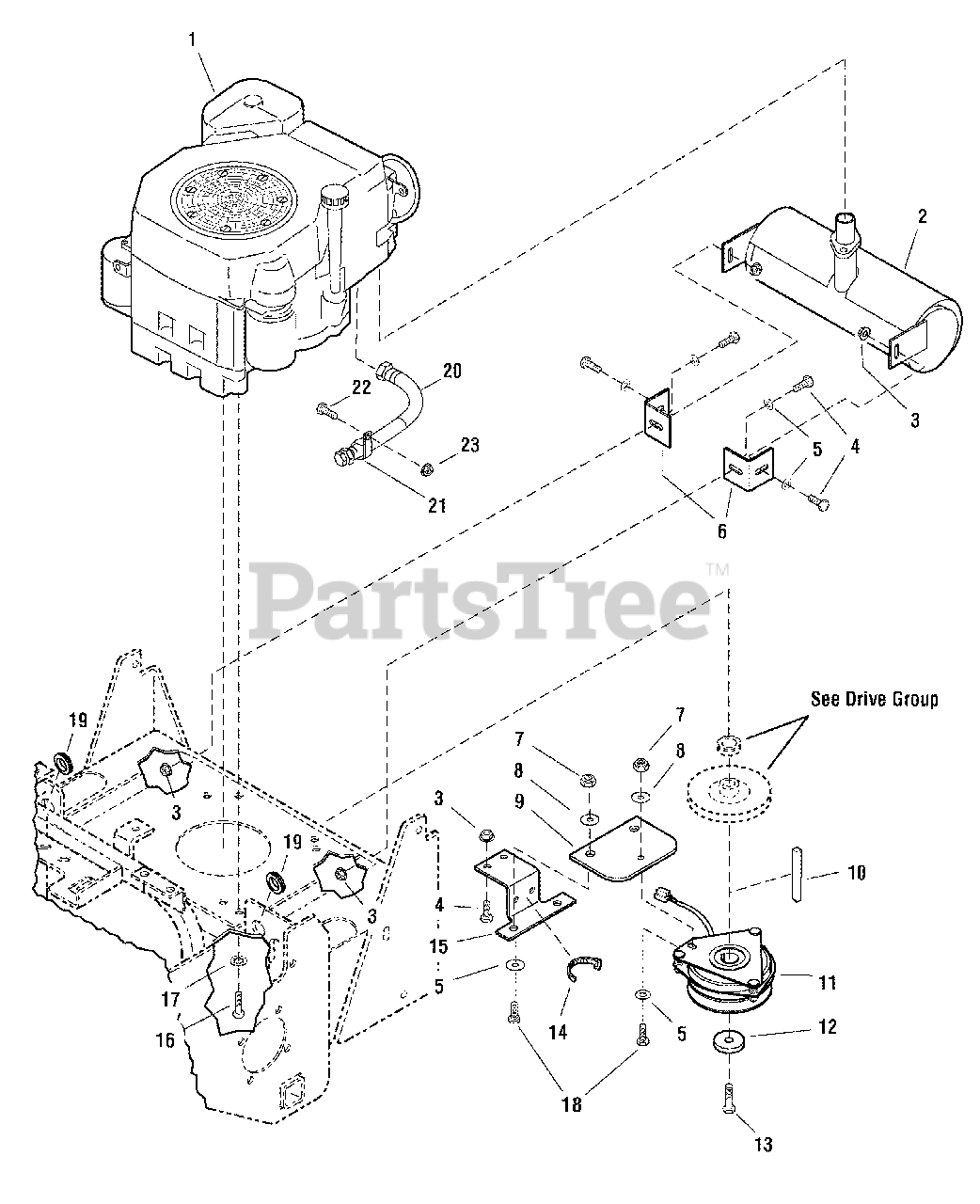

Engine Group - PTO - 18HP Kohler (FI0013) Parts Diagram

  • Title

1

ENGINE, 18HP Kohler, Model CV-493S Type PS-27523

$

$

Not available

2

Simplicity 5023186SM

MUFFLER

$142.99

$

Usually ships in 2-12 days

0

3

Simplicity 5025139SM

NUT, Hex Serrated Flange, 5/16-18

$3.49

$

In Stock, Qty 12

0

4

Simplicity 5025011X6SM

CAPSCREW, Hex Head, 5/16-18 X 3/4

$3.99

$

In Stock, only 4 left!

0

5

Simplicity 5025155SM

WASHER, SAE, 5/16
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

6

Simplicity 5048262CSM

BRACKET, Muffler Support, Orange

$5.49

$

Usually ships in 2-12 days

0

6

Simplicity 5048262DSM

BRACKET, Muffler Support, Red

$

$

Not available

7

Simplicity 5025057SM

NUT, Hex Nylon Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

8

Simplicity 5044617009

WASHER, Clutch Anchor, 5/16
(Superseded to 5025305SM)

$3.99

$

In Stock, only 2 left!

0

9

Simplicity 5043636SM

PAD, Clutch Anchor

$11.99

$

Usually ships in 2-12 days

0

10

Simplicity 5050407X18

KEY, 1/4 Square X 2-1/4
(Superseded to 5050407X18SM)

$4.49

$

Usually ships in 2-12 days

0

11

Simplicity 5023100SM

CLUTCH, Electric

$535.99

$

Usually ships in 2-12 days

0

12

Simplicity 5042132SM

SPACER, .45 X 1.62 X .37
(Superseded to 5102965YP)

$23.99

$

Usually ships in 2-12 days

0

13

Simplicity 5103300SM

BOLT, CRANKSHAFT, 7/16-20 X 3-1/4"
(Superseded to 5103300YP)

$5.99

$

In Stock, only 1 left!

0

14

Simplicity 5021030SM

TIE WRAP

$2.99

$

In Stock, only 3 left!

0

15

Simplicity 5048226CSM

CLUTCH ANCHOR, Orange

$

$

Not available

15

Simplicity 5048226DSM

CLUTCH ANCHOR, Red

$

$

Not available

16

Simplicity 5025353SM

BOLT, M8-1.25 X 30 MM

$

$

Not available

17

Simplicity 5025188SM

WASHER, 5/16 Internal Tooth Lock

$3.99

$

In Stock, only 1 left!

0

18

Simplicity 5025011X8SM

CAPSCREW, Hex Head, 5/16-18 X 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

19

Simplicity 5023236SM

GROMMET, 3/4"

$2.99

$

Usually ships in 2-12 days

0

20

Simplicity 5048681SM

HOSE, Oil Drain

$18.99

$

Usually ships in 2-12 days

0

21

Simplicity 5021500SM

CLAMP, Vinyl Insulated

$3.99

$

Usually ships in 2-12 days

0

22

Simplicity 5025010X6SM

BOLT, 1/4-20 x 3/4

$3.99

$

In Stock, Qty 20+

0

23

Simplicity 5025126SM

NUT, 1/4-20 Hex, Serrated Flange
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0
