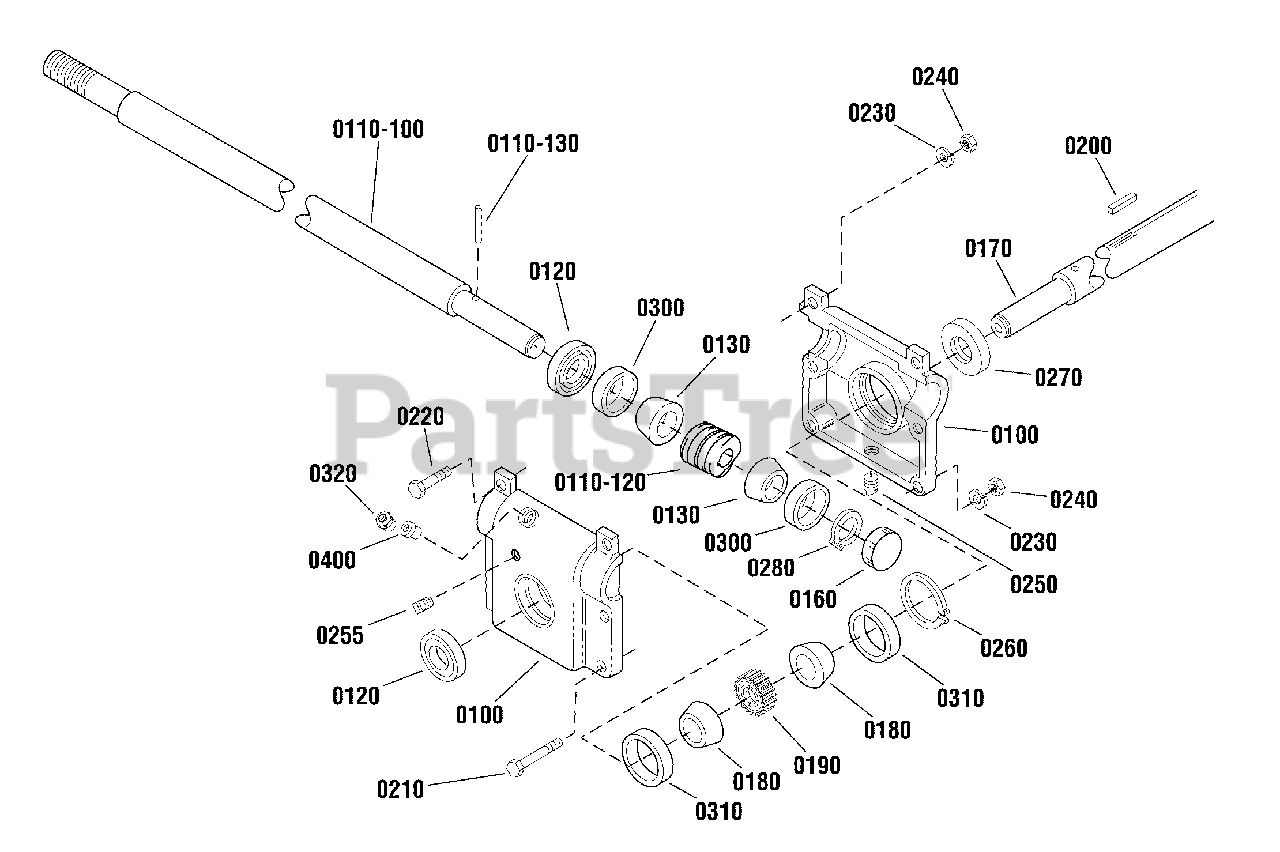

1694404 - Snapper 47" Snow Thrower Attachment Auger Gearbox & Shaft Parts Diagram

47" Snow Thrower Attachment

Auger Gearbox & Shaft Parts Diagram

  • Title

0100

Snapper 1709663SM

CASE, Gearbox (2-halves)

$672.99

$

Usually ships in 2-12 days

0

0110-100

Snapper 1721781SM

SHAFT, Input

$170.99

$

Usually ships in 2-12 days

0

0110-120

Snapper 1709667SM

WORM

$268.99

$

Usually ships in 2-12 days

0

0110-130

Snapper 1720368SM

PIN, Dowel, 1/4 x 1-1/8

$9.49

$

In Stock, only 1 left!

0

0120

Snapper 1709665SM

SEAL, Oil 1 x 1 /1/2

$24.99

$

Usually ships in 2-12 days

0

0130

Snapper 1709666SM

BEARING, Roller

$84.99

$

Usually ships in 2-12 days

0

0160

Snapper 1709668SM

PLUG

$9.99

$

Usually ships in 2-12 days

0

0170

Snapper 1709669SM

SHAFT, Output 46" Long

$176.99

$

Usually ships in 2-12 days

0

0180

Snapper 1709670SM

BEARING, Roller

$50.99

$

Usually ships in 2-12 days

0

0190

Snapper 1709671SM

GEAR, Worm

$225.99

$

Usually ships in 2-12 days

0

0200

Snapper 1725611SM

KEY, 1/4 x 1/4 x 51/64

$7.99

$

In Stock, only 1 left!

0

0210

Snapper 1921719SM

CAPSCREW, Hex Head, 5/16-18 x 2-1/2
(Superseded to 703868)

$4.99

$

In Stock, only 4 left!

0

0220

Snapper 1921977SM

CAPSCREW, Hex Head, 5/16-18 x 1 1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 10

0

0230

Snapper 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0240

Snapper 1917372SM

NUT 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

0250

Snapper 1720487SM

PLUG
(Superseded to 2801652SM)

$4.49

$

Usually ships in 2-12 days

0

0255

Snapper 1668971SM

PLUG, Pipe Tapered

$4.49

$

Usually ships in 2-12 days

0

0260

Snapper 1709672SM

RING, Retaining

$7.99

$

Usually ships in 2-12 days

0

0270

Snapper 1709673SM

SEAL, Oil, 1.0 ID x 2.0 OD

$38.99

$

Usually ships in 2-12 days

0

0280

Snapper 1709674SM

RING, Retaining

$3.99

$

Usually ships in 2-12 days

0

0300

Snapper 1709675SM

RACE, Bearing

$28.99

$

Usually ships in 2-12 days

0

0310

Snapper 1709676SM

RACE, Bearing

$34.99

$

Usually ships in 2-12 days

0

0320

Snapper 1709635SM

VENT, Relief

$26.99

$

Usually ships in 2-12 days

0

0400

Snapper 1720489SM

BUSHING, .25- 1/8

$8.49

$

Usually ships in 2-12 days

0
