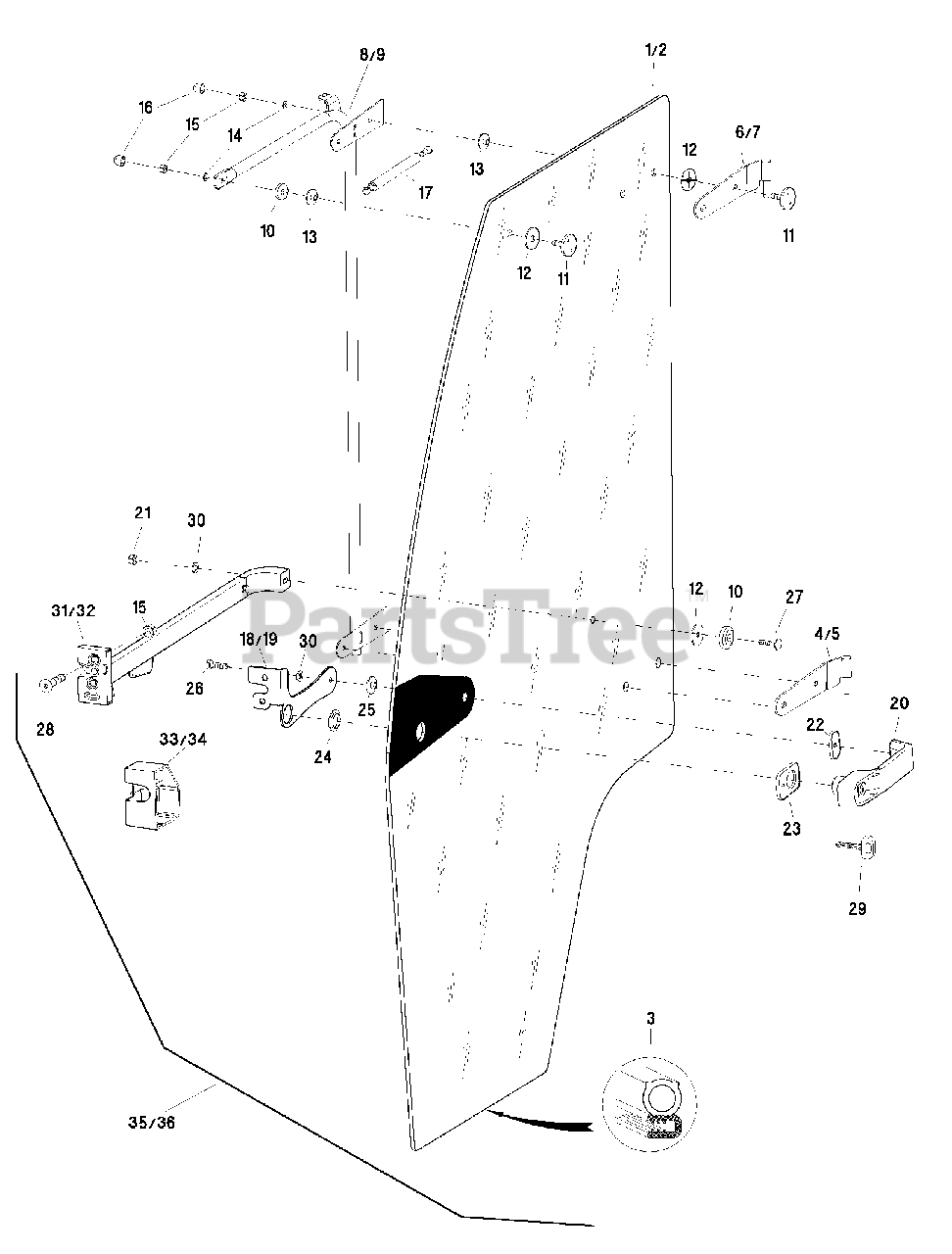

1694401 - Simplicity Deluxe Hard Snow Cab Glass Door Group (4281gdg) Parts Diagram

Deluxe Hard Snow Cab

Glass Door Group (4281gdg) Parts Diagram

  • Title

1

Door window glass left

$

$

Not available

2

Door window glass right

$

$

Not available

3

Simplicity 1721325SM

Sealing tube profile

$

$

Not available

4

Door hingle bottom left

$

$

Not available

5

Door hinge bottom right

$

$

Not available

6

Door hinge top left

$

$

Not available

7

Door hinge top right

$

$

Not available

8

Door strap left

$

$

Not available

9

Door strap right

$

$

Not available

10

Simplicity 1721432SM

PVC - disk

$3.99

$

Usually ships in 2-12 days

0

11

Simplicity 1721435SM

PVC - disk with screw M8x30

$3.99

$

Usually ships in 2-12 days

0

12

Simplicity 1721427SM

Rubber washer

$3.49

$

Usually ships in 2-12 days

0

13

Simplicity 1721428SM

Rubber washer with neck

$3.49

$

Usually ships in 2-12 days

0

14

Simplicity 1732656SM

Shim disk M8

$2.99

$

Usually ships in 2-12 days

0

15

Simplicity 1732648SM

Stop nut M8

$2.99

$

Usually ships in 2-12 days

0

16

Simplicity 1721402SM

Cover cap dm8

$3.49

$

Usually ships in 2-12 days

0

17

Simplicity 1721376SM

Pneumatic spring 320mm300N w/end-damp

$147.99

$

Usually ships in 2-12 days

0

18

Simplicity 1721374SM

Lock plate for complete glass door left

$50.99

$

Usually ships in 2-12 days

0

19

Simplicity 1721375SM

Lock plate for complete glass door right

$17.99

$

Usually ships in 2-12 days

0

20

Simplicity 1721377SM

Door handle with lockable latch

$148.99

$

Usually ships in 2-12 days

0

21

Simplicity 1732647SM

Stop nut M6

$4.49

$

Usually ships in 2-12 days

0

22

Simplicity 1721378SM

Rubber shim medium

$2.99

$

Usually ships in 2-12 days

0

23

Simplicity 1721379SM

Rubber shim large

$2.99

$

Usually ships in 2-12 days

0

24

Simplicity 1721380SM

Rubber washer with neck large

$2.49

$

Usually ships in 2-12 days

0

25

Simplicity 1721381SM

Rubber washer with neck small

$2.49

$

Usually ships in 2-12 days

0

26

Hexagon head screw M6x20

$

$

Not available

27

Hinge plate screw M6x30

$

$

Not available

28

Countersunk head screw M8x40

$

$

Not available

29

Simplicity 1721387SM

Key

$11.99

$

Usually ships in 2-12 days

0

30

Simplicity 1732655SM

Shim disk M6

$2.99

$

Usually ships in 2-12 days

0

31

Simplicity 1721382SM

Turn-catch lock left with cross arm

$153.99

$

Usually ships in 2-12 days

0

32

Simplicity 1721384SM

Turn-catch lock right with cross arm

$136.99

$

Usually ships in 2-12 days

0

33

Simplicity 1721383SM

Lock cover left

$13.99

$

Usually ships in 2-12 days

0

34

Simplicity 1721385SM

Lock cover right

$15.99

$

Usually ships in 2-12 days

0

35

Simplicity 1732693SM

Door left complete (Includes all ref. nos. except ref. nos. 2, 5, 7, 9, 19, 32 & 34)

$

$

Not available

36

Simplicity 1732694SM

Door right complete (Includes all ref. nos. except ref. nos. 1, 4, 6, 8, 18, 31 & 33)

$

$

Not available
