1694401 - Simplicity Deluxe Hard Snow Cab Front Windshield Group (4281fwg) Parts Diagram

Deluxe Hard Snow Cab

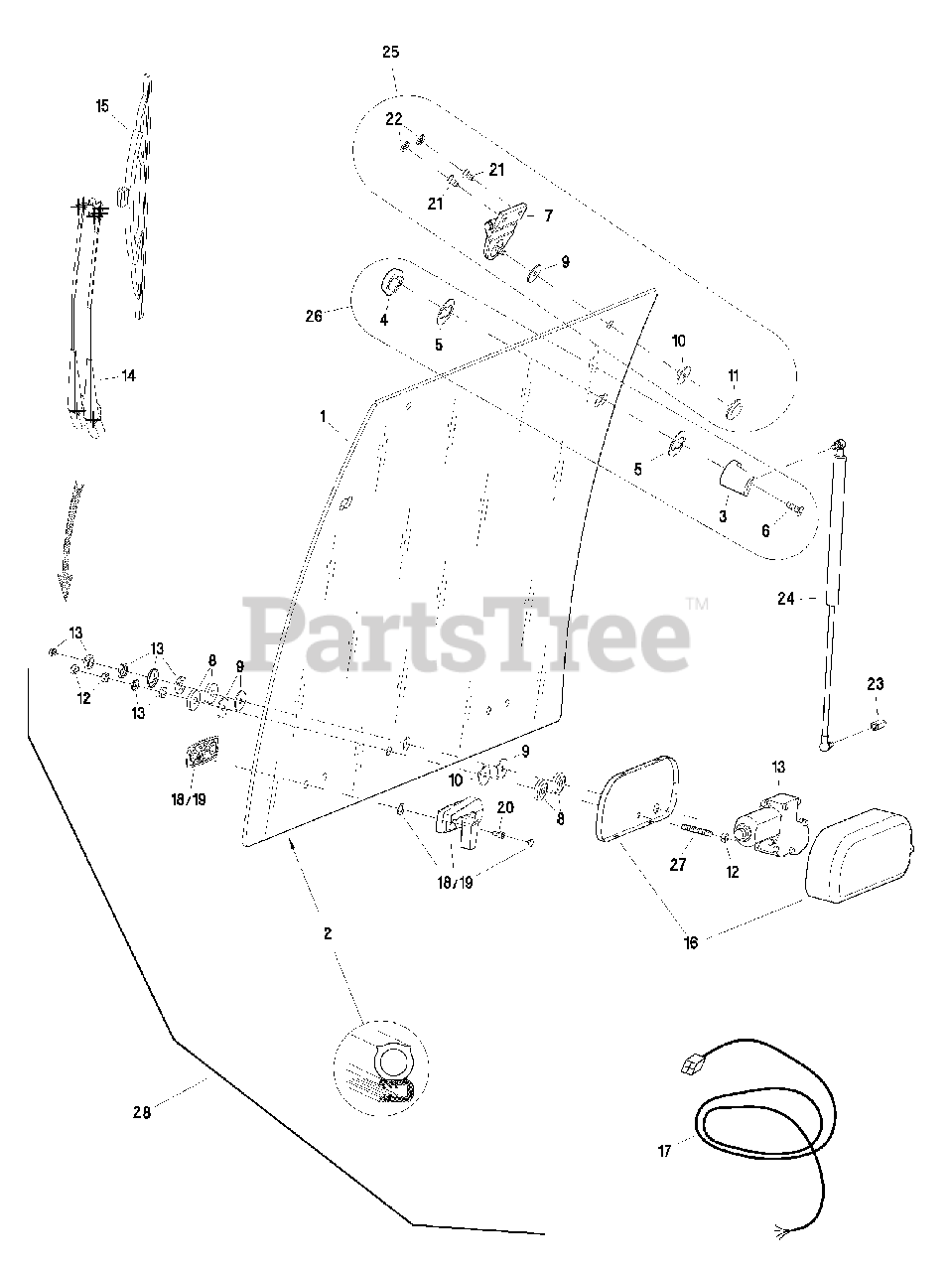

Front Windshield Group (4281fwg) Parts Diagram

  • Title

1

Glass WS

$

$

Not available

2

Simplicity 1721325SM

Sealing tube profile

$

$

Not available

3

Pneumatic spring mounting inside

$

$

Not available

4

Simplicity 1721335SM

Pneumatic spring mounting outside

$16.99

$

Usually ships in 2-12 days

0

5

Simplicity 1721431SM

Rubber washer

$

$

Not available

6

Countersunk head screw M8x25

$

$

Not available

7

Simplicity 1721336SM

PVC hinge complete

$61.99

$

Usually ships in 2-12 days

0

8

Simplicity 1721432SM

PVC-disk

$3.99

$

Usually ships in 2-12 days

0

9

Simplicity 1721427SM

Rubber washer

$3.49

$

Usually ships in 2-12 days

0

10

Simplicity 1721428SM

Rubber washer with neck

$3.49

$

Usually ships in 2-12 days

0

11

Simplicity 1721429SM

PA - disk M8

$7.99

$

Usually ships in 2-12 days

0

12

Simplicity 1732648SM

Nut M8

$2.99

$

Usually ships in 2-12 days

0

13

Simplicity 1732721SM

Wiper motor 85 degrees / 12V

$626.99

$

Usually ships in 2-12 days

0

14

Simplicity 1732719SM

Wiper arm 400-500mm lg.

$164.99

$

Usually ships in 2-12 days

0

15

Simplicity 1732718SM

Wiper blade 450mm lg.

$45.99

$

Usually ships in 2-12 days

0

16

Simplicity 1732720SM

Cover wiper motor

$90.99

$

Usually ships in 2-12 days

0

17

Simplicity 1732702SM

Cable harness wiper motor

$159.99

$

Usually ships in 2-12 days

0

18

Simplicity 1732705SM

Locking device handle left

$80.99

$

Usually ships in 2-12 days

0

19

Simplicity 1732706SM

Locking device handle right

$47.99

$

Usually ships in 2-12 days

0

20

Socket head screw (hexagon socket)M6x12

$

$

Not available

21

Countersunk head screw M8x35

$

$

Not available

22

Simplicity 1721433SM

Cover cap countersunk head screw

$3.49

$

Usually ships in 2-12 days

0

23

Simplicity 1721313SM

Pneumatic spring sleeve l=22mm 2x M8

$

$

Not available

24

Simplicity 1732598SM

Pneumatic spring 320mm 150N

$158.99

$

Usually ships in 2-12 days

0

25

Simplicity 1721348SM

Set of hinges

$32.99

$

Usually ships in 2-12 days

0

26

Simplicity 1721349SM

Set of pneumatic spring mounting

$23.99

$

Usually ships in 2-12 days

0

27

Simplicity 1732701SM

M8 threaded rod l=75mm

$45.99

$

Usually ships in 2-12 days

0

28

Simplicity 1732697SM

Windshield complete (Includes all ref. nos. except ref. nos. 21 & 22)

$2621.99

$

Usually ships in 2-12 days

0
