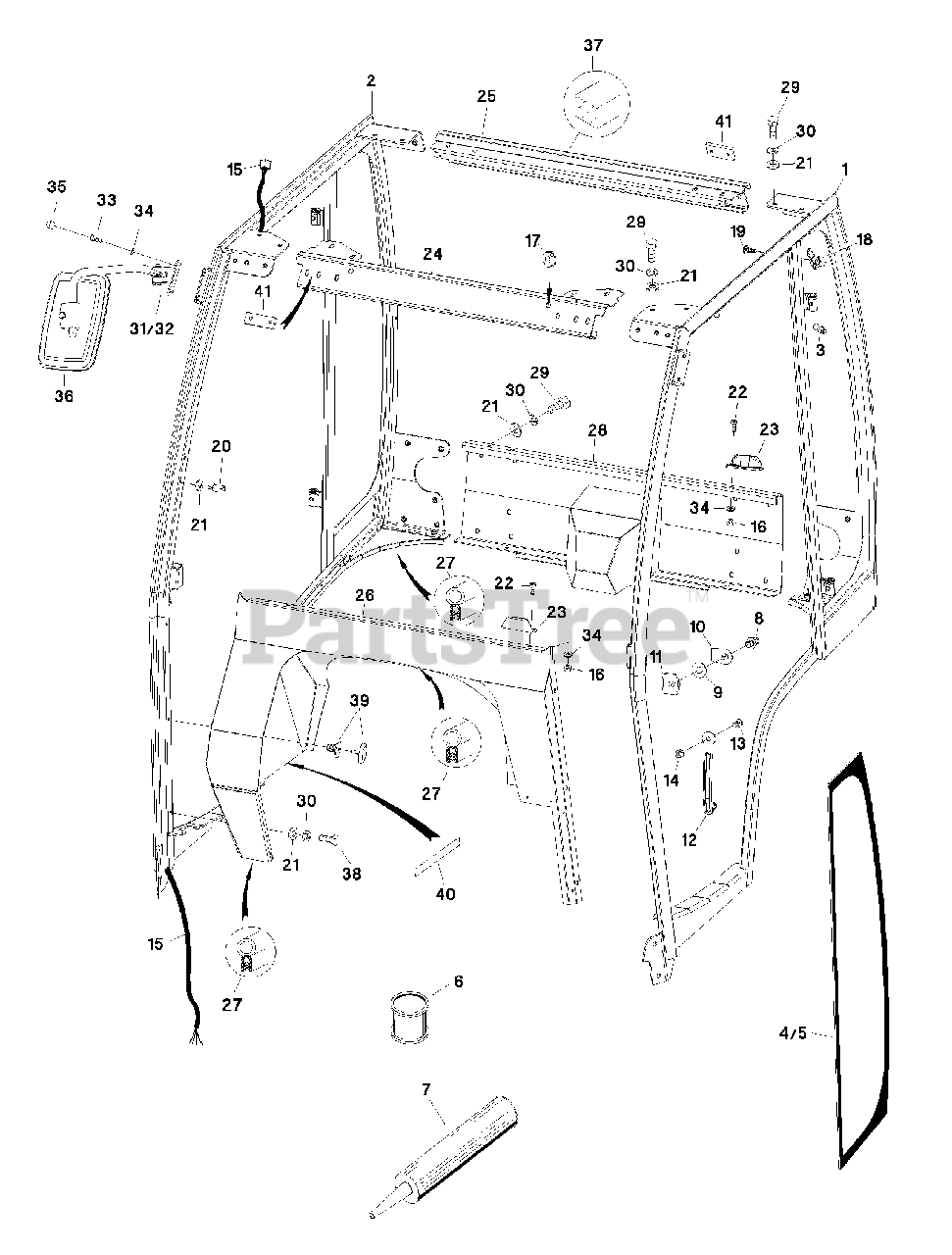

1694401 - Simplicity Deluxe Hard Snow Cab Frame Group (4281fg) Parts Diagram

Deluxe Hard Snow Cab

Frame Group (4281fg) Parts Diagram

  • Title

1

Simplicity 1732671SM

Side frame left

$

$

Not available

2

Simplicity 1732672SM

Side frame right

$

$

Not available

3

Simplicity 1732662SM

Impact nipple H1 d=6mm

$

$

Not available

4

Simplicity 1732703SM

Glass SH left

$

$

Not available

5

Simplicity 1732689SM

Glass SH right

$

$

Not available

6

Activator 30ml

$

$

Not available

7

Adhesive for panel (Sikadrive)

$

$

Not available

8

Simplicity 1721434SM

Locking pin 13mm

$43.99

$

Usually ships in 2-12 days

0

9

Simplicity 1732597SM

Washer

$

$

Not available

10

Simplicity 1732696SM

Slide-off strap

$

$

Not available

11

Simplicity 1732695SM

Threaded plate

$

$

Not available

12

Simplicity 1721391SM

Door push-out

$

$

Not available

13

Simplicity 1732640SM

Countersunk head screw M8x20

$

$

Not available

14

Simplicity 1732648SM

Stop nut M8

$2.99

$

Usually ships in 2-12 days

0

15

Simplicity 1732683SM

Cable loom

$353.99

$

Usually ships in 2-12 days

0

16

Simplicity 1732647SM

Stop nut M6

$4.49

$

Usually ships in 2-12 days

0

17

Simplicity 1732664SM

Blind plug 18mm

$

$

Not available

18

Simplicity 1732700SM

Coat hook

$

$

Not available

19

Simplicity 1732642SM

Sheet metal screw 3.9x13

$

$

Not available

20

Simplicity 1721313SM

Pneumatic spring sleeve l=22mm / 2x M8

$

$

Not available

21

Simplicity 1732656SM

Shim disk M8

$

$

Not available

22

Simplicity 1732644SM

Oval head screw M6x16 cross-recessed

$4.49

$

Usually ships in 2-12 days

0

23

Simplicity 1732710SM

Locking device

$

$

Not available

24

Simplicity 1732669SM

Cross-strut front above

$319.99

$

Usually ships in 2-12 days

0

25

Simplicity 1732670SM

Cross-strut rear above

$

$

Not available

26

Simplicity 1732673SM

Front panel

$

$

Not available

27

Simplicity 1721316SM

Tube profile

$

$

Not available

28

Simplicity 1732674SM

Rear panel

$940.99

$

Usually ships in 2-12 days

0

29

Simplicity 1732637SM

Hexagon head screw M8x20

$

$

Not available

30

Simplicity 1732661SM

Retainer ring

$

$

Not available

31

Simplicity 1732699SM

Mirror left complete 602001 (Includes Ref. No. 36)

$156.99

$

Usually ships in 2-12 days

0

32

Simplicity 1732698SM

Mirror left complete 602001 (Includes Ref. No. 36)

$

$

Not available

33

Simplicity 1732635SM

Hexagon head screw M6x16

$3.49

$

Usually ships in 2-12 days

0

34

Simplicity 1732655SM

Shim disk M6

$

$

Not available

35

Simplicity 1732717SM

Cover cap d=6mm

$

$

Not available

36

Mirror

$

$

Not available

37

Simplicity 1721323SM

Compriband A20/15

$

$

Not available

38

Simplicity 1732636SM

Hexagon head screw M8x12

$

$

Not available

39

Simplicity 1732712SM

Expansion rivet

$

$

Not available

40

Simplicity 1732665SM

Velour band

$8.99

$

Usually ships in 2-12 days

0

41

Simplicity 1732711SM

Distance plate hinge t=8mm

$

$

Not available

--

Simplicity 1694401SM

Snow Cab

$

$

Not available
