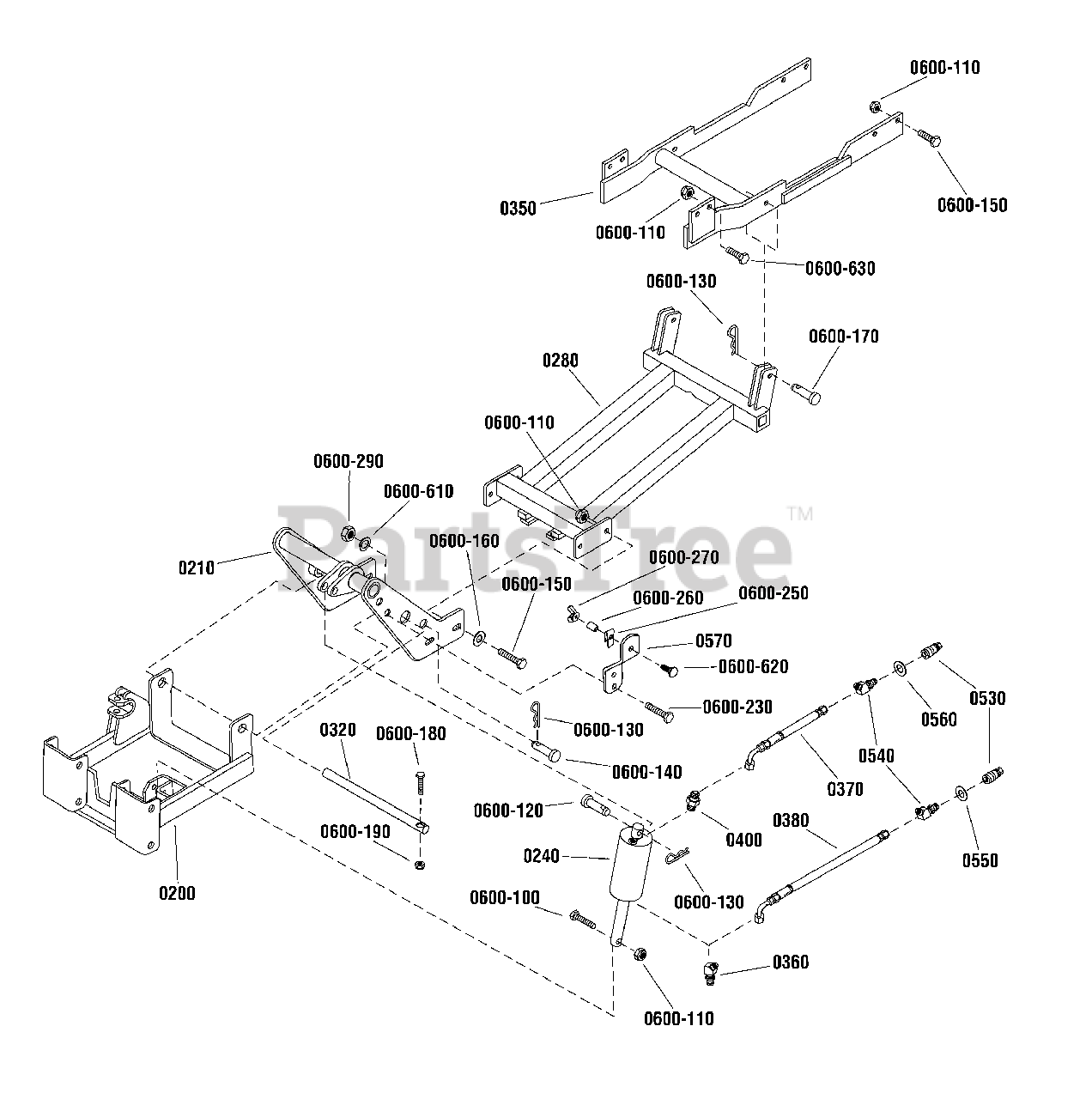

1694395 - Snapper Hitch for Sub Frame Front Attachments Frame Group Parts Diagram

Hitch for Sub Frame Front Attachments

Frame Group Parts Diagram

0200

Snapper 1724980A

PUSH BAR ASSEMBLY, Front
(Superseded to 1724980ASM)

$626.99

$

Usually ships in 2-12 days

0

0210

Snapper 1725046A

HITCH ASSEMBLY, Front

$

$

Not available

0240

Snapper 1716944

CYLINDER ASSEMBLY
(Superseded to 1716944SM)

$555.99

$

Usually ships in 2-12 days

0

0280

Snapper 1725045A

HITCH ASSEMBLY, Rear

$

$

Not available

0320

Snapper 1725048

SHAFT, 1 x 14
(Superseded to 1725048SM)

$58.99

$

Usually ships in 2-12 days

0

0350

Snapper 1725002A

SUB FRAME ASSEMBLY, Front
(Superseded to 1725002ASM)

$622.99

$

Usually ships in 2-12 days

0

0360

Snapper 2172320

FITTING, Elbow 45 Degree
(Superseded to 2172320SM)

$22.99

$

Usually ships in 2-12 days

0

0370

Snapper 1725319

HOSE ASSEMBLY, Hydraulic, 22" Long
(Superseded to 1725319SM)

$71.99

$

Usually ships in 2-12 days

0

0380

Snapper 1725318

HOSE ASSEMBLY, Hydraulic, 32" Long
(Superseded to 1725318SM)

$100.99

$

Usually ships in 2-12 days

0

0400

Snapper 2819171

FITTING, Tube, Male
(Superseded to 2819171SM)

$5.99

$

In Stock, only 2 left!

0

0530

Snapper 2173359

NOSE PIECE ASSEMBLY
(Superseded to 2173359SM)

$43.99

$

Usually ships in 2-12 days

0

0540

Snapper 1725520

FITTING, Swivel, 1/4-18
(Superseded to 1725520SM)

$14.99

$

Usually ships in 2-12 days

0

0550

Snapper 1726318

* WASHER, Nylon, Blue
(Superseded to 1726318SM)

$5.99

$

Usually ships in 2-12 days

0

0560

Snapper 1726320

* WASHER, Nylon, Red
(Superseded to 1726320SM)

$4.49

$

Usually ships in 2-12 days

0

0570

Snapper 1726372A

SUPPORT, Hydraulic Hose
(Superseded to 1726372ASM)

$21.99

$

Usually ships in 2-12 days

0

--

Snapper 1660815

HARDWARE BAG

Note: (Not a serviceable part. Order parts individually)

$

$

Currently unavailable

0600-100

Snapper 1960462

BOLT, 1/2 x 2-1/2
(Superseded to 703449)

$4.99

$

Usually ships in 2-12 days

0

0600-110

Snapper 1960355

NUT, Hex Lock ESNA Heavy 1/2-13
(Superseded to 703567)

$4.49

$

In Stock, only 2 left!

0

0600-120

Snapper 1722819

PIN, Flat Head Drilled, 1/2 x 2-1/8 Long
(Superseded to 1722819SM)

$6.99

$

In Stock, only 2 left!

0

0600-130

Snapper 1960033

Clip, Hair Pin
(Superseded to 1960033SM)

$3.49

$

In Stock, Qty 20+

0

0600-140

Snapper 1725049

PIN, Clevis, 5/8 x 2-1/2
(Superseded to 1725049SM)

$8.99

$

Usually ships in 2-12 days

0

0600-150

Snapper 1920328

CAPSCREW, Hex Head, 1/2-13 x 1-1/2
(Superseded to 703571)

$4.49

$

In Stock, only 2 left!

0

0600-160

Snapper 1960170

Flatwasher, 1/2
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

0600-170

Snapper 1960038

PIN, Yoke, 5/8 x 1-13/16
(Superseded to 1960038SM)

$

$

Not available

0600-180

Snapper 1921963

CAPSCREW, Hex Flange Head, 1/4-20 x 2
(Superseded to 703163)

$3.49

$

Usually ships in 2-12 days

0

0600-190

Snapper 1920397

NUT, Hex Lock, ESNA Light, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0600-230

Snapper 1921333

BOLT, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

0600-250

Snapper 1676527

CLAMP, Wire
(Superseded to 1676527SM)

$4.49

$

Usually ships in 2-12 days

0

0600-260

Snapper 1710703

SPACER-0.328IDX0.499ODX0.625LG PM
(Superseded to 1710703SM)

$6.49

$

In Stock, Qty 20+

0

0600-270

Snapper 2860293

NUT, Wing, 1/4-20
(Superseded to 2860293SM)

$5.99

$

Usually ships in 2-12 days

0

0600-290

Snapper 1917372

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

0600-610

Snapper 1917356

Lockwasher, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0600-620

Snapper 1931320

BOLT, Carriage, Short Neck, 1/4-20 x 1-1/4, G5
(Superseded to 703178)

$3.99

$

In Stock, only 1 left!

0

0600-630

Snapper 703817

CAPSCREW, 1/2 13X2 GR5

$5.99

$

Usually ships in 2-12 days

0
