1694339 - Simplicity 40" Mower Deck 40" Mower Deck - Housing, Arbors & Blades Parts Diagram

40" Mower Deck

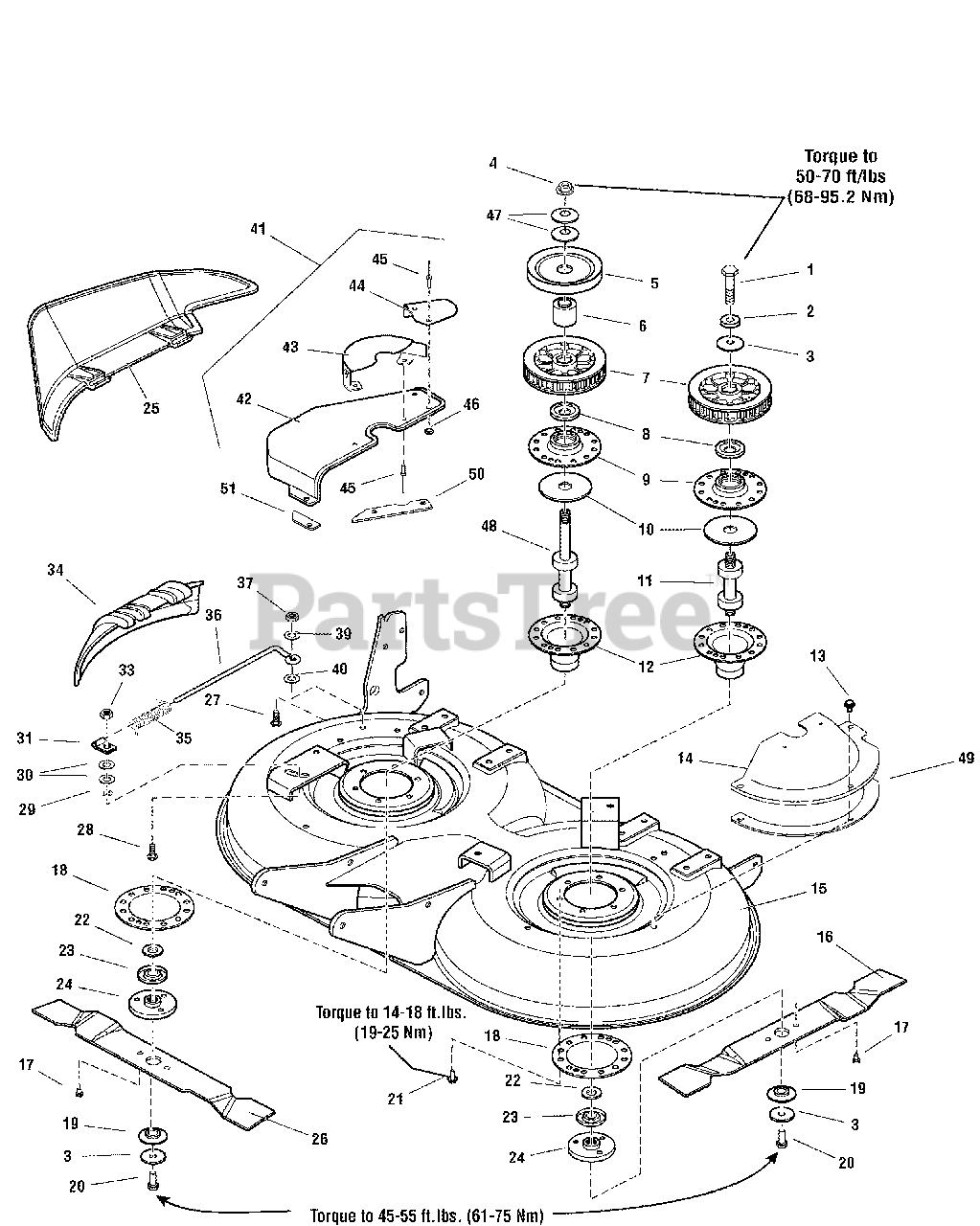

40" Mower Deck - Housing, Arbors & Blades Parts Diagram

  • Title

1

Simplicity 1930584

CAPSCREW, Hex Head, 7/16-14 x 2-3/4 G8
(Superseded to 1930584SM)

$7.99

$

Usually ships in 2-12 days

0

2

Simplicity 1933263

WASHER, 7/16
(Superseded to 703990)

$6.99

$

In Stock, Qty 20+

0

3

Simplicity 1656916

WASHER, Spring
(Superseded to 1656916SM)

$7.49

$

In Stock, Qty 20+

0

4

Simplicity 1714419

NUT, Hex Flange, 9/16-18
(Superseded to 1714419SM)

$5.99

$

In Stock, Qty 20+

0

5

Simplicity 1713091

PULLEY
(Superseded to 1713091SM)

$23.99

$

In Stock, only 1 left!

0

5

Simplicity 1732123

PULLEY, Drive
(Superseded to 1732123SM)

$35.99

$

Usually ships in 2-12 days

0

6

Simplicity 1719870

HUB
(Superseded to 1719870SM)

$48.99

$

Usually ships in 2-12 days

0

7

Simplicity 1687229

SPROCKET & FLANGE ASSEMBLY, w/Screws, 38 Tooth
(Superseded to 1732590SM)

$87.99

$

In Stock, only 1 left!

0

8

Simplicity 1657969

SHIELD, Bearing Upper, Arbor
(Superseded to 1657969SM)

$7.49

$

In Stock, Qty 20+

0

9

Simplicity 1655729A

HOUSING, Arbor Top
(Superseded to 1655729ASM)

$14.99

$

Usually ships in 2-12 days

0

10

Simplicity 1707335

GASKET, Foam Poly
(Superseded to 1707335SM)

$5.99

$

In Stock, Qty 20+

0

11

Simplicity 1722396

ARBOR SHAFT & BEARINGS ASSEMBLY
(Superseded to 1722396SM)

$263.99

$

Usually ships in 2-12 days

0

12

Simplicity 1703273A

HOUSING, Arbor Bottom with Lube Fitting
(Superseded to 1703273ASM)

$38.99

$

In Stock, Qty 20+

0

13

Simplicity 1664847SM

CAPSCREW, Taptite Hex Washer Head, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

14

Simplicity 1724601

COVER, Arbor, LH
(Superseded to 1732301SM)

$29.99

$

Usually ships in 2-12 days

0

15

Simplicity 1686978

HOUSING ASSEMBLY, 40", Orange
(Superseded to 1686978SM)

$471.99

$

Usually ships in 2-12 days

0

15

Simplicity 1687175

HOUSING ASSEMBLY, 40", Red
(Superseded to 1687175SM)

$523.99

$

Usually ships in 2-12 days

0

16

Simplicity 1719624A

BLADE, Mower, LH
(Superseded to 1719624ASM)

$31.99

$

In Stock, only 1 left!

0

17

Simplicity 1722258

PIN, Blade
(Superseded to 1722258SM)

$8.49

$

In Stock, only 2 left!

0

18

Simplicity 1677274A

ADAPTOR, Arbor
(Superseded to 1677274ASM)

$20.99

$

Usually ships in 2-12 days

0

19

Simplicity 1722257

WASHER, Spline
(Superseded to 1722257SM)

$59.99

$

Usually ships in 2-12 days

0

20

Simplicity 2827120

CAPSCREW, Hex Head, 7/16-14 x 2-1/4 G8
(Superseded to 2827120SM)

$

$

Not available

21

Simplicity 1960373

CAPSCREW, Taptite Hex Washer Head, 5/16-18 x 1
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

22

Simplicity 1700230

WASHER, Shim
(Superseded to 1700230SM)

$4.99

$

In Stock, Qty 20+

0

23

Simplicity 1700229

SHIELD, Arbor Bearing, Lower
(Superseded to 1700229SM)

$10.99

$

In Stock, Qty 20+

0

24

Simplicity 1655777

ADAPTER, Blade
(Superseded to 1655777SM)

$25.99

$

In Stock, Qty 20+

0

25

Simplicity 1723453

DEFLECTOR, Discharge
(Superseded to 1723453SM)

$61.99

$

Usually ships in 2-12 days

0

26

Simplicity 1719623A

BLADE, Mower, RH
(Superseded to 1719623ASM)

$31.99

$

In Stock, only 1 left!

0

27

Simplicity 1931335

CARRIAGE BOLT, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

28

Simplicity 1931318

CARRIAGE BOLT, 1/4-20 x 7/8
(Superseded to 1931318SM)

$4.49

$

In Stock, only 2 left!

0

29

Simplicity 1960518

NUT, Push
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

30

Simplicity 1960353

WASHER, 1/4
(Superseded to 703229)

$4.49

$

In Stock, Qty 7

0

31

Simplicity 1704873

CLAMP
(Superseded to 1704873SM)

$4.49

$

In Stock, Qty 20+

0

33

Simplicity 1920397

NUT, Hex 1/4-20, ESNA
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

34

Simplicity 1719597

DOOR, Mulching, Black Plastic
(Superseded to 1719597SM)

$32.99

$

Usually ships in 2-12 days

0

35

Simplicity 1723938

SPRING, Torsion
(Superseded to 1723938SM)

$

$

Not available

36

Simplicity 1719617

ROD, Pivot
(Superseded to 1719617SM)

$10.99

$

Usually ships in 2-12 days

0

37

Simplicity 1919438

NUT, Hex 5/16-18, ESNA
(Superseded to 1919438SM)

$3.99

$

In Stock, Qty 20+

0

39

Simplicity 1919381

WASHER, 5/16
(Superseded to 1919381SM)

$4.49

$

Usually ships in 2-12 days

0

40

Simplicity 1933988

NUT, Push
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

41

Simplicity 1721155

COVER ASSEMBLY, Arbor, RH (Includes Ref. Nos. 42 thru 46)
(Superseded to 1721155SM)

$116.99

$

Usually ships in 2-12 days

0

42

Simplicity 1724600

COVER, Arbor RH
(Superseded to 1724600SM)

$

$

Not available

42

Simplicity 1732425

COVER, Arbor RH
(Superseded to 1732425SM)

$

$

Not available

43

Simplicity 1721259A

GUARD ASSEMBLY, RH
(Superseded to 1721259ASM)

$46.99

$

Usually ships in 2-12 days

0

44

Simplicity 1721132A

GUARD, Extension
(Superseded to 1721132ASM)

$17.99

$

Usually ships in 2-12 days

0

45

Simplicity 1675044

RIVIT, Pop
(Superseded to 1675044SM)

$3.99

$

In Stock, only 1 left!

0

46

Simplicity 1960096

WASHER, 3/16 x 3/4 x 1/16
(Superseded to 1960096SM)

$3.99

$

In Stock, only 2 left!

0

47

Simplicity 1713675

WASHER, Bellville
(Superseded to 1713675SM)

$4.49

$

In Stock, Qty 20+

0

48

Simplicity 1726825

ARBOR SHAFT & BEARING ASSEMBLY
(Superseded to 1726825SM)

$

$

Not available

49

Simplicity 1732960

SHIM-Cover LH 7GA 40" Mower

$

$

Not available

50

Simplicity 1732691

SHIM-Cover RH 7GA 6.5 LG 40" Mower
(Superseded to 1732691SM)

$78.99

$

Usually ships in 2-12 days

0

51

Simplicity 1732693

SHIM-Cover RH 7GA 2.8 LG 40" Mower
(Superseded to 1732693SM)

$

$

Not available
