1694313 - Simplicity Regent Lawn Tractor, 16hp Steering Group Parts Diagram

Regent Lawn Tractor, 16hp

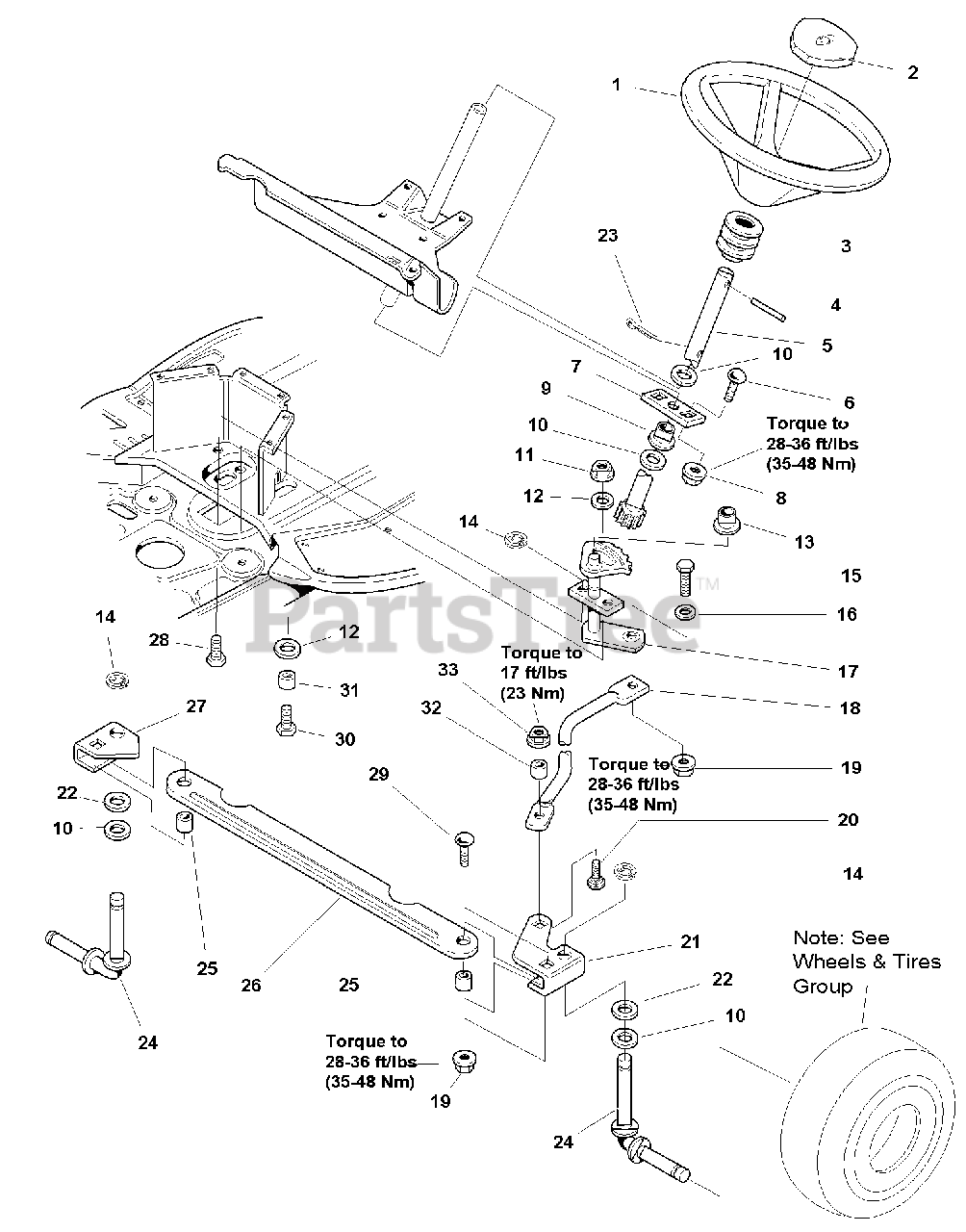

Steering Group Parts Diagram

  • Title

1

Simplicity 1722318SM

STEERING WHEEL

$110.99

$

In Stock, Qty 5

0

2

Simplicity 1722319SM

CAP, Steering Wheel, Simplicity

Note: (Decal Not Included)

$14.99

$

In Stock, only 3 left!

0

3

Simplicity 1714400SM

TUBE

$7.49

$

Usually ships in 2-12 days

0

4

Simplicity 1960540SM

PIN, Spring

$4.49

$

In Stock, Qty 11

0

5

Simplicity 1723051SM

SHAFT & PINION ASSEMBLY

$153.99

$

Usually ships in 2-12 days

0

6

Simplicity 1931350SM

CARRIAGE BOLT, 3/8-16 x 1
(Superseded to 703815)

$4.49

$

In Stock, only 4 left!

0

7

Simplicity 1703508ASM

PLATE, Mounting

$24.99

$

In Stock, Qty 6

0

8

Simplicity 1928352SM

NUT, Hex Head Whiz Lock, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, only 4 left!

0

9

Simplicity 2176440SM

BUSHING

$4.99

$

In Stock, Qty 20+

0

10

Simplicity 1960114SM

WASHER
(Superseded to 703151)

$3.49

$

In Stock, Qty 20+

0

11

Simplicity 1919438SM

NUT, Hex Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

12

Simplicity 1933468SM

WASHER

$4.49

$

Usually ships in 2-12 days

0

13

Simplicity 1666001SM

BUSHING

$6.99

$

In Stock, only 4 left!

0

14

Simplicity 1611710SM

RING, Clipring Extension

$4.49

$

In Stock, Qty 20+

0

15

Simplicity 1920415SM

CAPSCREW, Hex Head, 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

16

Simplicity 1922611SM

WASHER

$6.99

$

In Stock, only 1 left!

0

17

Simplicity 1723072ASM

STEERING GEAR ASSEMBLY

$

$

Not available

18

Simplicity 1713469SM

LINK, 19.66" Long

$20.99

$

Usually ships in 2-12 days

0

19

Simplicity 1930645SM

NUT, Hex Flange Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

20

Simplicity 1931335SM

CARRIAGE BOLT, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

21

Simplicity 1721472ASM

ARM & SPACER ASSEMBLYMY, LH Splined

$151.99

$

In Stock, only 1 left!

0

22

Simplicity 1960160SM

WASHER

$4.99

$

In Stock, Qty 11

0

23

Simplicity 1919314SM

PIN, Cotter

$3.49

$

In Stock, Qty 7

0

24

Simplicity 1721542SM

SPINDLE & CUP ASSEMBLY

$128.99

$

In Stock, only 1 left!

0

25

Simplicity 1713791SM

SPACER

$14.99

$

In Stock, only 1 left!

0

26

Simplicity 1722484A

ROD

$

$

Not available

27

Simplicity 1721473ASM

ARM & SPACER ASSEMBLY, RH

$188.99

$

Usually ships in 2-12 days

0

28

Simplicity 1664847SM

CAPSCREW, Hex Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

29

Simplicity 1960268SM

CARRIAGE BOLT, 3/8-16 x 1-1/4

$4.49

$

In Stock, Qty 10

0

30

Simplicity 1921221SM

CAPSCREW, Hex Head, 5/16-18 x 1-1/2
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

31

Simplicity 1673796SM

SPACER

$24.99

$

Usually ships in 2-12 days

0

32

Simplicity 1710437SM

SPACER

$18.99

$

Usually ships in 2-12 days

0

33

Simplicity 1935048SM

NUT, Hex Flange Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0
