1694313 - Simplicity Regent Lawn Tractor, 16hp Frame Group Parts Diagram

Regent Lawn Tractor, 16hp

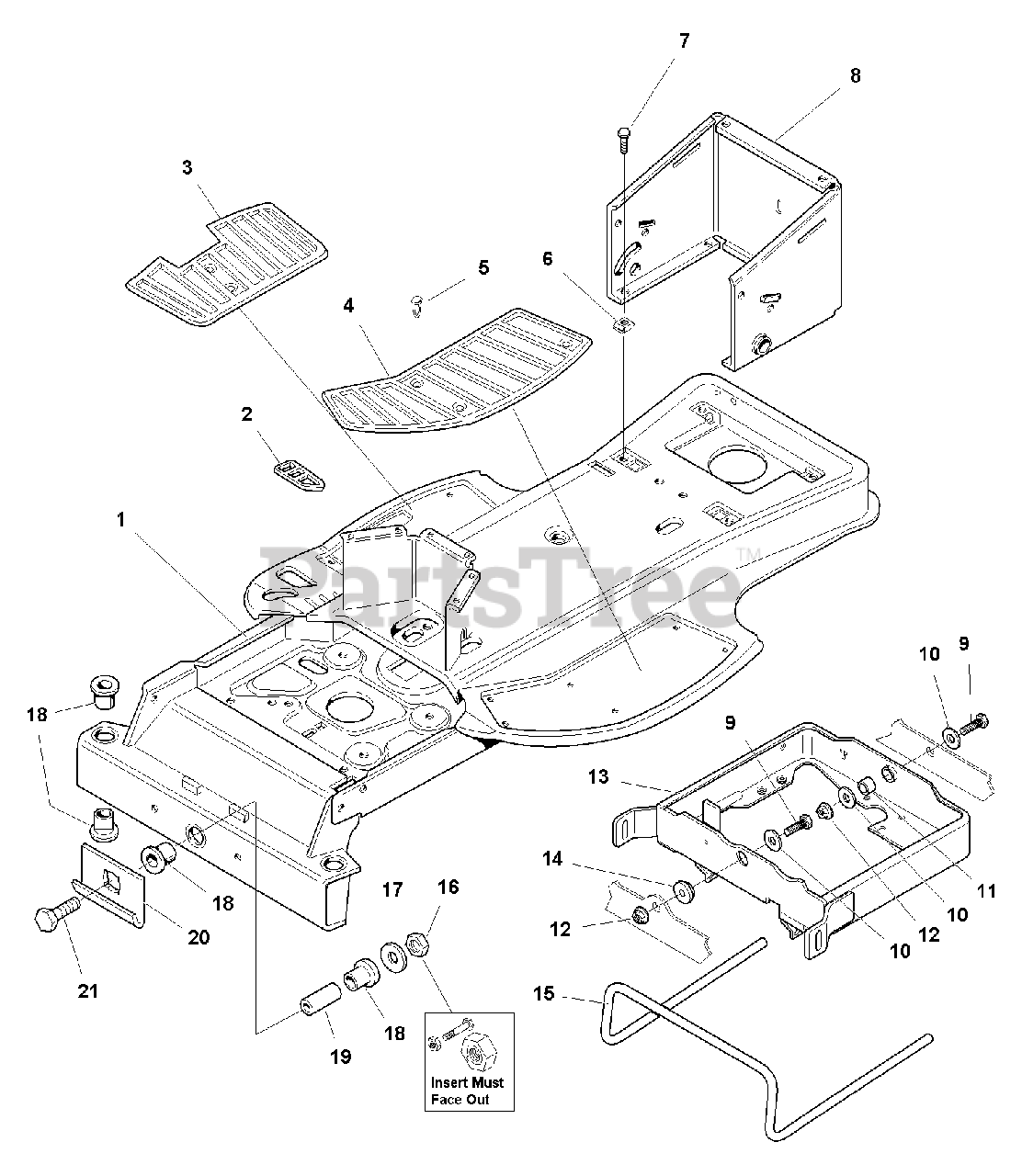

Frame Group Parts Diagram

  • Title

1

Simplicity 1724393SM

FRAME ASSEMBLY
(Superseded to 1726966ASM)

$626.99

$

Usually ships in 2-12 days

0

2

Simplicity 1715015SM

PLUG, Hole

$6.49

$

Usually ships in 2-12 days

0

3

Simplicity 1714418SM

PAD, Footrest RH

$13.99

$

Usually ships in 2-12 days

0

4

Simplicity 1714417SM

PAD, Footrest LH

$12.99

$

Usually ships in 2-12 days

0

5

Simplicity 1704351SM

FASTENER, Panel

$4.99

$

In Stock, only 4 left!

0

6

Simplicity 1935255SM

NUT, Speed 5/16-18

$3.49

$

In Stock, only 3 left!

0

7

Simplicity 1930591SM

CAPSCREW, Hex Head Flange Lock, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

8

Simplicity 1723021A

WRAPPER ASSEMBLY, Hydro

$

$

Not available

9

Simplicity 1920328SM

CAPSCREW, Hex Head, 1/2-13 x 1-1/2
(Superseded to 703571)

$4.49

$

Usually ships in 2-12 days

0

10

Simplicity 1918431SM

WASHER, 1/2
(Superseded to 704011)

$4.49

$

In Stock, Qty 11

0

11

Simplicity 1709235SM

SPACER

$9.99

$

Usually ships in 2-12 days

0

12

Simplicity 1930644SM

NUT, Hex Head, 1/2-13

$3.49

$

In Stock, Qty 6

0

13

Simplicity 1726768

CARRIER ASSEMBLY, Hydro
(Superseded to 1687591YP)

$980.99

$

Usually ships in 2-12 days

0

14

Simplicity 1717286SM

SPACER

$

$

Not available

15

Simplicity 1717424SM

BAR, Torsion

$53.99

$

Usually ships in 2-12 days

0

16

Simplicity 2860681SM

NUT, Hex Head Aluminum Insert, 3/8-16

$4.49

$

In Stock, Qty 7

0

17

Simplicity 1924356SM

WASHER, 3/8
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

18

Simplicity 2176440SM

BUSHING, 3/4, Nylon

$4.99

$

In Stock, Qty 20+

0

19

Simplicity 1719868SM

SPACER

$2.99

$

Usually ships in 2-12 days

0

20

Simplicity 1719869A

"J" HOOK, Hitch

$

$

Not available

21

Simplicity 1960614SM

CAPSCREW, Hex Head, 3/8-16 x 3, G8

$4.99

$

In Stock, only 1 left!

0
