1694298 - Simplicity 40" Mower Deck 40" Mower Deck - Housing, Arbors & Blades Parts Diagram

40" Mower Deck

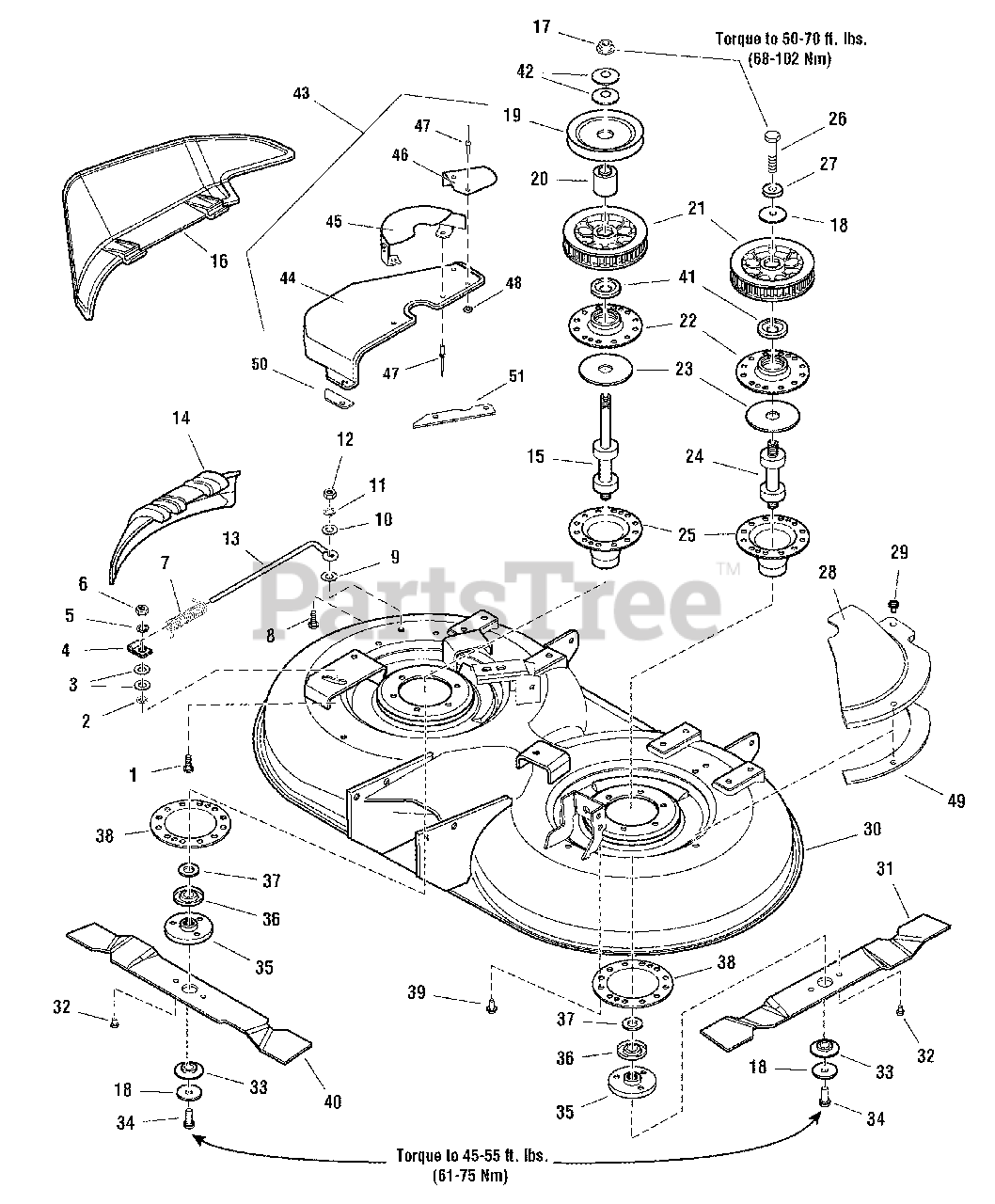

40" Mower Deck - Housing, Arbors & Blades Parts Diagram

  • Title

1

Simplicity 1931318SM

CARRIAGE BOLT,1/4-20 x 7/8, Black

$4.49

$

In Stock, only 2 left!

0

2

Simplicity 1960518SM

NUT, Push, 1/4, Black
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

3

Simplicity 1960353SM

WASHER, 1/4, Black
(Superseded to 703229)

$4.49

$

In Stock, Qty 8

0

4

Simplicity 1704873SM

CLAMP, Wire, Black

$4.49

$

In Stock, Qty 20+

0

5

Simplicity 1916964SM

LOCKWASHER, 1/4, Black
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

6

Simplicity 1916622SM

NUT, Hex, 1/4-10, Black
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 1723938SM

SPRING, Torsion, Black

$

$

Not available

8

Simplicity 1931335SM

CARRIAGE BOLT, 5/16-18 x 1, Black
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

9

Simplicity 1933988SM

NUT, Push, 5/16, Black
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

10

Simplicity 1919381SM

WASHER, 5/16, Black
(Superseded to 703298)

$4.49

$

In Stock, only 2 left!

0

11

Simplicity 1917356SM

LOCKWASHER, 5/16, Black
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

12

Simplicity 1917372SM

NUT, Hex, 5/16, Black
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 1719617SM

ROD

$10.99

$

Usually ships in 2-12 days

0

14

Simplicity 1719597SM

DOOR, Mulching

$32.99

$

Usually ships in 2-12 days

0

15

Simplicity 1726825SM

ARBOR SHAFT & BEARING ASSEMBLY

$

$

Not available

16

Simplicity 1720600SM

DEFLECTOR, Discharge

$67.99

$

Usually ships in 2-12 days

0

17

Simplicity 1714419SM

NUT, Hex Flange, 9/16-18

$5.99

$

In Stock, Qty 20+

0

18

Simplicity 1656916SM

WASHER, Spring, 7/16, Black

$7.49

$

In Stock, Qty 20+

0

19

Simplicity 1713091SM

PULLEY, 5" OD x 1" ID

$23.99

$

In Stock, only 1 left!

0

20

Simplicity 1719870SM

HUB

$48.99

$

Usually ships in 2-12 days

0

21

Simplicity 1687229SM

SPROCKET & FLANGE ASSEMBLY, 38 Tooth, w/Screws
(Superseded to 1732590SM)

$87.99

$

In Stock, only 1 left!

0

22

Simplicity 1655729ASM

HOUSING, Arbor, Top

$14.99

$

Usually ships in 2-12 days

0

23

Simplicity 1707335SM

GASKET, Foam

$5.99

$

In Stock, Qty 20+

0

24

Simplicity 1722396SM

ARBOR SHAFT & BEARINGS ASSEMBLY

$263.99

$

Usually ships in 2-12 days

0

25

Simplicity 1703273ASM

HOUSING, Arbor, Bottom, w/Lube Fitting

$38.99

$

In Stock, Qty 20+

0

26

Simplicity 1930584SM

CAPSCREW, Hex Head, 7/16-14 x 2-3/4, GR 8, Black

$7.99

$

Usually ships in 2-12 days

0

27

Simplicity 1933263SM

WASHER, 7/16, Black
(Superseded to 703990)

$6.99

$

In Stock, Qty 20+

0

28

Simplicity 1724601SM

COVER, Arbor, LH, Black
(Superseded to 1732301SM)

$29.99

$

Usually ships in 2-12 days

0

29

Simplicity 1664847SM

CAPSCREW, Hex Washer Head, Tap Tite, 5/16-18 x 3/4, Black
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

30

Simplicity 1686977SM

HOUSING ASSEMBLY

Note: (Orange)

$557.99

$

Usually ships in 2-12 days

0

30

Simplicity 1687315SM

HOUSING ASSEMBLY

Note: (Red)

$

$

Not available

31

Simplicity 1719624ASM

BLADE, Mower, 20-3/8, LH

$31.99

$

In Stock, only 1 left!

0

32

Simplicity 1722258SM

PIN, Blade

$8.49

$

In Stock, only 2 left!

0

33

Simplicity 1722257SM

WASHER, Spline

$59.99

$

Usually ships in 2-12 days

0

34

Simplicity 2827120SM

CAPSCREW, Hex Head, 7/16-14 x 1-1/4, GR 8

$

$

Not available

35

Simplicity 1655777SM

ADAPTER, Blade

$25.99

$

In Stock, Qty 20+

0

36

Simplicity 1700229SM

SHIELD, Bearing

$10.99

$

In Stock, Qty 20+

0

37

Simplicity 1700230SM

WASHER, Shim, Black

$4.99

$

In Stock, Qty 20+

0

38

Simplicity 1677274ASM

ADAPTER, Arbor

$20.99

$

Usually ships in 2-12 days

0

39

Simplicity 1960373SM

CAPSCREW, Hex Head, 5/16-18 x 1, Black
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

40

Simplicity 1719623ASM

BLADE, Mower, 20-3/8, RH

$31.99

$

In Stock, only 1 left!

0

41

Simplicity 1657969SM

SHIELD, Bearing Upper, Arbor

$7.49

$

In Stock, Qty 20+

0

42

Simplicity 1713675SM

WASHER, Bellville

$4.49

$

In Stock, Qty 20+

0

43

Simplicity 1721155SM

COVER ASSEMBLY, Arbor, RH (Includes Ref. Nos. 43 thru 48)

$116.99

$

Usually ships in 2-12 days

0

44

Simplicity 1724600SM

COVER, Arbor RH

$

$

Not available

45

Simplicity 1721259ASM

GUARD ASSEMBLY, RH

$46.99

$

Usually ships in 2-12 days

0

46

Simplicity 1721132ASM

GUARD, Extension

$17.99

$

Usually ships in 2-12 days

0

47

Simplicity 1675044SM

RIVIT, Pop

$3.99

$

In Stock, only 1 left!

0

48

Simplicity 1960096SM

WASHER, 3/16 x 3/4 x 1/16

$3.99

$

Usually ships in 2-12 days

0

49

Simplicity 1732964SM

SHIM-Cover LH 7GA 40" Mowers

$

$

Not available

50

Simplicity 1732963SM

SHIM-Cover RH 7GA 2.8 LG 40" Mowers

$

$

Not available

51

Simplicity 1732961SM

SHIM-Cover RH 7GA 6.5 LG 40" Mowers

$

$

Not available
