1694298 - Simplicity 40" Mower Deck 40" Mower Deck - Height Adjustment & Roller Bar Parts Diagram

40" Mower Deck

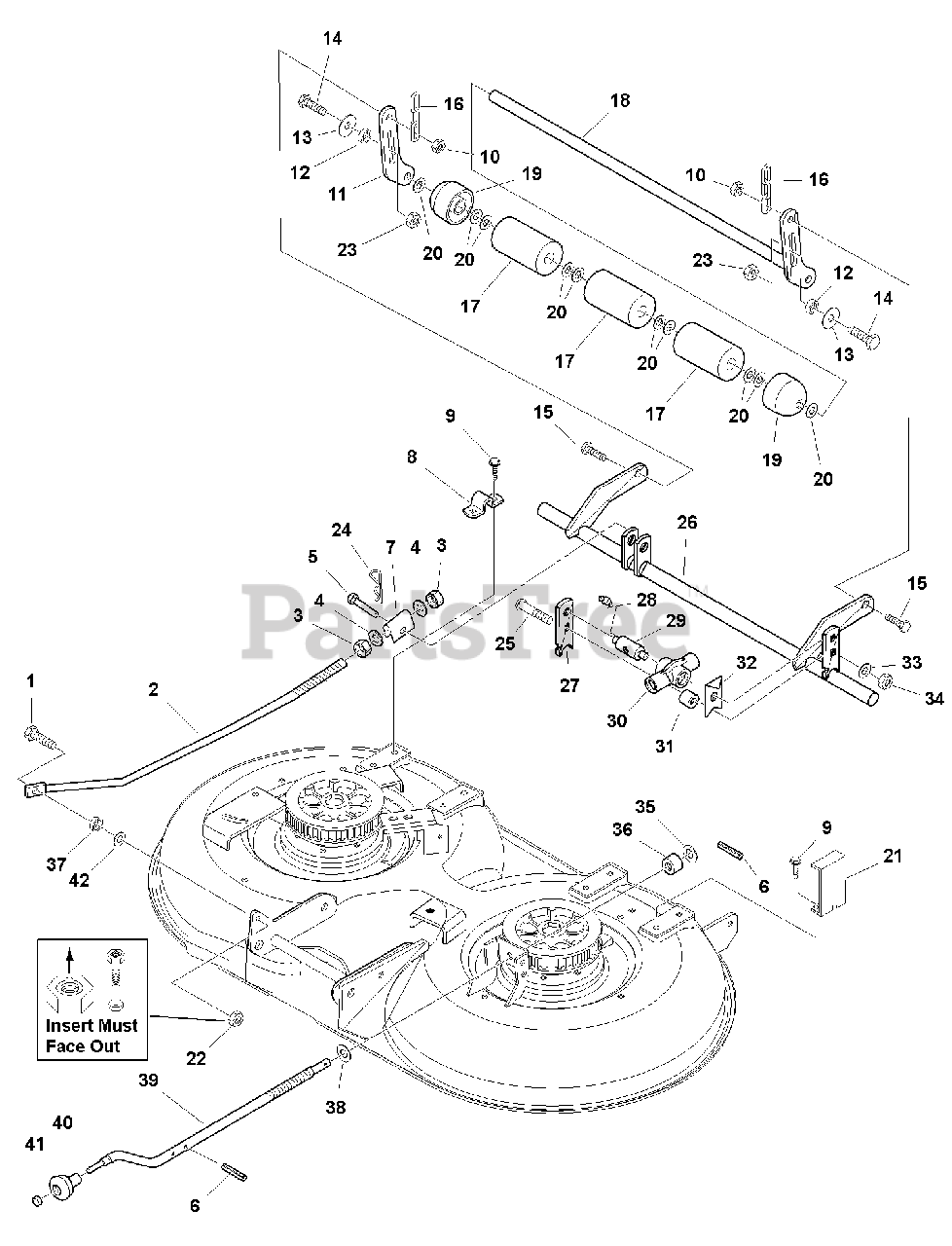

40" Mower Deck - Height Adjustment & Roller Bar Parts Diagram

  • Title

1

Simplicity 1923701SM

CAPSCREW, Hex Head, 3/8-16 x 2, GR 8, Black
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

2

Simplicity 1723900SM

ROD & STRAP ASSEMBLY

$67.99

$

Usually ships in 2-12 days

0

3

Simplicity 1915726SM

NUT, Hex, 5/8-11, Black
(Superseded to 703912)

$3.49

$

In Stock, Qty 5

0

4

Simplicity 1924366SM

WASHER, 5/8
(Superseded to 703580)

$4.49

$

In Stock, Qty 20+

0

5

Simplicity 2118053SM

PIN, Round Head, Drilled, 3/8 x 2, Black
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

6

Simplicity 2816001SM

PIN, Spring

$4.49

$

In Stock, Qty 11

0

7

Simplicity 1706645ASM

TRUNNION
(Superseded to 84003858)

$8.49

$

Usually ships in 2-12 days

0

8

Simplicity 1665374SM

STRAP
(Superseded to 1761690HYP)

$7.99

$

Usually ships in 2-12 days

0

9

Simplicity 1664847SM

CAPSCREW, Hex Washer Head, Tap Tite, 5/16-18 x 3/4, Black
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

10

Simplicity 1960339SM

NUT, Hex Flange Lock, 3/8-16, Black

$

$

Not available

11

Simplicity 1723150ASM

BAR, Roller

$10.99

$

Usually ships in 2-12 days

0

12

Simplicity 1960236SM

SPACER

$6.49

$

In Stock, only 2 left!

0

13

Simplicity 1960044SM

WASHER, 5/16, Black

$4.49

$

In Stock, only 3 left!

0

14

Simplicity 1921969SM

CAPSCREW, Hex Head, 3/8-16 x 1-1/2, Black
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

15

Simplicity 1921977SM

CAPSCREW, Hex Head, 5/16-18 x 1-1/4, Black
(Superseded to 703570)

$4.99

$

In Stock, Qty 7

0

16

Simplicity 1656835A

CHAIN, Link, 3 Links

$

$

Not available

17

Simplicity 1668513SM

ROLLER, 5/8 ID x 2-1/2 OD x 4 Long

$10.99

$

In Stock, Qty 20+

0

18

Simplicity 1722078A

SHAFT & BAR ASSEMBLY
(Superseded to 1722078ASM)

$27.99

$

Usually ships in 2-12 days

0

19

Simplicity 1717675SM

ROLLER, 5/8 ID x 2-1/2 OD x 2 Long

$6.99

$

In Stock, Qty 20+

0

20

Simplicity 1924366SM

WASHER, 5/8
(Superseded to 703580)

$4.49

$

In Stock, Qty 20+

0

21

Simplicity 1723148A

PLATE, Indicator
(Superseded to 1723148ASM)

$11.99

$

Usually ships in 2-12 days

0

22

Simplicity 2860681SM

NUT, Hex Lock, Aluminum Insert, 3/8-16

$4.49

$

In Stock, Qty 7

0

23

Simplicity 2860643SM

NUT, Hex Lock, 3/8-16

$3.49

$

In Stock, only 4 left!

0

24

Simplicity 1960074SM

PIN, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

25

Simplicity 1960489SM

CARRIAGE BOLT, 1/2-13 x 2-1/2, Black

$9.99

$

Usually ships in 2-12 days

0

26

Simplicity 1724970A

SHAFT ASSEMBLY, Rocker
(Superseded to 1724970ASM)

$86.99

$

Usually ships in 2-12 days

0

27

Simplicity 1722978ASM

ARM

$

$

Not available

28

Simplicity 1704314SM

FITTING, Lube
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

29

Simplicity 1715892SM

TRUNNION

$39.99

$

In Stock, only 2 left!

0

30

Simplicity 1716424SM

COVER, Rod

$101.99

$

Usually ships in 2-12 days

0

31

Simplicity 1679166SM

SPACER

$7.49

$

In Stock, only 2 left!

0

32

Simplicity 1723147A

POINTER, Height of Cut

$

$

Not available

33

Simplicity 1916966SM

LOCKWASHER, 1/2, Black
(Superseded to 703341)

$4.49

$

In Stock, only 1 left!

0

34

Simplicity 1916951SM

NUT, Hex, 1/2-13, Black
(Superseded to 703340)

$7.99

$

In Stock, only 1 left!

0

35

Simplicity 2860171SM

WASHER, Special, Nylon

$4.49

$

In Stock, Qty 11

0

36

Simplicity 1715891SM

BEARING, Thrust

$26.99

$

In Stock, only 1 left!

0

37

Simplicity 1706644SM

SPACER

$8.49

$

In Stock, only 1 left!

0

38

Simplicity 1960035SM

WASHER, 5/8, Black

$4.49

$

In Stock, only 2 left!

0

39

Simplicity 1723153SM

CRANK, Height of Cut

$41.99

$

Usually ships in 2-12 days

0

40

Simplicity 1714084SM

KNOB, Spinner

$12.99

$

Usually ships in 2-12 days

0

41

Simplicity 1960093SM

NUT, Push, 3/8
(Superseded to 703948)

$4.49

$

In Stock, Qty 17

0

42

Simplicity 1924940SM

WASHER, 3/8, Black
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0
