1694291 - Simplicity 44" Mower Deck 44" Mower Deck - Height Adjustment & Roller Bar Parts Diagram

44" Mower Deck

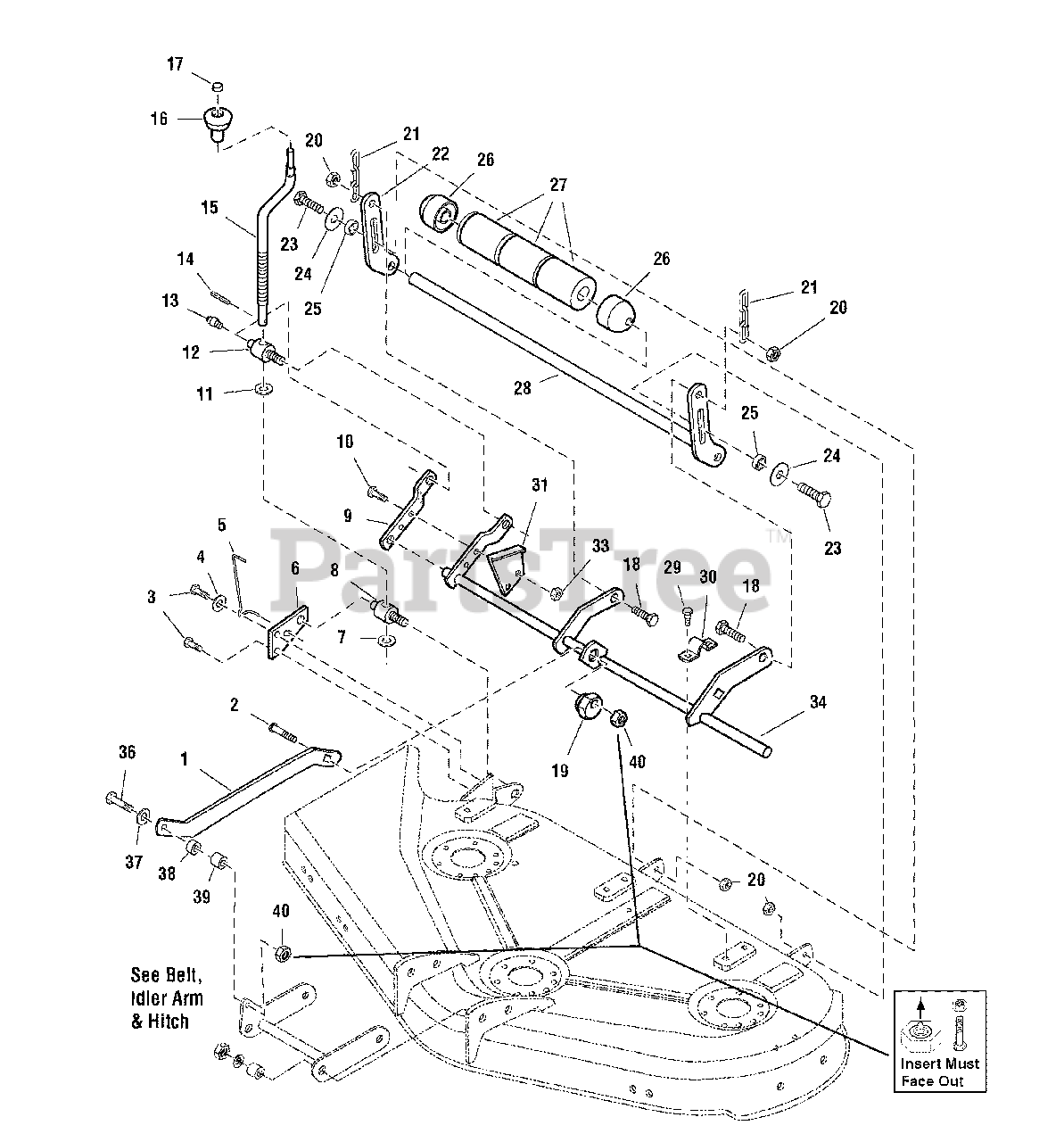

44" Mower Deck - Height Adjustment & Roller Bar Parts Diagram

  • Title

1

Simplicity 1724833ASM

ARM,Pitch

$16.99

$

Usually ships in 2-12 days

0

2

Simplicity 1931352SM

CARRIAGE BOLT,3/8-16 x 1-1/2, Black

$4.49

$

In Stock, only 2 left!

0

3

Simplicity 1931202SM

CAPSCREW, Hex Washer Head, Tap Tite, 5/16-18 x 1-1/4, Black
(Superseded to 703167)

$3.99

$

In Stock, Qty 7

0

4

Simplicity 1919381SM

WASHER, 5/16, Black
(Superseded to 703298)

$4.49

$

In Stock, only 1 left!

0

5

Simplicity 1704114SM

ROD, Height of Cut

$16.99

$

In Stock, Qty 9

0

6

Simplicity 1704080ASM

PLATE

$8.49

$

In Stock, only 1 left!

0

7

Simplicity 1704097SM

WASHER, Detent, Black

$4.49

$

In Stock, Qty 11

0

8

Simplicity 1724009SM

TRUNNION

$

$

Not available

9

Simplicity 1704083ASM

ARM

$13.99

$

In Stock, only 1 left!

0

10

Simplicity 1921977SM

CAPSCREW, Hex Head, 5/16-18 x 1-1/4, Black
(Superseded to 703570)

$4.99

$

In Stock, Qty 10

0

11

Simplicity 1960170SM

WASHER, 1/2, Black
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

12

Simplicity 1704087SM

TRUNNION

$109.99

$

Usually ships in 2-12 days

0

13

Simplicity 1704314SM

FITTING, Lube
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

14

Simplicity 2816001SM

PIN, Spring

$4.49

$

In Stock, Qty 11

0

15

Simplicity 1727681SM

CRANK, Height Adjustment, Black

$140.99

$

In Stock, only 1 left!

0

16

Simplicity 1714084SM

KNOB, Spinner

$12.99

$

In Stock, only 1 left!

0

17

Simplicity 1960093SM

NUT, Push, 3/8, Black
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

18

Simplicity 1921969SM

CAPSCREW, Hex Head, 3/8-16 x 1-1/2, Black
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

19

Simplicity 1704082SM

NUT, Hex Adjusting, .99 DIA .687

$5.49

$

In Stock, Qty 17

0

20

Simplicity 1930645SM

NUT, Hex Flange Lock, 3/8-16, Black
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

21

Simplicity 1656835A

CHAIN, Link, 3 Links

$

$

Not available

22

Simplicity 1723150ASM

BAR, Roller

$10.99

$

Usually ships in 2-12 days

0

23

Simplicity 1921977SM

CAPSCREW, Hex Head, 5/16-18 x 1-1/4, Black
(Superseded to 703570)

$4.99

$

In Stock, Qty 10

0

24

Simplicity 1960044SM

WASHER, 5/16, Black

$4.49

$

In Stock, only 3 left!

0

25

Simplicity 1960236SM

SPACER

$6.49

$

In Stock, only 1 left!

0

26

Simplicity 1717675SM

ROLLER, Rounded, 5/8 ID x 2-1/2 OD x 2" Long

$6.99

$

In Stock, Qty 20+

0

27

Simplicity 1668513SM

ROLLER, 5/8 ID x 2-1/2 OD x 4" Long

$10.99

$

In Stock, Qty 20+

0

28

Simplicity 1722078A

SHAFT & BAR ASSEMBLY
(Superseded to 1722078ASM)

$27.99

$

Usually ships in 2-12 days

0

29

Simplicity 1664847SM

CAPSCREW, Hex Washer Head, Tap Tite, 5/16-18 x 3/4, Black
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

30

Simplicity 1665374SM

STRAP
(Superseded to 1761690HYP)

$7.99

$

Usually ships in 2-12 days

0

31

Simplicity 1704116ASM

BRACKET, Height of Cut
(Superseded to 1704116BMYP)

$11.99

$

Usually ships in 2-12 days

0

33

Simplicity 1931277SM

NUT, Hex, 5/16-18, Whiz Lock Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

34

Simplicity 1724968ASM

SHAFT ASSEMBLY

$107.99

$

Usually ships in 2-12 days

0

36

Simplicity 1923701SM

CAPSCREW, Hex Head, 3/8-16 x 1-3/4
(Superseded to 703589)

$4.49

$

Usually ships in 2-12 days

0

37

Simplicity 1924940SM

WASHER
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

38

Simplicity 1611705SM

SPACER

$4.49

$

In Stock, Qty 20+

0

39

Simplicity 1667812SM

SPACER

$5.99

$

In Stock, Qty 16

0

40

Simplicity 2860681SM

NUT, Hex, 3/8-16

$4.49

$

In Stock, Qty 11

0
