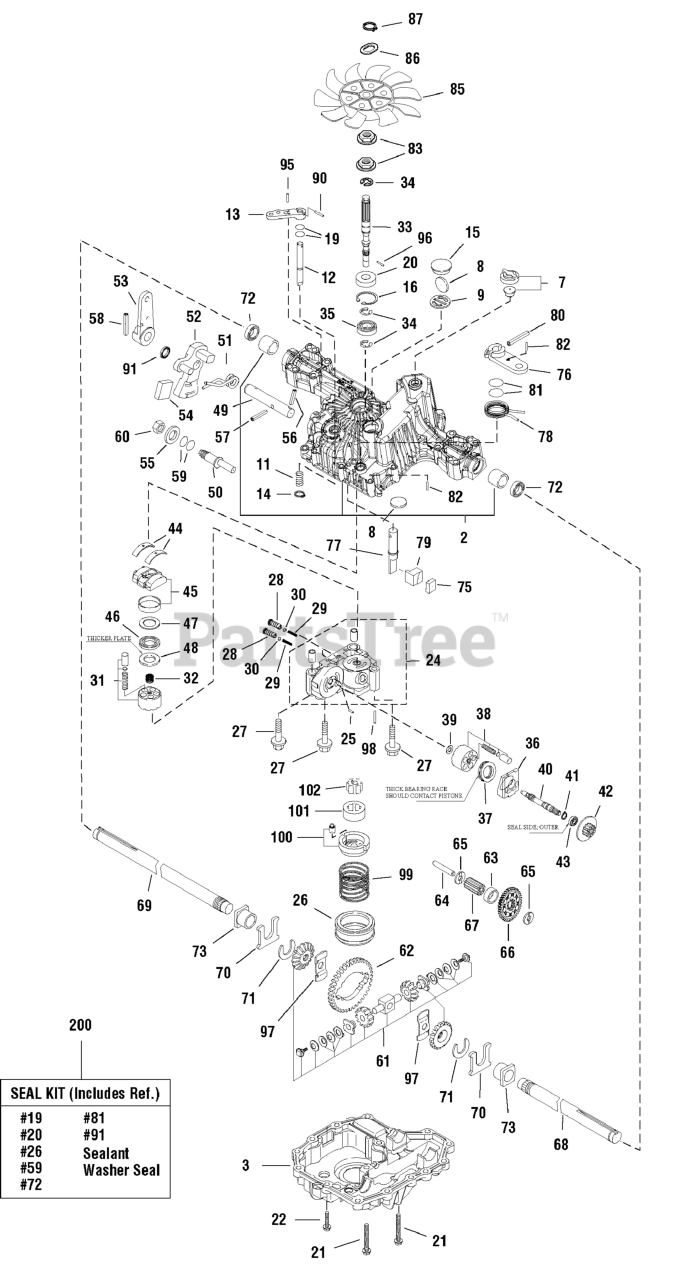

1694277 - Simplicity Broadmoor Lawn Tractor, 16hp Honda Transmission SERVICE PARTS - Tuff Torq K57 (1722668) Parts Diagram

Broadmoor Lawn Tractor, 16hp Honda

Transmission SERVICE PARTS - Tuff Torq K57 (1722668) Parts Diagram

  • Title

2

Simplicity 1724951SM

*HOUSING ASSEMBLY, Upper

$276.99

$

Usually ships in 2-12 days

0

3

Simplicity 1724938SM

HOUSING, LOWER

$

$

Not available

7

Simplicity 1718052SM

VENT VALVE 15

$26.99

$

Usually ships in 2-12 days

0

8

Simplicity 1724279SM

MAGNET, K50

$5.49

$

Usually ships in 2-12 days

0

9

Simplicity 1724280SM

*HOLDER, Magnet

$3.49

$

Usually ships in 2-12 days

0

11

Simplicity 1708684SM

SPRING

$

$

Not available

12

Simplicity 1724281SM

SHAFT, Bypass

$42.99

$

Usually ships in 2-12 days

0

13

Simplicity 1720418SM

LEVER, Bypass

$14.99

$

Usually ships in 2-12 days

0

14

Simplicity 1718061SM

RING

$

$

Not available

15

Simplicity 1724282SM

SEALING CAP
(Superseded to 1760090YP)

$15.99

$

In Stock, only 1 left!

0

16

Simplicity 1708650SM

RING 35

$4.99

$

Usually ships in 2-12 days

0

19

Simplicity 1708691SM

O-RING, 1A P10A
(Superseded to 7073793YP)

$5.99

$

Usually ships in 2-12 days

0

20

Simplicity 1724283SM

SEAL TC

$

$

Not available

21

Simplicity 1707789SM

SCREW, Tapping

$6.99

$

Usually ships in 2-12 days

0

22

Simplicity 1724284SM

*SCREW, Tapping

$

$

Not available

24

Simplicity 1724939SM

CASE, CENTER

$282.99

$

Usually ships in 2-12 days

0

25

Simplicity 1718070SM

PIN 3 x 9.8

$

$

Not available

26

Simplicity 1724954SM

FILTER

$31.99

$

In Stock, Qty 14

0

27

Simplicity 1720805SM

BOLT 10 x 75

$6.99

$

Usually ships in 2-12 days

0

28

Simplicity 1724286SM

VALVE, IDS 1.0

$

$

Not available

29

Simplicity 1724287SM

SPRING, IDS

$4.99

$

Usually ships in 2-12 days

0

30

Simplicity 1724288SM

*BALL, 3/16

$1.99

$

Usually ships in 2-12 days

0

31

Simplicity 1724940SM

*CYLINDER BLOCK ASSEMBLY

$196.99

$

Usually ships in 2-12 days

0

32

Simplicity 1724290SM

SPRING, PUMP

$3.49

$

Usually ships in 2-12 days

0

33

Simplicity 1724941SM

SHAFT, PUMP

$84.99

$

Usually ships in 2-12 days

0

34

Simplicity 1718076SM

RING E15

$4.49

$

Usually ships in 2-12 days

0

35

Simplicity 1708673SM

BEARING

$24.99

$

Usually ships in 2-12 days

0

36

Simplicity 1718077SM

HOUSING

$45.99

$

Usually ships in 2-12 days

0

37

Simplicity 1724942SM

*BEARING, Thrust

$48.99

$

In Stock, only 1 left!

0

38

Simplicity 1724289SM

BLOCK, CYLINDER

$

$

Not available

39

Simplicity 1718084SM

WASHER 12 x 24 x 1

$4.49

$

Usually ships in 2-12 days

0

40

Simplicity 1724943SM

SHAFT, MOTOR

$31.99

$

Usually ships in 2-12 days

0

41

Simplicity 1708672SM

RING 15

$5.49

$

Usually ships in 2-12 days

0

42

Simplicity 1724944SM

GEAR, MOTOR

$30.99

$

Usually ships in 2-12 days

0

43

Simplicity 1718083SM

BEARING 6202UC3
(Superseded to 7073792YP)

$64.99

$

In Stock, only 1 left!

0

44

Simplicity 1718089SM

THRUST METAL

$16.99

$

Usually ships in 2-12 days

0

45

Simplicity 1720426SM

SWASH PLATE ASSEMBLY

$

$

Not available

46

Simplicity 1718088SM

THRUST PLATE B

$24.99

$

Usually ships in 2-12 days

0

47

Simplicity 1718086SM

BEARING K81105

$35.99

$

Usually ships in 2-12 days

0

48

Simplicity 1718087SM

THRUST PLATE A

$36.99

$

Usually ships in 2-12 days

0

49

Simplicity 1724343SM

*SHAFT, Control

$

$

Not available

50

Simplicity 1724344SM

*FULCRUM, ECCENTRIC

$

$

Not available

51

Simplicity 1724345SM

SPRING, Torsion

$19.99

$

Usually ships in 2-12 days

0

52

Simplicity 1724346SM

LEVER, Control

$74.99

$

Usually ships in 2-12 days

0

53

Simplicity 1724347SM

ARM, Control

$19.99

$

Usually ships in 2-12 days

0

54

Simplicity 1724348SM

JERKY PLATE

$9.99

$

Usually ships in 2-12 days

0

55

Simplicity 1708689SM

WASHER

$3.99

$

Usually ships in 2-12 days

0

56

Simplicity 1724349SM

PIN, COTTER

$4.49

$

Usually ships in 2-12 days

0

57

Simplicity 1724296SM

PIN, SPRING

$4.99

$

In Stock, only 1 left!

0

58

Simplicity 1707879SM

PIN 6.0A x 4.0

$4.49

$

Usually ships in 2-12 days

0

59

Simplicity 1718100SM

PACKING
(Superseded to 1960588SM)

$4.49

$

In Stock, only 1 left!

0

60

Simplicity 1708692SM

NUT 12

$2.99

$

Usually ships in 2-12 days

0

61

Simplicity 1724955SM

GEAR & PINION ASSEMBLY

$462.99

$

Usually ships in 2-12 days

0

62

Simplicity 1724945SM

*GEAR, FINAL CONTR TRAC

$

$

Not available

63

Simplicity 1724946SM

COLLAR, PINION

$3.99

$

Usually ships in 2-12 days

0

64

Simplicity 1724947SM

*SHAFT, Reduction

$16.99

$

Usually ships in 2-12 days

0

65

Simplicity 1724948SM

WASHER, 12 x 32 x 3.2

$5.49

$

Usually ships in 2-12 days

0

66

Simplicity 1724949SM

GEAR, Reduction

$34.99

$

Usually ships in 2-12 days

0

67

Simplicity 1724950SM

PINION, Final

$103.99

$

Usually ships in 2-12 days

0

68

Simplicity 1724303SM

SHAFT, AXLE, Left

$102.99

$

Usually ships in 2-12 days

0

69

Simplicity 1724304SM

SHAFT, AXLE, Right

$102.99

$

In Stock, only 1 left!

0

70

Simplicity 1718112SM

WASHER, Thrust

$18.99

$

Usually ships in 2-12 days

0

71

Simplicity 1718113SM

RING 17

$

$

Not available

72

Simplicity 1718111SM

SEAL 19 x 32 x 8
(Superseded to 84002383)

$15.99

$

In Stock, only 3 left!

0

73

Simplicity 1718110SM

BUSHING 19 x 21

$

$

Not available

75

Simplicity 1724305SM

SHOE, Brake

$5.49

$

In Stock, only 1 left!

0

76

Simplicity 1724306SM

ARM, Brake

$

$

Not available

77

Simplicity 1724307SM

SHAFT, Brake

$

$

Not available

78

Simplicity 1724308SM

SPRING, RETURN B

$

$

Not available

79

Simplicity 1724309SM

BRAKE, Actuator

$4.99

$

Usually ships in 2-12 days

0

80

Simplicity 1724310SM

PIN

$2.49

$

Usually ships in 2-12 days

0

81

Simplicity 1708690SM

PACKING
(Superseded to 7073763YP)

$6.49

$

In Stock, only 1 left!

0

82

Simplicity 1724311SM

PIN, Spring

$3.99

$

Usually ships in 2-12 days

0

83

Simplicity 1724312SM

COLLAR, Spline

$7.99

$

Usually ships in 2-12 days

0

85

Simplicity 1736306SM

FAN

$48.99

$

In Stock, only 1 left!

0

86

Simplicity 1724315SM

LOCKWASHER

$4.49

$

In Stock, Qty 12

0

87

Simplicity 1724316SM

RING, Snap

$4.99

$

In Stock, Qty 6

0

90

Simplicity 1720421SM

PIN 3.0A x 20

$

$

Not available

91

Simplicity 1724318SM

OIL SEAL

$

$

Not available

95

Simplicity 1707839SM

PIN, Roll

$3.49

$

Usually ships in 2-12 days

0

97

Simplicity 1724956SM

WASHER, THRUST DIFF

$

$

Not available

98

Simplicity 1724958SM

PIN, 3.0A x 18

$3.49

$

Usually ships in 2-12 days

0

99

Simplicity 1724957SM

*SPRING, Charge

$

$

Not available

100

Simplicity 1724953SM

CHARGE PUMP CASE ASSEMBLY

$47.99

$

Usually ships in 2-12 days

0

200

Simplicity 1727542SM

SEAL KIT, K57

$164.99

$

Usually ships in 2-12 days

0
