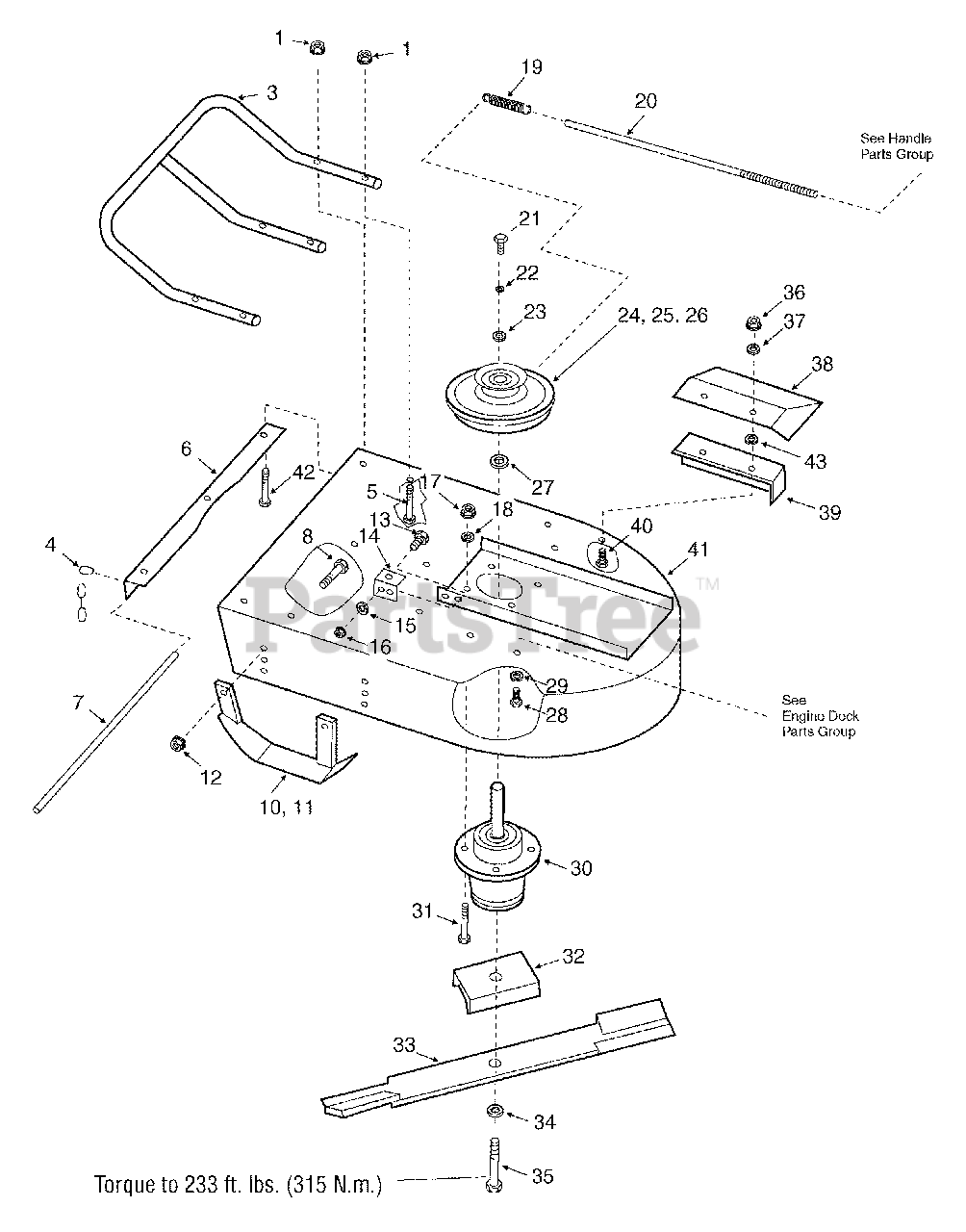

  • Title

1

Simplicity 1931277SM

Nut, Hex Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

3

Simplicity 1723532SM

Front Bumper Bar

$

$

Not available

4

Simplicity 1723533SM

Chain Curtain Length

$2.99

$

Usually ships in 2-12 days

0

5

Simplicity 1921221SM

Capscrew, Hex Head, 5/16-18 x 1-1/2 (bumper rear holes)
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

6

Simplicity 1723534SM

Chain Curtain Bracket

$55.99

$

Usually ships in 2-12 days

0

7

Simplicity 1723535SM

Chain Curtain Mounting Rod

$12.99

$

Usually ships in 2-12 days

0

8

Simplicity 1921210SM

Capscrew, Hex Head, 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

10

Simplicity 1723536SM

Blade Deck Skid - Left

$237.99

$

Usually ships in 2-12 days

0

11

Simplicity 1723537SM

Blade Deck Skid - Right (not shown)

$237.99

$

In Stock, only 1 left!

0

12

Simplicity 1931211SM

NU, Hex Flange Whix Lock Sm 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

13

Simplicity 1921332SM

Capscrew, Hex Head, 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

14

Simplicity 1723538SM

Anti-torque Bracket

$13.99

$

Usually ships in 2-12 days

0

15

Simplicity 1917356SM

Lockwasher, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

16

Simplicity 1917372SM

Nut, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

17

Simplicity 1916950SM

Nut, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

Usually ships in 2-12 days

0

18

Simplicity 1916965SM

Lockwasher, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

19

Simplicity 1723657SM

Clutch Spring

$11.99

$

Usually ships in 2-12 days

0

20

Simplicity 1723539SM

Blade Clutch Engagement Rod

$11.99

$

Usually ships in 2-12 days

0

21

Simplicity 1921969SM

Capscrew, Hex Head, 3/8-16 x 1-1/2
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

22

Simplicity 1916965SM

Lockwasher, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

23

Simplicity 1723640SM

Flatwasher, Heavy Duty, 7/16 x 1-1/2
(Superseded to 7091807SM)

$2.99

$

Usually ships in 2-12 days

0

24

Simplicity 1723540SM

Clutch Assembly

$530.99

$

Usually ships in 2-12 days

0

25

Simplicity 1921333SM

Capscrew, Hex Head, Anti-torque, 5/16-18 x 1 (Not Shown)
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

26

Simplicity 1923362SM

Nut, Hex Centerlock, 5/16-18 (Not Shown)
(Superseded to 703164)

$3.49

$

In Stock, Qty 20+

0

27

Simplicity 1723541SM

Clutch Spacer - 1/4

$

$

Not available

28

Simplicity 1921210SM

Bolt, Hex
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

29

Simplicity 1924940SM

Washer, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

30

Simplicity 1723542SM

Blade SpindleAssembly

$

$

Not available

31

Simplicity 1920415SM

Bolt, Hex, 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

32

Simplicity 1723543SM

Cutting Blade Reinforcement Channel

$

$

Not available

33

Simplicity 1723544SM

Cutting Blade
(Superseded to 1723544BZYP)

$39.99

$

In Stock, only 2 left!

0

34

Simplicity 1917373SM

Lockwasher, 5/8

$3.99

$

Usually ships in 2-12 days

0

35

Simplicity 1725227SM

Capscrew, Socket Head, 5/8-11 x 1-1/2

$

$

Not available

36

Simplicity 1917372SM

Nut, Hex, 5/16
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

37

Simplicity 1917356SM

Lockwasher, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

38

Simplicity 1723546SM

Discharge Deflector

$176.99

$

Usually ships in 2-12 days

0

39

Simplicity 1723547SM

Discharge Cover

$75.99

$

Usually ships in 2-12 days

0

40

Simplicity 1921332SM

Bolt, Hex, 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

41

Simplicity 1723548SM

Blade Deck

$

$

Not available

42

Simplicity 1921227SM

Capscrew, Hex Head, 5/16-18 x 1-3/4 (bumper front holes)

$

$

Not available

43

Simplicity 1918265SM

Washer, 5/16
(Superseded to 703350)

$4.49

$

In Stock, only 2 left!
