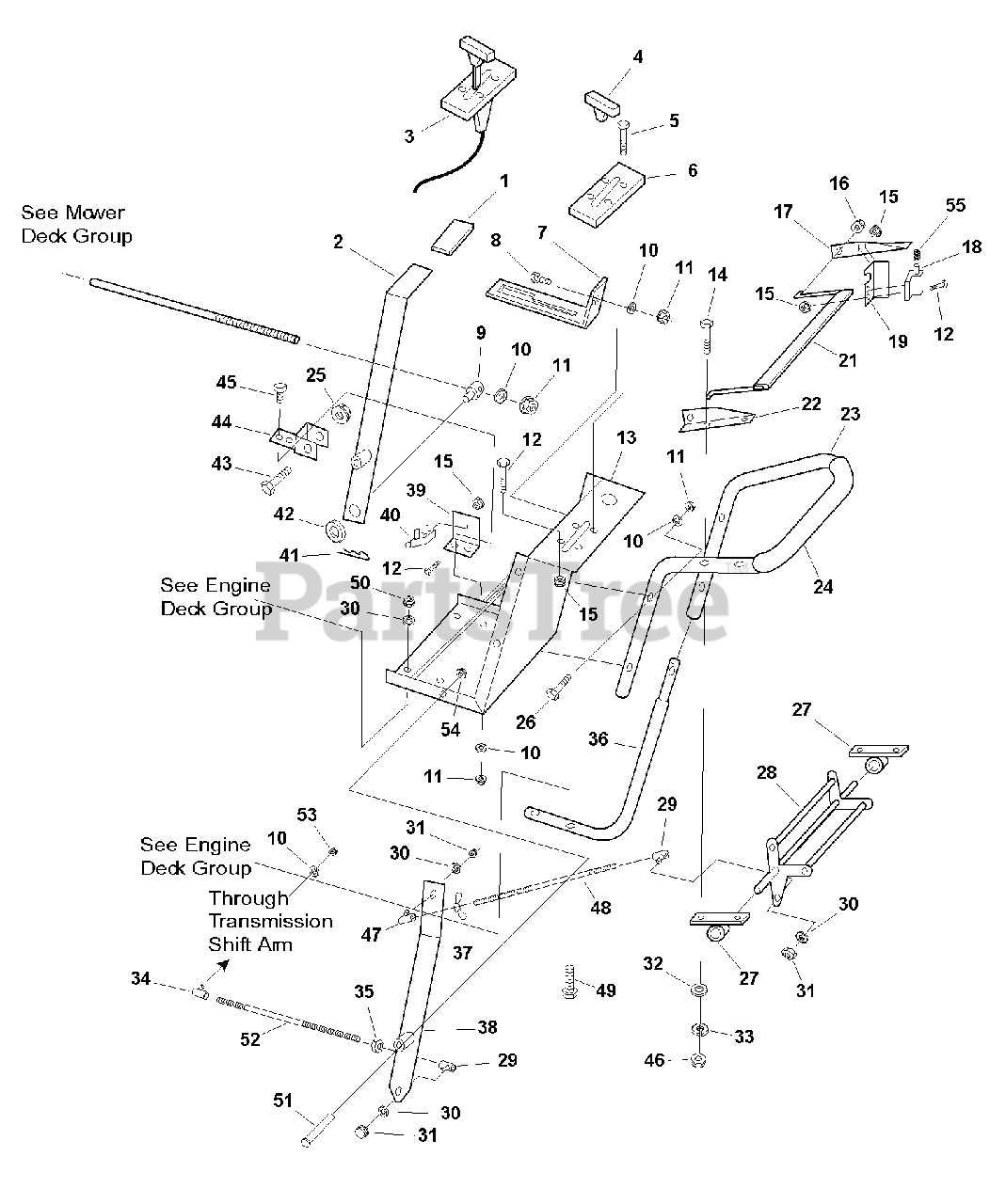

1694240 - Simplicity Walk-Behind Mower, 13hp Handle Parts Group - S/N 011903999 & Below Parts Diagram

Walk-Behind Mower, 13hp

Handle Parts Group - S/N 011903999 & Below Parts Diagram

  • Title

1

Simplicity 1719965SM

Handle grip

$5.49

$

Usually ships in 2-12 days

0

2

Simplicity 1723595SM

Blade Clutch Engagement Lever

$

$

Not available

3

Simplicity 1723686SM

Throttle Control Cable Assembly, 13 HP Honda

$22.99

$

Usually ships in 2-12 days

0

3

Simplicity 7027802SM

Throttle Control Cable Assembly, 15 HP Kawasaki

$30.99

$

Usually ships in 2-12 days

0

3

Simplicity 1723624SM

Throttle Control Cable assembly, 9 HP Briggs

$31.99

$

Usually ships in 2-12 days

0

4

Simplicity 7076833SM

Throttle Control, T-Handle

$2.99

$

Usually ships in 2-12 days

0

5

Simplicity 1675044SM

Rivet, 3/16

$3.99

$

In Stock, only 1 left!

0

6

Simplicity 1723623SM

Throttle Speed Indicator Plate

$2.99

$

Usually ships in 2-12 days

0

7

Simplicity 1723550SM

Blade Engage Lever Lock Bracket

$23.99

$

Usually ships in 2-12 days

0

8

Simplicity 1921332SM

Capscrew, Hex Head, 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

9

Simplicity 1723598SM

Rod, Fitting End

$12.99

$

Usually ships in 2-12 days

0

10

Simplicity 1917356SM

Lockwasher, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

11

Simplicity 1917372SM

Nut, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

12

Simplicity 1960600SM

Screw, 8-32 x 3/4

$4.99

$

Usually ships in 2-12 days

0

13

Simplicity 1723553SM

Control Deck & Dash Panel

$114.99

$

Usually ships in 2-12 days

0

14

Simplicity 1921962SM

Capscrew, Hex Head, 1/4-20 x 1-3/4
(Superseded to 703586)

$4.99

$

Usually ships in 2-12 days

0

15

Simplicity 1960222SM

Nut Assembly, 8-32

$3.49

$

Usually ships in 2-12 days

0

16

Simplicity 1932718SM

Push Nut, 5/16
(Superseded to 704028)

$5.49

$

In Stock, only 4 left!

0

17

Simplicity 1723562SM

Safety Bar Pivot Bracket, Left

$13.99

$

Usually ships in 2-12 days

0

18

Simplicity 1723563SM

Safety Switch
(Superseded to 7027225YP)

$

$

Not available

19

Simplicity 1723565SM

Safety Switch Mounting Bracket

$23.99

$

Usually ships in 2-12 days

0

20

Machine Screw Assembly, 8-32 x 1/2

$

$

Not available

21

Simplicity 1723561SM

Safety Bar

$61.99

$

Usually ships in 2-12 days

0

22

Simplicity 1723566SM

Safety Bar Pivot Bracket, Right

$12.99

$

Usually ships in 2-12 days

0

23

Simplicity 1723572SM

Upper Handle

$

$

Not available

24

Simplicity 1723568SM

Foam Handle Cover

$11.99

$

Usually ships in 2-12 days

0

25

Simplicity 1930644SM

Nut, Hex Flangelock, 1/2-13

$3.49

$

In Stock, Qty 6

0

26

Simplicity 1921221SM

Capscrew, Hex Head, 5/16-18 x 1-1/2
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

27

Simplicity 1723570SM

Bearing, 3/4 ID

$

$

Not available

28

Simplicity 1725232SM

Drive Engagement Bar

$108.99

$

Usually ships in 2-12 days

0

29

Simplicity 1723557SM

Ball Joint, 3/8-24, LH

$12.99

$

Usually ships in 2-12 days

0

30

Simplicity 1916965SM

Lockwasher, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

31

Simplicity 1918403SM

Nut, Jam, 3/8-24
(Superseded to 7090482SM)

$4.49

$

In Stock, only 1 left!

0

32

Simplicity 1921319SM

Flatwasher, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

33

Simplicity 1916964SM

Lockwasher, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

34

Simplicity 1723554SM

Ball Joint, 5/16-24

$16.99

$

Usually ships in 2-12 days

0

35

Simplicity 1723556SM

Nut, Hex Jam, 3/8-24, LH

$

$

Not available

36

Simplicity 1723569SM

Lower Handle

$51.99

$

Usually ships in 2-12 days

0

37

Simplicity 1723559SM

Nut, Wing, 3/8-24

$7.49

$

Usually ships in 2-12 days

0

38

Simplicity 1723573SM

Transmission Drive Intermediate Lever
(Superseded to 7059204YP)

$125.99

$

Usually ships in 2-12 days

0

39

Simplicity 1723551SM

Deck Safety Switch Bracket

$15.99

$

Usually ships in 2-12 days

0

40

Simplicity 1723552SM

Deck Safety Switch

$

$

Not available

41

Simplicity 1723597SM

Bridge Pin, #2

$2.99

$

Usually ships in 2-12 days

0

42

Simplicity 1924940SM

Washer, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

43

Simplicity 1960462SM

Capscrew, Hex Head, 1/2 x 2-1/2
(Superseded to 703449)

$4.99

$

Usually ships in 2-12 days

0

44

Simplicity 1723596SM

Blade Clutch Engagement Lever Bracket

$17.99

$

Usually ships in 2-12 days

0

45

Simplicity 1921333SM

Capscrew, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

46

Simplicity 1916622SM

Nut, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

47

Simplicity 1723558SM

Ball Joint, 3/8-24 RH

$16.99

$

Usually ships in 2-12 days

0

48

Simplicity 1725231SM

Transmission Engagement Rod, Upper

$42.99

$

Usually ships in 2-12 days

0

49

Simplicity 1922127SM

Capscrew, Hex Head, 5/16-18 x 1-3/4
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

50

Simplicity 1916950SM

Nut, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

51

Simplicity 1723662SM

Bolt, Shoulder, 1/2 x 1 -3/8 to 3/8-16

$3.99

$

Usually ships in 2-12 days

0

52

Simplicity 1723555SM

Transmission Engagement Rod, Lower

$16.99

$

Usually ships in 2-12 days

0

53

Simplicity 2820438SM

Nut, Hex Jam, 5/16-24

$3.49

$

In Stock, only 2 left!

0

54

Simplicity 1960339SM

Nut, Hex Centerlock, 3/8-16

$

$

Not available

55

Simplicity 1723564SM

Safety switch return spring

$9.99

$

Usually ships in 2-12 days

0
