1694204 - Simplicity Walk-Behind Mower, 13.5hp Wheels & Traction Drive Group Parts Diagram

Walk-Behind Mower, 13.5hp

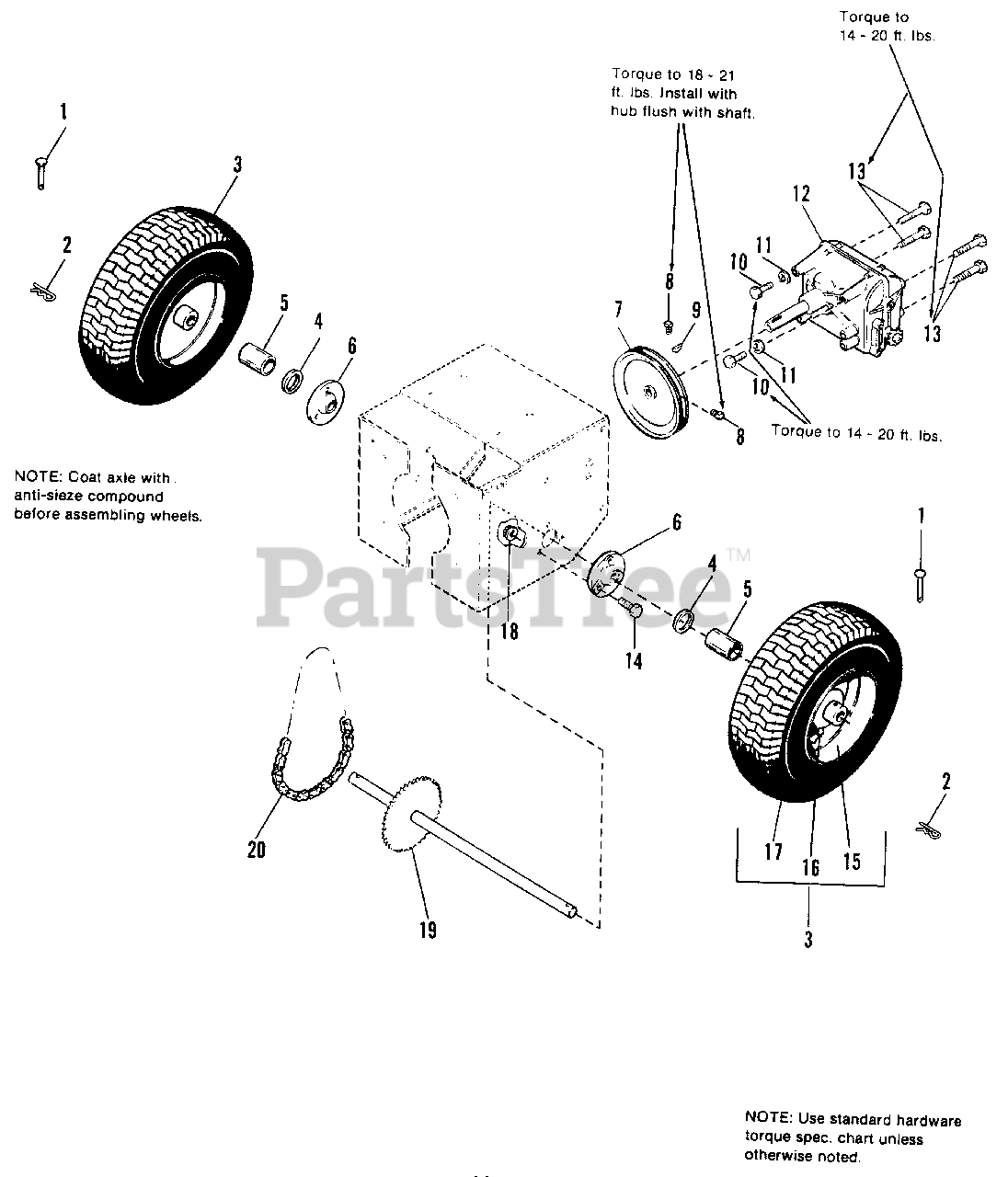

Wheels & Traction Drive Group Parts Diagram

  • Title

1

Simplicity 1665994SM

PIN
(Superseded to 703145)

$3.99

$

In Stock, only 3 left!

0

2

Simplicity 1960074SM

CLIP, Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

3

Simplicity 1714236SM

TIRE & WHEEL ASSY.

$

$

Not available

4

Simplicity 1960114SM

WASHER
(Superseded to 703151)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 1674711

SPACER, Wheel

$

$

Not available

6

Simplicity 1674280SM

BEARING, Wheel

$

$

Not available

7

Simplicity 1674306SM

PULLEY ASSY., Traction

$48.99

$

Usually ships in 2-12 days

0

8

Simplicity 1930540SM

SETSCREW, Sq. Hd., 5/16-18 x 5/8

$4.49

$

In Stock, Qty 10

0

9

Simplicity 2830670SM

KEY, Woodruff, Hi Pro, 3/16 x 3/4

$2.49

$

Usually ships in 2-12 days

0

10

Simplicity 1921332SM

CAPSCREW, Hex, 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

11

Simplicity 1917356SM

LOCKWASHER
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

12

TRANSMISSION (Peerless Transmission, Model 700-006.)

$

$

Not available

13

Simplicity 1930601SM

SCREW, Hex, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

14

Simplicity 1930591SM

SCREW, Hex Whizlock, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 10

0

15

Simplicity 1714241SM

WHEEL

$

$

Not available

16

Simplicity 2172353SM

VALVE STEM & CAP
(Superseded to 024373MA)

$

$

Not available

17

Simplicity 1674713SM

TIRE, 4.10/3.5-6 Turf

$

$

Not available

18

Simplicity 1935048SM

NUT, Hex, Fl. Hd. Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

19

Simplicity 1611993SM

AXLE ASSY.

$

$

Not available

20

Simplicity 1676381SM

DRIVE CHAIN

$18.99

$

Usually ships in 2-12 days

0
