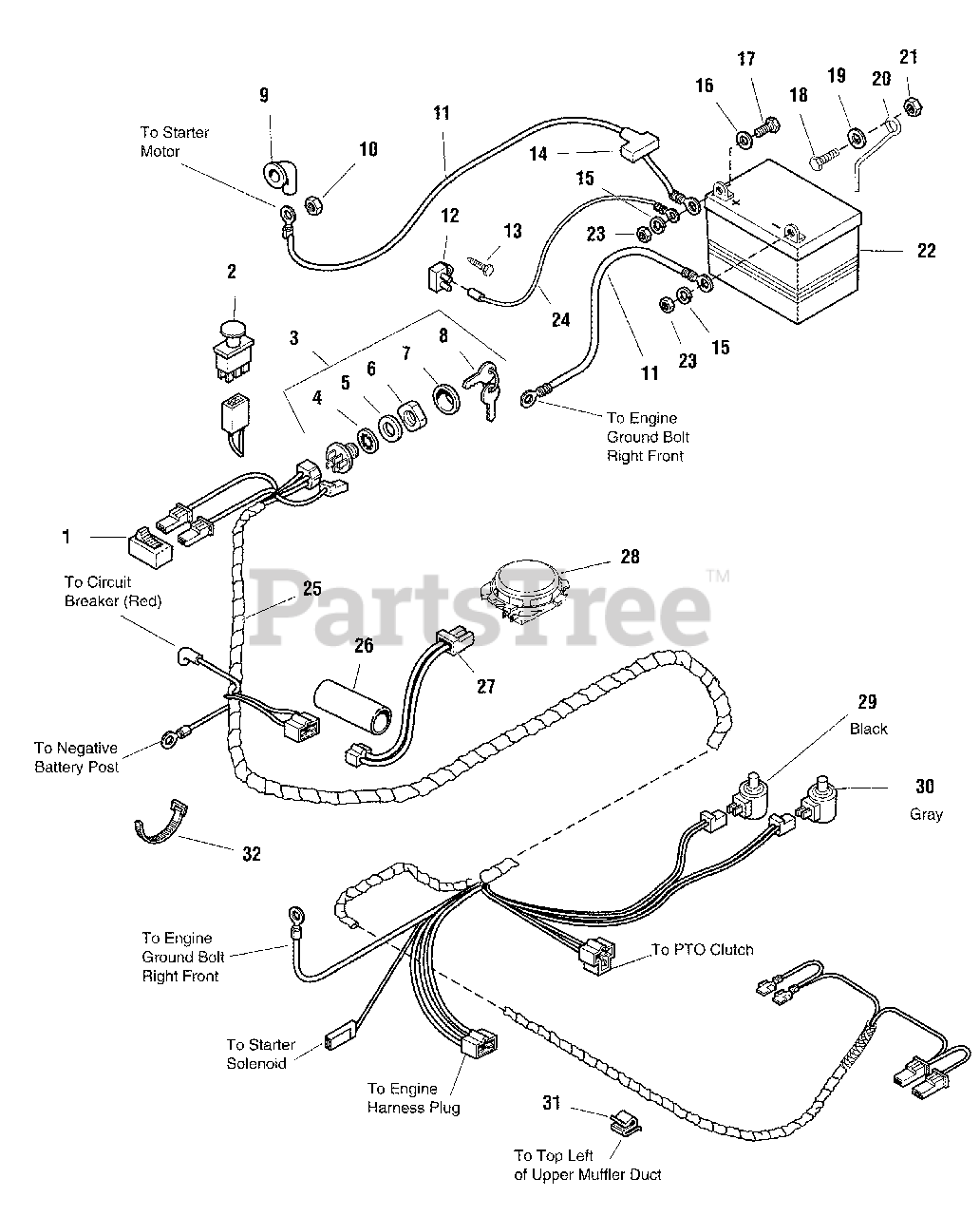

1694201 - Simplicity Regent 38" Lawn Tractor, 16hp Electrical Group Parts Diagram

Regent 38" Lawn Tractor, 16hp

Electrical Group Parts Diagram

  • Title

1

Simplicity 1703799SM

SWITCH, Rocker, Headlight

$31.99

$

In Stock, only 1 left!

0

2

Simplicity 1722887SM

SWITCH, PTO, Push Pull

$33.99

$

In Stock, Qty 20+

0

3

Simplicity 1686734SM

SWITCH ASSEMBLY, Ignition (Includes Ref. Nos. 4, 5, 6, 7 & 8)

$32.99

$

In Stock, Qty 20+

0

4

Simplicity 1960547SM

LOCKWASHER, Internal Tooth

$4.49

$

In Stock, only 4 left!

0

5

Simplicity 2101025SM

WASHER

$4.49

$

Usually ships in 2-12 days

0

6

Simplicity 1717549SM

NUT, Hex Flange, 5/8-32
(Superseded to 847144)

$10.99

$

Usually ships in 2-12 days

0

7

Simplicity 1717550SM

COVER, Ignition Switch
(Superseded to 847150)

$8.49

$

In Stock, Qty 16

0

8

Simplicity 1717163SM

KEY, Ignition

$8.99

$

In Stock, Qty 20+

0

9

Simplicity 1713535SM

BOOT, Insulator

$5.99

$

Usually ships in 2-12 days

0

10

Simplicity 2860433SM

NUT, Hex Flange, 8MM x 1.25, Yellow

$3.49

$

Usually ships in 2-12 days

0

11

Simplicity 1723109SM

CABLE, # 6 x 52-1/2" Long

$16.99

$

Usually ships in 2-12 days

0

12

Simplicity 1665238SM

BREAKER, Circuit, 12 Volt 20 Amps

$14.99

$

In Stock, Qty 20+

0

13

Simplicity 1927429SM

SCREW, Hex Head, Taptite, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 9

0

14

Simplicity 1677296SM

BOOT, Insulator, Battery Terminal

$6.49

$

In Stock, Qty 11

0

15

Simplicity 2816964SM

LOCKWASHER
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

16

Simplicity 2821319SM

WASHER
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

17

Simplicity 2823341SM

CAPSCREW, Hex Head, 1/4-20 x 3/4
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

18

Simplicity 1921332SM

CAPSCREW, Hex Head, 5/16 x 18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

19

Simplicity 1919326SM

WASHER

$4.49

$

In Stock, Qty 9

0

20

Simplicity 1723048SM

ROD, Battery Hold Down

$3.99

$

Usually ships in 2-12 days

0

21

Simplicity 1919438SM

NUT, Hex Lock ESNA, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

22

Simplicity 1685215SM

BATTERY, 12 Volt

$

$

Not available

23

Simplicity 2816622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

24

Simplicity 1721831SM

WIRE, #12 x 11" Long

$7.49

$

Usually ships in 2-12 days

0

25

Simplicity 1723675SM

HARNESS, Wiring, For Honda Engines with 6 Pin Engine Connector

$

$

Not available

25

Simplicity 1724872SM

HARNESS, Wiring, For Honda Engines with out 6 Pin Engine Connector

$110.99

$

Usually ships in 2-12 days

0

26

Simplicity 1715014SM

SHRINK TUBE, 3" Long

$4.99

$

Usually ships in 2-12 days

0

27

Simplicity 1715010SM

WIRE ASSEMBLY

$8.49

$

Usually ships in 2-12 days

0

28

Simplicity 1714771SM

SWITCH, Seat, Gray Switch, Gray Retainer

Note: (Regent 16HP Domestic 1694200 - SERIAL NO. 09000-09120, 10000-10411, Regent 16HP Domestic 1694313 - SERIAL NO. 09000-09060, 10000-10001, Regent 16HP Export - SERIAL NO. 09000-09012 & 2526H 16HP Domestic - SERIAL NO. 09000-09025 Only)

$20.99

$

In Stock, only 1 left!

0

28

Simplicity 1718981SM

SWITCH, Seat, Gray Switch, Black Retainer

$21.99

$

In Stock, only 1 left!

0

29

Simplicity 1720411SM

SWITCH, NO, Black, Push Button W/Boot

$14.99

$

In Stock, only 2 left!

0

30

Simplicity 1720401SM

SWITCH, NC, Gray, Push Button, W/Boot

$14.99

$

In Stock, only 1 left!

0

31

Simplicity 2834683SM

CLIP, Wire
(Superseded to 2172434SM)

$4.99

$

Usually ships in 2-12 days

0

32

Simplicity 1701011SM

TIE, Self Locking

$5.49

$

In Stock, only 2 left!

0

33

Simplicity 1724017SM

CABLE, Red, # 6 x 52-1/2" Long

$11.99

$

Usually ships in 2-12 days

0

34

Simplicity 1725403SM

TAG, Battery Charge, Warranty

$

$

Not available
