1694197 - Simplicity Hitch, Sub Frame Snow Thrower Hitch - Drive Group Parts Diagram

Hitch, Sub Frame Snow Thrower

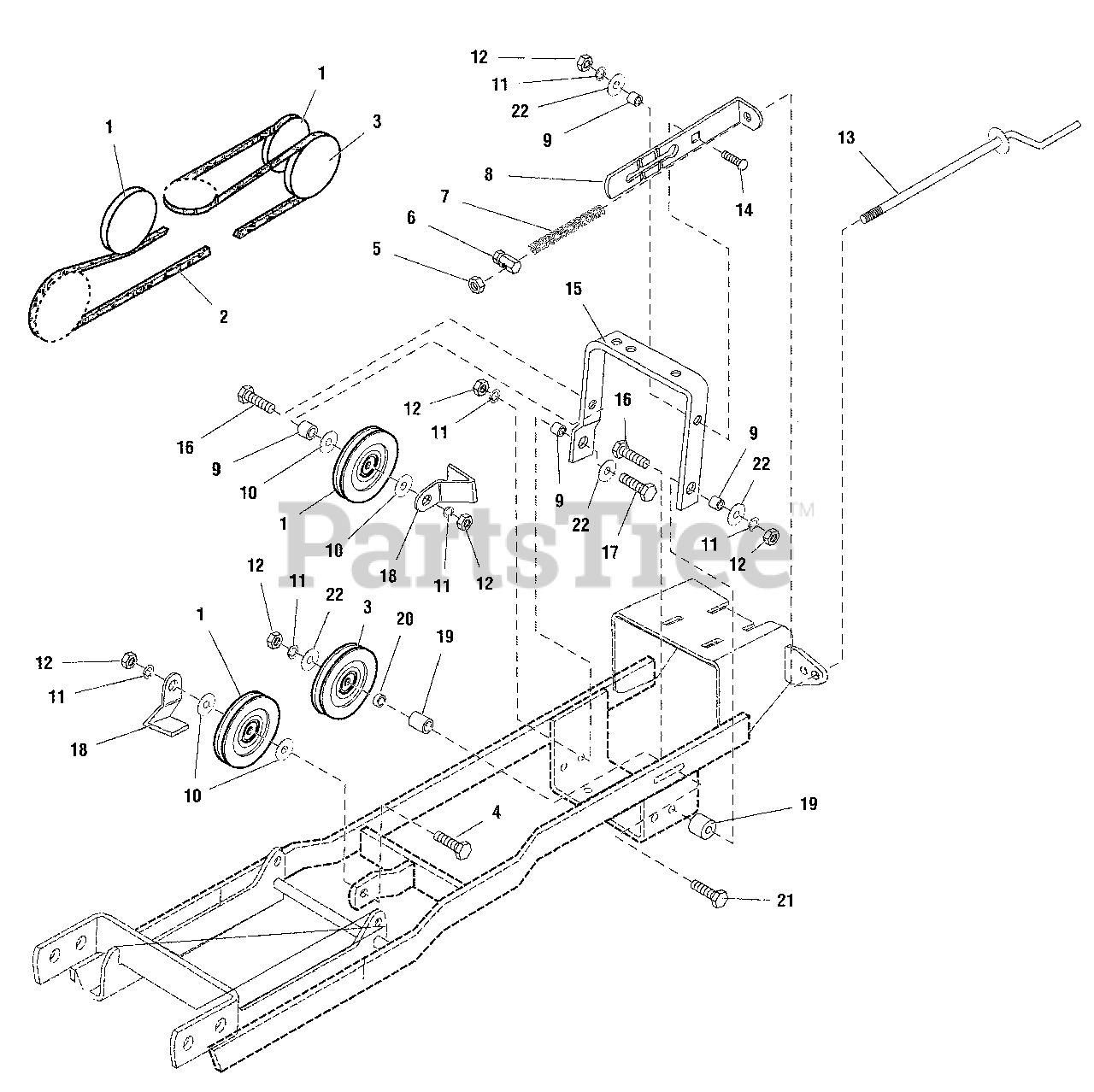

Hitch - Drive Group Parts Diagram

  • Title

1

Simplicity 2171247SM

PULLEY, Flat

$51.99

$

In Stock, Qty 20+

0

2

Simplicity 1703371SM

V-BELT

$82.99

$

In Stock, Qty 11

0

3

Simplicity 1666287ASM

PULLEY ASSEMBLY

$91.99

$

Usually ships in 2-12 days

0

4

Simplicity 1921971SM

CAPSCREW, Hex Head, 3/8-16 x 3/4
(Superseded to 704289)

$4.99

$

In Stock, Qty 13

0

5

Simplicity 1930645SM

NUT, Hex Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

6

Simplicity 1704743SM

TRUNNION

$37.99

$

Usually ships in 2-12 days

0

7

Simplicity 1668282SM

SPRING

$22.99

$

Usually ships in 2-12 days

0

8

Simplicity 1722972A

GUIDE ASSEMBLY, Spring
(Superseded to 1722972ASM)

$79.99

$

Usually ships in 2-12 days

0

9

Simplicity 2158227SM

SPACER

$32.99

$

In Stock, only 1 left!

0

10

Simplicity 1922755SM

WASHER, 3/8 x 1 x 1/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 11

0

11

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

12

Simplicity 1916950SM

NUT Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

13

Simplicity 1723681SM

ROD ASSEMBLY
(Superseded to 1757604YP)

$92.99

$

Usually ships in 2-12 days

0

14

Simplicity 1960268SM

CARRIAGE BOLT, 3/8-16 x 1-1/4

$4.49

$

In Stock, Qty 10

0

15

Simplicity 1722963ASM

PIVOT BRACKET

$21.99

$

Usually ships in 2-12 days

0

16

Simplicity 1923701SM

CAPSCREW, Hex Head, 3/8-16 x 2
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

17

Simplicity 1920415SM

CAPSCREW, Hex Head, 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

18

Simplicity 2162115SM

BELT GUIDE
(Superseded to 2162115ASM)

$12.99

$

Usually ships in 2-12 days

0

19

Simplicity 1667812SM

SPACER

$5.99

$

In Stock, Qty 16

0

20

Simplicity 1666294SM

SPACER

$4.99

$

In Stock, Qty 20+

0

21

Simplicity 1960244SM

CAPSCREW, Hex Head Whiz Lock, 3/8-16 x 2-3/4
(Superseded to 704037)

$5.99

$

Usually ships in 2-12 days

0

22

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0
