1694158 - Simplicity Clean Sweep Triple Grass Catcher Triple Catcher Group Parts Diagram

Clean Sweep Triple Grass Catcher

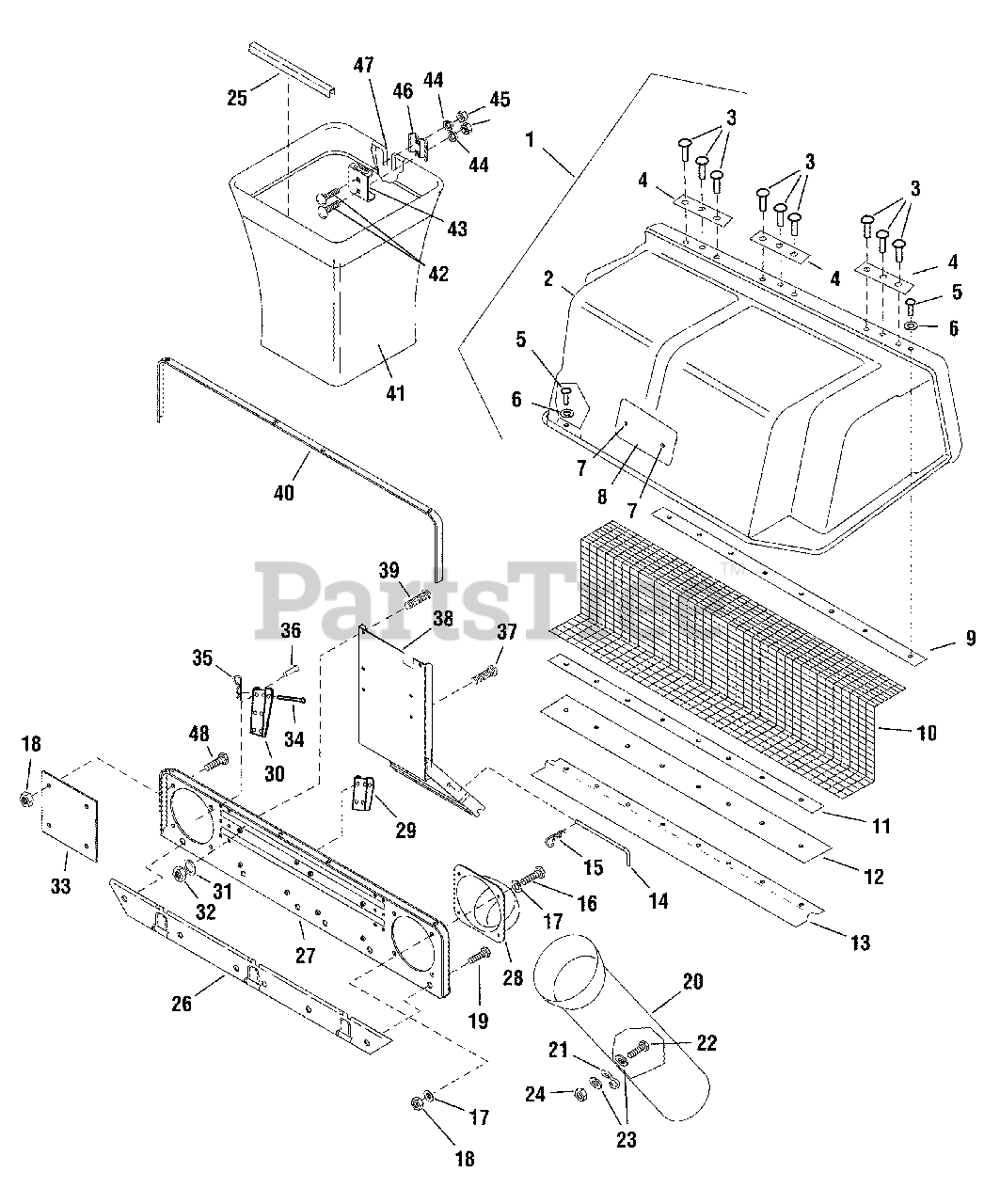

Triple Catcher Group Parts Diagram

  • Title

1

Simplicity 1717025SM

COVER & SCREEN ASSEMBLY (Inc. Ref. No. 2,3,4,5,6,9,10,11,12,13)
(Superseded to 3046862YP)

$740.99

$

Usually ships in 2-12 days

0

2

Simplicity 1717025SM

COVER, GRASS CATCHER
(Superseded to 3046862YP)

$740.99

$

Usually ships in 2-12 days

0

3

Simplicity 1960241SM

RIVET

$5.49

$

Usually ships in 2-12 days

0

4

Simplicity 1717067ASM

PLATE ASSSEMBLY

$30.99

$

Usually ships in 2-12 days

0

5

Simplicity 2825160SM

RIVET

$4.49

$

In Stock, Qty 8

0

6

Simplicity 1910531SM

WASHER

$3.99

$

Usually ships in 2-12 days

0

7

Simplicity 1667248SM

CLIP, Canoe

$3.49

$

Usually ships in 2-12 days

0

8

Simplicity 1732820SM

DECAL, Saftey

$77.99

$

In Stock, only 1 left!

0

9

Simplicity 1716970ASM

CLAMP

$42.99

$

Usually ships in 2-12 days

0

10

Simplicity 1717041SM

SCREEN

$43.99

$

Usually ships in 2-12 days

0

11

Simplicity 1717524SM

CLAMP, Seal
(Superseded to 1717524ASM)

$13.99

$

In Stock, only 2 left!

0

12

Simplicity 1716968SM

SEAL

$32.99

$

Usually ships in 2-12 days

0

13

Simplicity 1716972ASM

ANGLE, Screen

$42.99

$

In Stock, only 2 left!

0

14

Simplicity 1717085SM

ROD

$50.99

$

In Stock, only 2 left!

0

15

Simplicity 1960033SM

HAIR PIN

$3.49

$

In Stock, Qty 20+

0

16

Simplicity 1921333SM

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

17

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 5

0

18

Simplicity 1919438SM

LOCKNUT, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

19

Simplicity 1925003SM

CAPSCREW, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, only 1 left!

0

20

Simplicity 1719807SM

TUBE

$152.99

$

Usually ships in 2-12 days

0

21

Simplicity 1672689SM

HOOK, "S"

$31.99

$

Usually ships in 2-12 days

0

22

Simplicity 1924009SM

CAPSCREW, Hex Head 1/4-20 x 7/8
(Superseded to 703819)

$4.49

$

Usually ships in 2-12 days

0

23

Simplicity 1921319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

24

Simplicity 1920397SM

LOCKNUT, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

25

Simplicity 1675707SM

EDGING

$6.49

$

In Stock, only 3 left!

0

26

Simplicity 1716973ASM

BRACKET ASSEMBLY

$370.99

$

Usually ships in 2-12 days

0

27

Simplicity 1716966ASM

PLATE ASSEMBLY

$225.99

$

Usually ships in 2-12 days

0

28

Simplicity 1717038SM

DUCT INLET

$125.99

$

Usually ships in 2-12 days

0

29

Simplicity 1720945ASM

HINGE

$12.99

$

Usually ships in 2-12 days

0

30

Simplicity 1720875ASM

HINGE

$16.99

$

Usually ships in 2-12 days

0

31

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

32

Simplicity 1917372SM

NUT, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

33

Simplicity 1725969SM

COVER

$29.99

$

Usually ships in 2-12 days

0

34

Simplicity 1672344SM

PIN, 3/8 x 2-3/4

$6.49

$

In Stock, only 2 left!

0

35

Simplicity 1960074SM

PIN, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

36

Simplicity 2828707SM

RIVET

$3.99

$

Usually ships in 2-12 days

0

37

Simplicity 1960223SM

CARRIAGE BOLT, 5/16-18 x 1-1/4
(Superseded to 703446)

$4.49

$

In Stock, Qty 5

0

38

Simplicity 1723140SM

SUPPORT ASSSEMBLY
(Superseded to 1725579ASM)

$444.99

$

Usually ships in 2-12 days

0

39

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

40

Simplicity 1717082SM

SEAL

$70.99

$

Usually ships in 2-12 days

0

41

Simplicity 1703764SM

BAG, Grass

$96.99

$

In Stock, Qty 12

0

42

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

43

Simplicity 1703807ASM

HANGER

$21.99

$

In Stock, only 1 left!

0

44

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

45

Simplicity 1917372SM

NUT, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

46

Simplicity 1672023ASM

CLIP

$11.99

$

Usually ships in 2-12 days

0

47

Simplicity 1703855ASM

HOOP, Basket Frame

$139.99

$

Usually ships in 2-12 days

0

48

Simplicity 1921332SM

CAPSCREW, 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 8

0
