1694148 - Simplicity Lift Lever Kit Lift Lever Kit Parts Diagram

Lift Lever Kit

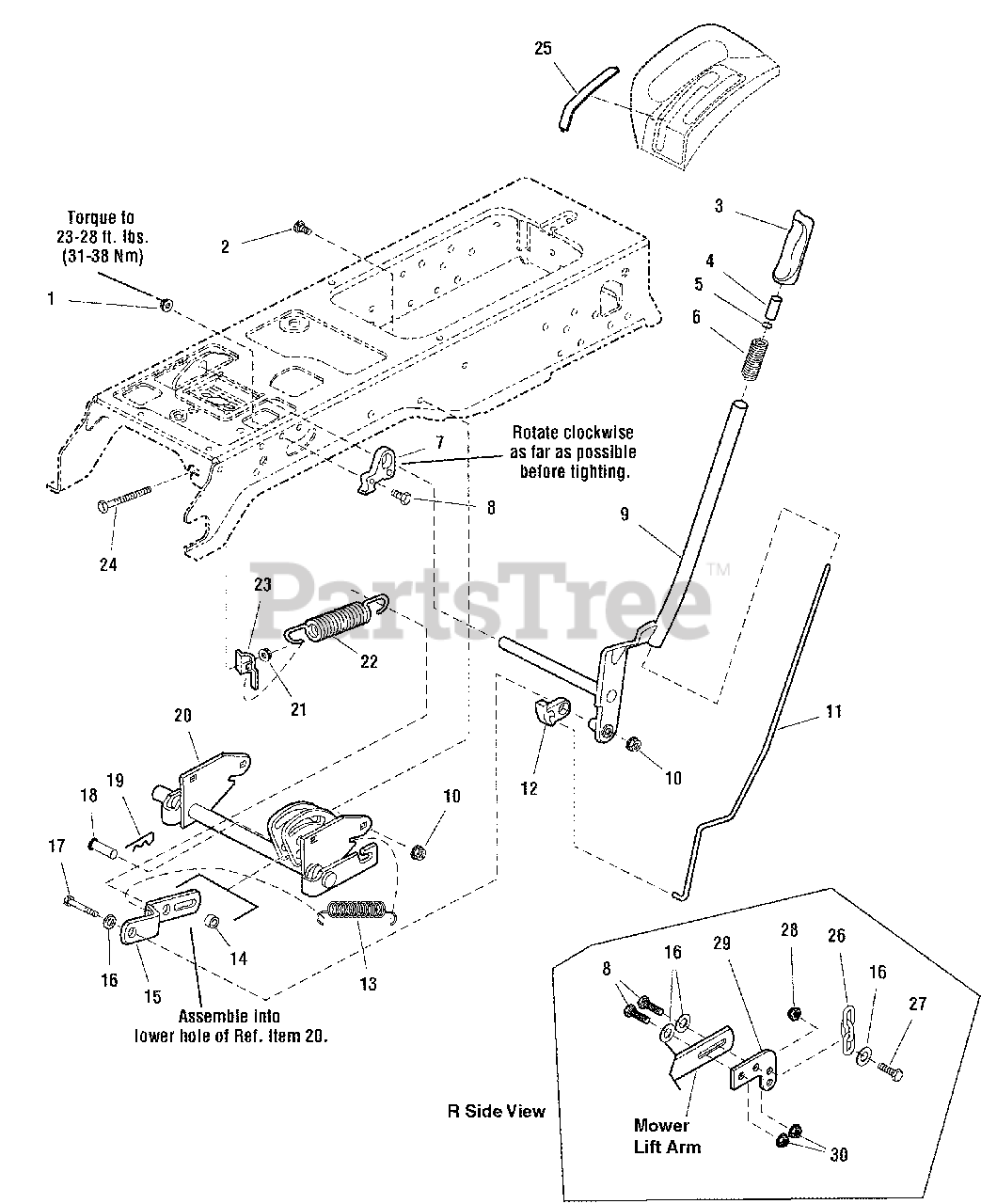

Lift Lever Kit Parts Diagram

  • Title

1

Simplicity 1927557SM

NUT, Flange, 5/16-18

$4.99

$

Usually ships in 2-12 days

0

2

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

3

Simplicity 1722291SM

GRIP, Lift Lever

$11.99

$

In Stock, Qty 11

0

4

Simplicity 1723124SM

BUTTON, Red Nylon, for 1/4 Rod

$5.99

$

In Stock, Qty 20+

0

5

Simplicity 1960674SM

NUT, Push Pal 1/4 Diameter Thread
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 1723321SM

SPRING, Compression, Lift Lever

$6.99

$

In Stock, Qty 5

0

7

Simplicity 1721581SM

QUADRANT, Lift, Powdered Metal

$11.99

$

In Stock, only 2 left!

0

8

Simplicity 1926149SM

CAPSCREW, 5/16-18 x 1, G8

$4.49

$

Usually ships in 2-12 days

0

9

Simplicity 1721712ASM

LEVER ASSEMBLY, Lift

$198.99

$

Usually ships in 2-12 days

0

10

Simplicity 1960636SM

NUT, Hex, 5/16-18

$4.99

$

In Stock, only 1 left!

0

11

Simplicity 1722482SM

ROD, Latch

$28.99

$

In Stock, only 3 left!

0

12

Simplicity 1722112SM

LOCK, Lift, Powdered Metal

$16.99

$

In Stock, Qty 9

0

13

Simplicity 2156302SM

SPRING, Extension

$6.49

$

In Stock, Qty 20+

0

14

Simplicity 1723163SM

SPACER, 1/2 x 3/4 x 23/32

$7.99

$

Usually ships in 2-12 days

0

15

Simplicity 1723795ASM

BAR, Lift Link

$16.99

$

Usually ships in 2-12 days

0

16

Simplicity 1919381SM

WASHER, 5/16, Black
(Superseded to 703298)

$4.49

$

In Stock, only 2 left!

0

17

Simplicity 1921160SM

CAPSCREW, Hex Head, 5/16-18 x 2-1/4

$4.99

$

Usually ships in 2-12 days

0

18

Simplicity 1722819SM

PIN, Flat Head, 1/2 x 2-1/8

$6.99

$

In Stock, Qty 6

0

19

Simplicity 1960033SM

CLIP, Hair Pin, 2-9/16 Long

$3.49

$

In Stock, Qty 20+

0

20

Simplicity 1727436SM

SHAFT ASSEMBLY, Lift
(Superseded to 1727436ASM)

$256.99

$

Usually ships in 2-12 days

0

21

Simplicity 1935255SM

NUT, Speed, 5/16-18, Lug

$3.49

$

In Stock, only 4 left!

0

22

Simplicity 1675232SM

SPRING, Extension

$20.99

$

Usually ships in 2-12 days

0

23

Simplicity 1723499SM

RETAINER, Spring Flat

$8.49

$

In Stock, only 3 left!

0

24

Simplicity 1722357SM

CAPSCREW, Hex Head, 5/16-18 x 4-1/2

$17.99

$

Usually ships in 2-12 days

0

25

Simplicity 1724378SM

COVER, Hand Control

$5.49

$

Usually ships in 2-12 days

0

26

Simplicity 1707514ASM

CHAIN, 3-Link

$14.99

$

In Stock, only 1 left!

0

27

Simplicity 1930570SM

CAPSCREW, Hex Head, 5/16-18 x 1-1/2

$4.49

$

Usually ships in 2-12 days

0

28

Simplicity 1919438SM

NUT, Nylock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

29

Simplicity 1724432ASM

ARM, Lift, Duel, Mower

$8.49

$

Usually ships in 2-12 days

0

30

Simplicity 1931277SM

NUT, Whizlock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

31

Simplicity 1921221SM

CAPSCREW, 5/16 x 1 1/2
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0
