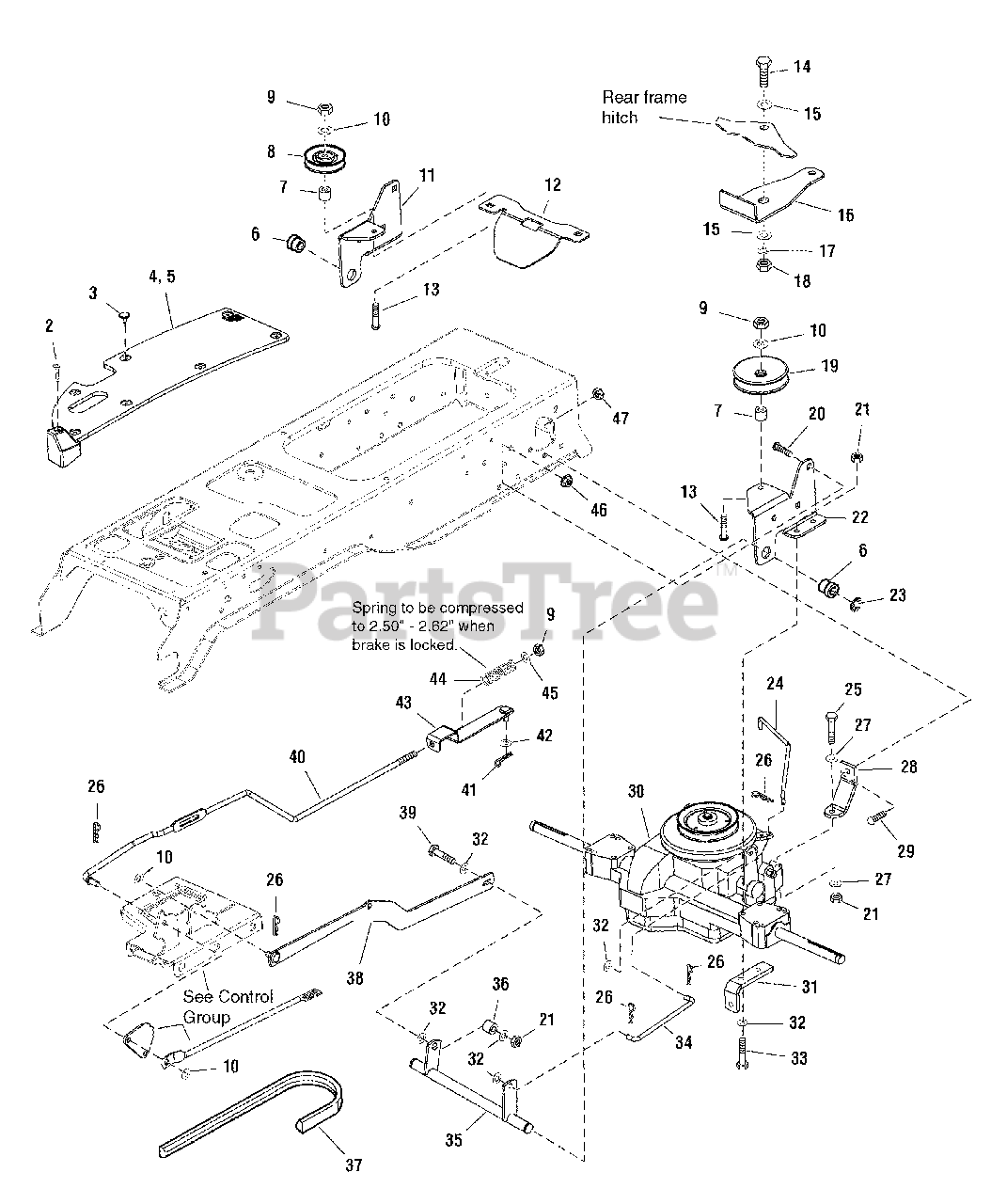

1694099 - Simplicity Baron 40" Lawn Tractor, 16hp Transmission Group Parts Diagram

Baron 40" Lawn Tractor, 16hp

Transmission Group Parts Diagram

  • Title

2

Simplicity 1960676SM

SCREW, Pan Head Torx TT 1/4-20 x 1-1/4

$4.49

$

Usually ships in 2-12 days

0

3

Simplicity 1704351SM

FASTENER, Panel

$4.99

$

In Stock, only 4 left!

0

4

Simplicity 1722173SM

PAD, Footrest, RH

$32.99

$

Usually ships in 2-12 days

0

5

Simplicity 1722174SM

PAD, Footrest, LH

$30.99

$

Usually ships in 2-12 days

0

6

Simplicity 2176440SM

BUSHING

$4.99

$

In Stock, Qty 20+

0

7

Simplicity 1667812SM

SPACER

$5.99

$

In Stock, Qty 16

0

8

Simplicity 2174561SM

PULLEY, 3" OD

$53.99

$

Usually ships in 2-12 days

0

9

Simplicity 1919439SM

NUT, Hex Lock ESNA, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 1924940SM

WASHER
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

11

Simplicity 1723035SM

SUPPORT, Transmission, RH

$16.99

$

Usually ships in 2-12 days

0

12

Simplicity 1723037SM

BRACKET, Chute

$19.99

$

Usually ships in 2-12 days

0

13

Simplicity 1931355SM

CARRIAGE BOLT, 3/8-16 x 2-1/4

$5.99

$

In Stock, Qty 11

0

14

Simplicity 1921176SM

CAPSCREW, Hex Head, 1/2-13 x 1-1/4

$4.99

$

In Stock, only 1 left!

0

15

Simplicity 1960170SM

WASHER
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

16

Simplicity 1723704SM

DRAWBAR

$14.99

$

Usually ships in 2-12 days

0

17

Simplicity 1916966SM

LOCKWASHER, 1/2
(Superseded to 703341)

$4.49

$

In Stock, only 1 left!

0

18

Simplicity 1916951SM

NUT, Hex 1/2-13
(Superseded to 703340)

$7.99

$

In Stock, only 1 left!

0

19

Simplicity 2174497

PULLEY, 4" OD
(Superseded to 1723952SM)

$43.99

$

Usually ships in 2-12 days

0

20

Simplicity 1931350SM

CARRIAGE BOLT, 3/8-16 x 1
(Superseded to 703815)

$4.49

$

In Stock, only 4 left!

0

21

Simplicity 1919438SM

NUT, Hex Lock ESNA, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

22

Simplicity 1723036SM

SUPPORT, Transmisson, LH

$15.99

$

Usually ships in 2-12 days

0

23

Simplicity 2827794SM

RING, "E"

$3.49

$

In Stock, Qty 16

0

24

Simplicity 1723234SM

ROD

$10.99

$

Usually ships in 2-12 days

0

25

Simplicity 1921978SM

CAPSCREW, Hex Head, 5/16-18 x 2
(Superseded to 703867)

$4.99

$

In Stock, only 4 left!

0

26

Simplicity 1722460SM

PIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, only 1 left!

0

27

Simplicity 1960141SM

WASHER

$3.99

$

Usually ships in 2-12 days

0

28

Simplicity 1723042SM

STRAP, Torque

$8.99

$

Usually ships in 2-12 days

0

29

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

30

Simplicity 1721022SM

TRANSMISSION ASSEMBLY, K46

$632.99

$

Usually ships in 2-12 days

0

31

Simplicity 1723255SM

ANCHOR, Spring
(Superseded to 1723255ASM)

$13.99

$

Usually ships in 2-12 days

0

32

Simplicity 1919326SM

WASHER

$4.49

$

In Stock, Qty 6

0

33

Simplicity 1923141SM

CAPSCREW, Hex Head, 5/16-18 x 2-3/4
(Superseded to 703869)

$6.49

$

Usually ships in 2-12 days

0

34

Simplicity 1723045SM

ROD

$10.99

$

Usually ships in 2-12 days

0

35

Simplicity 1723038SM

SHAFT ASSEMBLY

$40.99

$

Usually ships in 2-12 days

0

36

Simplicity 1666697SM

SPACER

$6.49

$

In Stock, only 2 left!

0

37

Simplicity 1723268SM

V-BELT, Drive

$69.99

$

Usually ships in 2-12 days

0

38

Simplicity 1723043SM

ARM & PIN ASSEMBLY

$30.99

$

Usually ships in 2-12 days

0

39

Simplicity 1921333SM

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

40

Simplicity 1723090SM

ROD

$31.99

$

Usually ships in 2-12 days

0

41

Simplicity 1918447SM

PIN, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

42

Simplicity 1922755SM

WASHER
(Superseded to 704128)

$4.99

$

In Stock, Qty 9

0

43

Simplicity 1723267SM

BRACKET & PIN ASSEMBLY

$16.99

$

Usually ships in 2-12 days

0

44

Simplicity 1729277SM

SPRING, Compression

$6.99

$

In Stock, only 1 left!

0

45

Simplicity 1960103SM

WASHER

$4.49

$

In Stock, Qty 7

0

46

Simplicity 1960637SM

NUT, Hex KEPS, 3/8-16

$3.49

$

In Stock, only 1 left!

0

47

Simplicity 1960636SM

NUT, Hex KEPS, 5/16-18

$4.99

$

In Stock, only 1 left!

0
