1694099 - Simplicity Baron 40" Lawn Tractor, 16hp Steering Group Parts Diagram

Baron 40" Lawn Tractor, 16hp

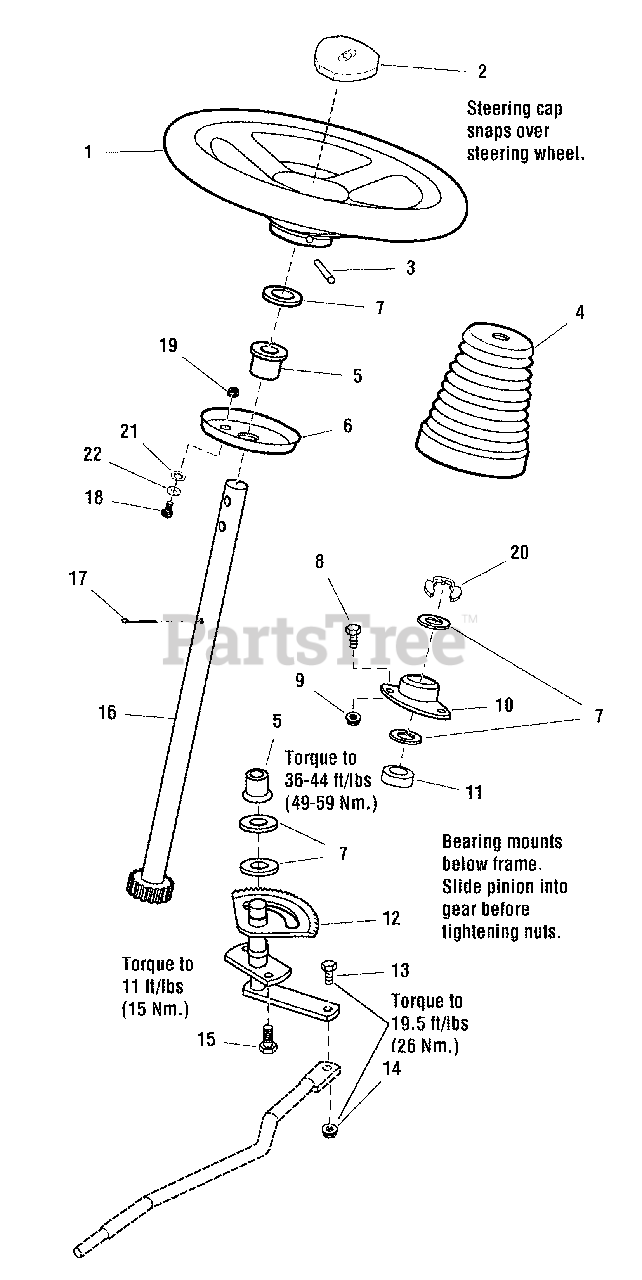

Steering Group Parts Diagram

  • Title

1

Simplicity 1722318SM

STEERING WHEEL, Straight Shaft

$110.99

$

In Stock, Qty 5

0

2

Simplicity 1722319SM

CAP, Steering Wheel, Simplicity

Note: (Decal Not Included)

$14.99

$

In Stock, only 3 left!

0

2

Simplicity 1725024SM

CAP, Steering Wheel, Plain

$7.49

$

In Stock, only 1 left!

0

3

Simplicity 1960540SM

PIN, Spring

$4.49

$

In Stock, Qty 11

0

4

Simplicity 1722749SM

COVER, Black Rubber

$

$

Not available

5

Simplicity 2176440SM

BUSHING

$4.99

$

In Stock, Qty 20+

0

6

Simplicity 1721736ASM

PLATE, Mounting Steering

$10.99

$

Usually ships in 2-12 days

0

7

Simplicity 1960114SM

WASHER
(Superseded to 703151)

$3.49

$

In Stock, Qty 20+

0

8

Simplicity 1933260SM

CAPSCREW, Hex Head Flange Lock, 3/8-16 x 3/4
(Superseded to 703955)

$4.49

$

In Stock, Qty 6

0

9

Simplicity 1931211SM

NUT, Hex Whiz Lock, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

10

Simplicity 1722459SM

BEARING, Flange

$11.99

$

In Stock, Qty 20+

0

11

Simplicity 1722461SM

SPACER

$26.99

$

In Stock, Qty 14

0

12

Simplicity 1724470ASM

GEAR & SHAFT ASSEMBLY

$152.99

$

In Stock, Qty 12

0

13

Simplicity 1960032SM

CAPSCREW, Hex Head, 3/8-16 x 1-1/4

$5.49

$

In Stock, only 1 left!

0

14

Simplicity 1930645SM

NUT, Hex Flange Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

15

Simplicity 1664847SM

CAPSCREW, Hex Head Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

16

Simplicity 1723604SM

SHAFT ASSEMBLY

$79.99

$

Usually ships in 2-12 days

0

17

Simplicity 1919314SM

PIN, Cotter

$3.49

$

In Stock, Qty 7

0

18

Simplicity 1931317SM

CARRIAGE BOLT, 1/4-20 x 3/4
(Superseded to 703101)

$3.99

$

In Stock, only 3 left!

0

19

Simplicity 2828372SM

NUT, Hex,1/4-20
(Superseded to 703914)

$3.49

$

In Stock, Qty 16

0

20

Simplicity 1611710SM

RING, Clipring Extension

$4.49

$

In Stock, Qty 20+

0

21

Simplicity 1960114SM

WASHER
(Superseded to 703151)

$3.49

$

In Stock, Qty 20+

0

22

Simplicity 1933988SM

NUT, Push, 5/16
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0
