1694099 - Simplicity Baron 40" Lawn Tractor, 16hp Seat Deck & Fuel Tank Group Parts Diagram

Baron 40" Lawn Tractor, 16hp

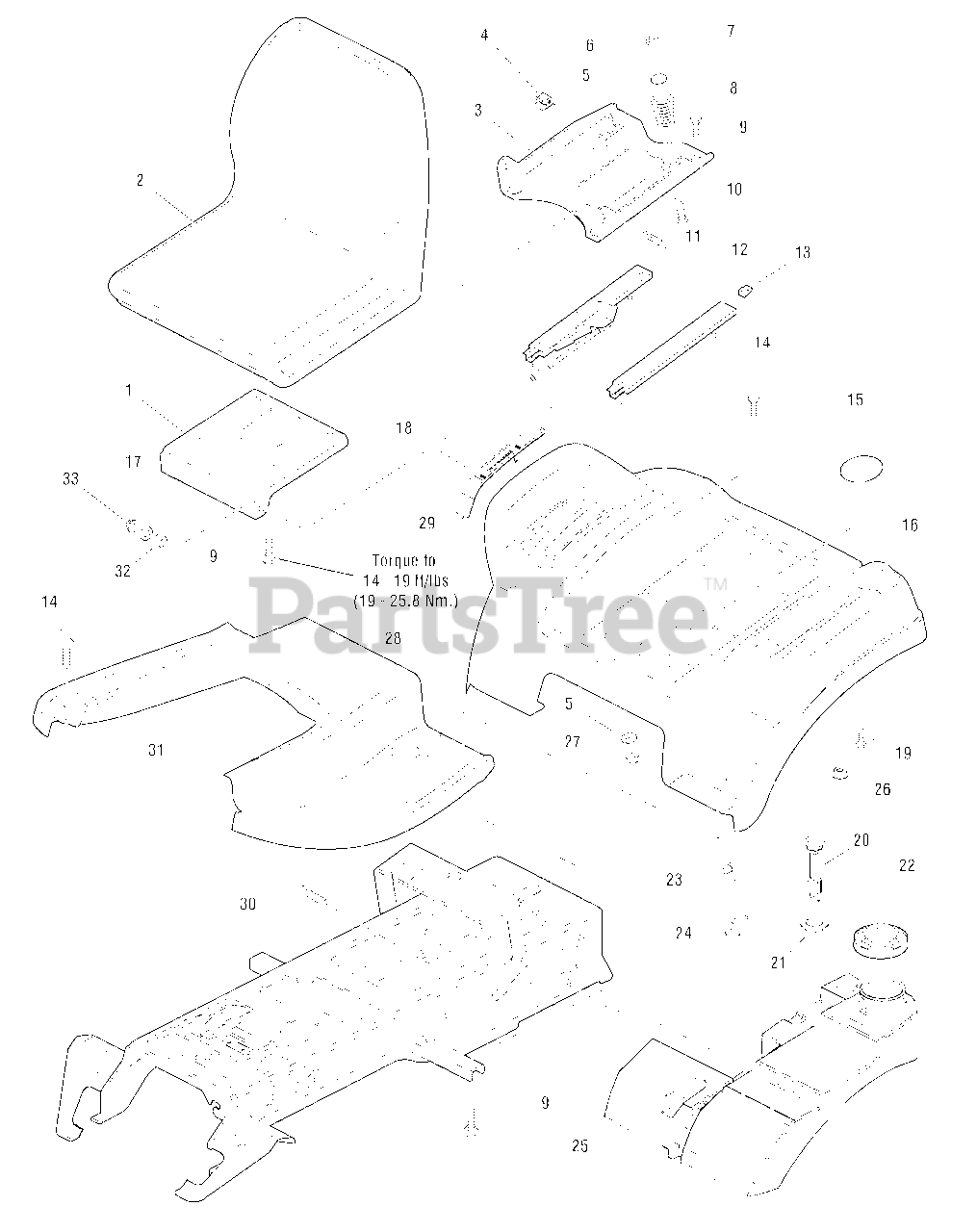

Seat Deck & Fuel Tank Group Parts Diagram

  • Title

1

Simplicity 1722129ASM

BRACKET, Seat

$62.99

$

Usually ships in 2-12 days

0

2

Simplicity 1687201SM

SEAT, 15" Back, Simplicity Logo

$

$

Not available

3

Simplicity 1722128ASM

SUPPORT, Seat

$87.99

$

Usually ships in 2-12 days

0

4

Simplicity 2172434SM

CLIP, Wire

$4.99

$

Usually ships in 2-12 days

0

5

Simplicity 1709256SM

WASHER, Spring

$5.99

$

In Stock, only 2 left!

0

6

Simplicity 1714263SM

SPRING, Compression

$4.99

$

In Stock, only 1 left!

0

7

Simplicity 1919438SM

NUT, Hex Lock ESNA, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

8

Simplicity 1717051SM

SPRING, Compression

$13.99

$

In Stock, Qty 20+

0

9

Simplicity 770697

CAPSCREW, Hex Head Dog Point, 5/16-18 x 3/4

$

$

Not available

10

Simplicity 1931339SM

CARRIAGE BOLT, 5/16-18 x 2
(Superseded to 704035)

$4.49

$

In Stock, only 2 left!

0

11

Simplicity 1931350SM

CARRIAGE BOLT, 3/8-16 x 1
(Superseded to 703815)

$4.49

$

In Stock, only 4 left!

0

12

Simplicity 1722356SM

SLIDE, Seat, (2 Piece Set)

$62.99

$

In Stock, only 1 left!

0

13

Simplicity 1935255SM

NUT, Speed, 5/16-18

$3.49

$

In Stock, only 2 left!

0

14

Simplicity 1930601SM

CAPSCREW, Hex Head Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

15

Simplicity 1722309SM

PLUG, Hole Black

$5.99

$

In Stock, Qty 11

0

16

Simplicity 1729711SM

POD, LH, w/Cup holder
(Superseded to 1687789YP)

$103.99

$

Usually ships in 2-12 days

0

17

Simplicity 1924940SM

WASHER
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

18

Simplicity 1722313SM

COVER, Cruise, w/Symbols

$3.49

$

In Stock, only 1 left!

0

19

Simplicity 1921959SM

CAPSCREW, Hex Head, 1/4-20 x 5/8
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 18

0

20

Simplicity 1722300SM

GAS GAUGE

$34.99

$

Usually ships in 2-12 days

0

21

Simplicity 1722337SM

GROMMET

$8.99

$

In Stock, only 1 left!

0

22

Simplicity 1715917SM

CAP, Gas
(Superseded to 5101651SM)

$30.99

$

In Stock, Qty 20+

0

23

Simplicity 1726902SM

TUBE & ELBOW ASSEMBLY, with Screen, Fuel
(Superseded to 1757609YP)

$19.99

$

Usually ships in 2-12 days

0

24

Simplicity 1654930SM

BUSHING

$7.99

$

In Stock, Qty 20+

0

25

Simplicity 1722652SM

TANK, Fuel

$239.99

$

Usually ships in 2-12 days

0

26

Simplicity 1931277SM

NUT, Hex Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

27

Simplicity 1960636SM

NUT, Hex KEPS, 5/16-18

$4.99

$

In Stock, only 1 left!

0

28

Simplicity 1722671SM

DECK, Seat

$

$

Not available

28

Simplicity 1729745

DECK, Seat, Red
(Superseded to 1722671DSM)

$233.99

$

Usually ships in 2-12 days

0

29

Simplicity 1722108SM

POD, RH, w/2 Slots
(Superseded to 1687790YP)

$103.99

$

Usually ships in 2-12 days

0

30

Simplicity 1930591SM

CAPSCREW, Hex Head Flange Lock, 5/16-18 x 5/8
(Superseded to 703354)

$5.49

$

In Stock, Qty 10

0

31

Simplicity 1722105CSM

TUNNEL, Footrest

$481.99

$

In Stock, only 1 left!

0

32

Simplicity 1663752SM

SPACER

$5.99

$

In Stock, only 2 left!

0

33

Simplicity 1930645SM

NUT, Hex Flange Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0
