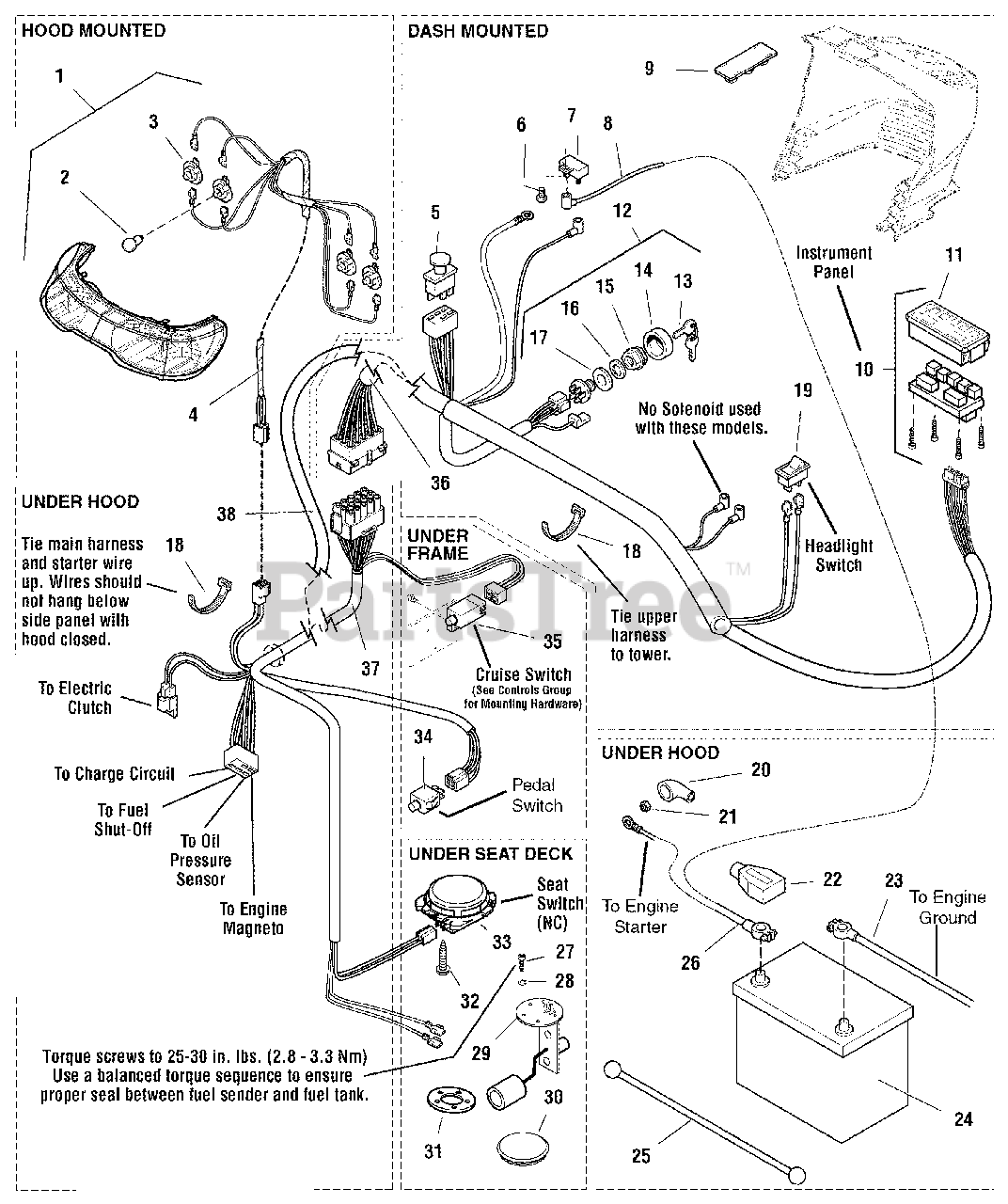

1694015 - Simplicity Prestige Garden Tractor, 20hp Electrical Group Parts Diagram

Prestige Garden Tractor, 20hp

Electrical Group Parts Diagram

  • Title

1

Simplicity 1721810SM

HEADLIGHT ASSEMBLY, 4 Bulb, (Includes Ref. Nos. 2 & 3)

$164.99

$

Usually ships in 2-12 days

0

2

Simplicity 1677371SM

BULB, Headlight, 12.8V

$30.99

$

In Stock, only 1 left!

0

3

Simplicity 1723451SM

SOCKET ASSEMBLY, Headlight, Sealed

$28.99

$

In Stock, only 1 left!

0

4

Simplicity 1722669SM

HARNESS, Headlight

$40.99

$

In Stock, only 1 left!

0

5

Simplicity 1722887SM

SWITCH, PTO, Push/Pull Symbols

$33.99

$

In Stock, Qty 20+

0

6

Simplicity 1925003SM

CAPSCREW, Hex Washer Head Taptite, 1/4-20 x 1/2, Black
(Superseded to 704130)

$3.99

$

In Stock, only 3 left!

0

7

Simplicity 1665238SM

BREAKER, Circuit, 12 Volt 20 Amps

$14.99

$

In Stock, Qty 20+

0

8

Simplicity 1665237SM

WIRE, 12GA 5.9" Long, Red

$11.99

$

In Stock, Qty 7

0

9

Simplicity 1722611SM

PLUG, Hole, Square

$6.99

$

In Stock, only 1 left!

0

10

Simplicity 1725074SM

PANEL, Instrument with Fuel Gauge & Hour Meter (Includes Ref. No. 11)

$290.99

$

Usually ships in 2-12 days

0

11

Simplicity 1724865SM

COVER, Instrument Panel

$13.99

$

Usually ships in 2-12 days

0

12

Simplicity 1686734SM

SWITCH ASSEMBLY, Ignition, 6 Pin INDAK, (Includes Ref. Nos. 13, 14, 15, 16 & 17)

$32.99

$

In Stock, Qty 20+

0

13

Simplicity 1717163SM

KEYS, Set of 2

$8.99

$

In Stock, Qty 20+

0

14

Simplicity 1717550SM

COVER, For Ignition Switch, Plastic
(Superseded to 847150)

$8.49

$

In Stock, Qty 15

0

15

Simplicity 1717549SM

NUT, Hex Flange, 5/8-32, Ignition Switch
(Superseded to 847144)

$10.99

$

Usually ships in 2-12 days

0

16

Simplicity 1960547SM

LOCKWASHER, Internal Tooth, 5/8, Thin

$4.49

$

In Stock, only 3 left!

0

17

Simplicity 2101025SM

WASHER, Shim

$4.49

$

Usually ships in 2-12 days

0

18

Simplicity 1701011SM

TIE, Self Locking

$5.49

$

In Stock, only 2 left!

0

19

Simplicity 1716951SM

SWITCH, Headlights , 2 Terminal

$21.99

$

In Stock, Qty 6

0

20

Simplicity 1713535SM

BOOT, Insulator Cable Terminal, Red

$5.99

$

In Stock, only 1 left!

0

21

Simplicity 2860433SM

NUT, Hex Flange M08-1.25

$3.49

$

Usually ships in 2-12 days

0

22

Simplicity 1713534SM

BOOT, Insulator Battery Terminal

$5.99

$

Usually ships in 2-12 days

0

23

Simplicity 1713163SM

CABLE, #6 x 26" Long, Ring Terminal

$24.99

$

In Stock, only 2 left!

0

24

Simplicity 1686714SM

BATTERY, 12 Volt 500 CCA

$

$

Not available

25

Simplicity 1722009SM

STRAP, Battery, 14" Long, Rubber

$10.99

$

In Stock, only 1 left!

0

26

Simplicity 1717001SM

CABLE, #4 26"

$

$

Not available

27

Simplicity 2860665SM

SCREW, Truss Head Phillips, #10-32 x 1/2

$3.49

$

Usually ships in 2-12 days

0

28

Simplicity 1917365SM

LOCKWASHER, Spring #10

$3.99

$

Usually ships in 2-12 days

0

29

Simplicity 1686921SM

SENDER, Fuel Tank

$88.99

$

Usually ships in 2-12 days

0

30

Simplicity 1722309SM

PLUG, Hole 3", Round

$5.99

$

In Stock, Qty 11

0

31

Simplicity 1685303SM

GASKET

$10.99

$

In Stock, Qty 5

0

32

Simplicity 1960536SM

CAPSCREW, Hex Washer Head Plastite, 1/4 x 1/2

$4.99

$

Usually ships in 2-12 days

0

33

Simplicity 1716368SM

SWITCH, Seat

$20.99

$

In Stock, only 1 left!

0

34

Simplicity 1732006SM

SWITCH, Push Button, Foot Pedal
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0

35

Simplicity 1676123SM

SWITCH, Cruise Control

$23.99

$

In Stock, only 1 left!

0

36

Simplicity 1722715SM

HARNESS, Wiring Upper

$

$

Not available

37

Simplicity 1724871SM

HARNESS, Wiring Lower (Models with 2 Piece Harness)

$112.99

$

Usually ships in 2-12 days

0

38

Simplicity 1725634SM

HARNESS, Wiring (Models with 1 Piece Harness)

$110.99

$

Usually ships in 2-12 days

0
