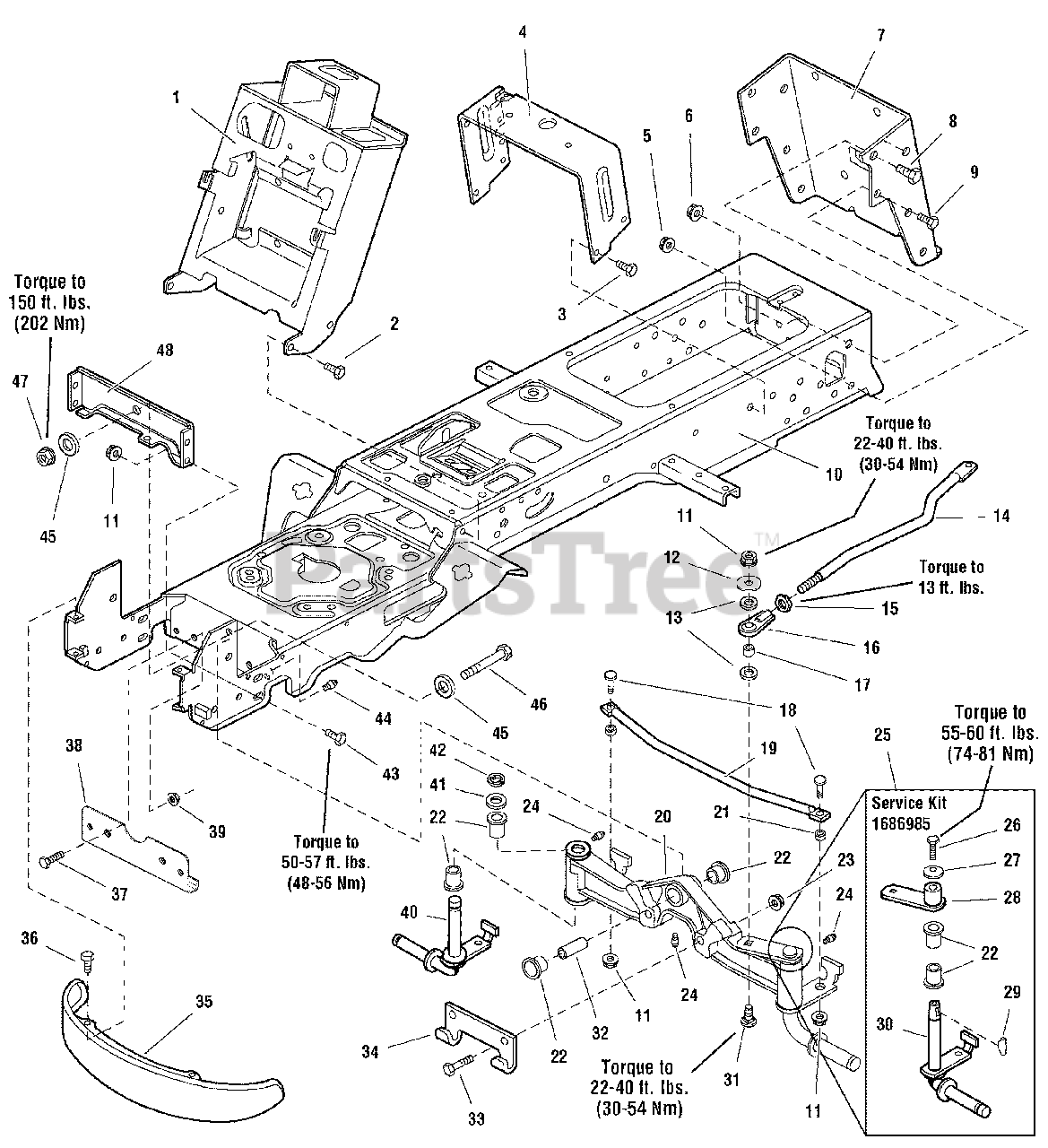

1694014 - Simplicity Conquest Garden Tractor, 20hp Frame Group Parts Diagram

Conquest Garden Tractor, 20hp

Frame Group Parts Diagram

  • Title

1

Simplicity 1724081ASM

TOWER & SUPPORT ASSEMBLY

$119.99

$

Usually ships in 2-12 days

0

2

Simplicity 1923683SM

CAPSCREW, Hex Washer Head Taptite, 3/8-16 x 3/4
(Superseded to 703950)

$5.49

$

In Stock, only 1 left!

0

3

Simplicity 1960541SM

CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 3/4

$3.49

$

Usually ships in 2-12 days

0

4

Simplicity 1723528ASM

SUPPORT, Seat Deck

$23.99

$

Usually ships in 2-12 days

0

5

Simplicity 1928352SM

NUT, Hex Flange 3/8-16 Whiz Lock, Large
(Superseded to 703793)

$4.49

$

In Stock, Qty 5

0

6

Simplicity 1930644SM

NUT, Hex Flange Two-Way Lock, 1/2-13

$3.49

$

In Stock, Qty 6

0

7

Simplicity 1722602ASM

BACKPLATE

$122.99

$

Usually ships in 2-12 days

0

8

Simplicity 1923114SM

CAPSCREW, Hex Head 1/2-13 x 1, Black

$3.99

$

In Stock, only 2 left!

0

9

Simplicity 1921210SM

CAPSCREW, Hex Head 3/8-16 x 1, Black
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

10

Simplicity 1726989SM

FRAME ASSEMBLY, Front & Rear
(Superseded to 1754506AYP)

$733.99

$

Usually ships in 2-12 days

0

11

Simplicity 1930645SM

NUT, Hex Flange Two-Way Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

12

Simplicity 1922755SM

WASHER, 3/8, Black
(Superseded to 704128)

$4.99

$

In Stock, Qty 11

0

13

Simplicity 1960103SM

WASHER, 3/8, Black

$4.49

$

In Stock, Qty 7

0

14

Simplicity 1722541SM

LINK, Drag

$31.99

$

In Stock, only 1 left!

0

15

Simplicity 1919262SM

NUT, Hex Jam 1/2-20
(Superseded to 703903)

$3.49

$

In Stock, Qty 20+

0

16

Simplicity 1702779SM

JOINT, Ball

$28.99

$

In Stock, Qty 14

0

17

Simplicity 1708236SM

SPACER, 3/8 x 1/2 x 5/8

$8.99

$

In Stock, Qty 10

0

18

Simplicity 1931350SM

CARRIAGE BOLT, 3/8-16 x 1
(Superseded to 703815)

$4.49

$

In Stock, only 4 left!

0

19

Simplicity 1722626ASM

ROD, Tie

$34.99

$

In Stock, only 1 left!

0

20

Simplicity 1722200ASM

AXLE ASSEMBLY w/LH Spindle, (Includes Ref. Nos. 22, 24, 41, 42 & 43)

$384.99

$

Usually ships in 2-12 days

0

21

Simplicity 1611705SM

SPACER, 25/64 x 5/8 x 5/16, Powder Metal

$4.49

$

In Stock, Qty 20+

0

22

Simplicity 1721682SM

BUSHING, 31/32 x 1-1/4 x 3/4, Powder Metal

$5.49

$

In Stock, Qty 20+

0

23

Simplicity 1930650SM

NUT, Hex Flange Two-Way Lock, 7/16-14

$5.49

$

In Stock, only 4 left!

0

24

Simplicity 2821133SM

FITTING, Lube
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

25

Simplicity 1686985SM

SPINDLE REPLACEMENT KIT, LH (Includes Ref. Nos. 22, 26, 27, 28, 29 & 30)

$

$

Not available

26

Simplicity 2823485SM

CAPSCREW, 3/8-16 x 7/8, GR8

$4.49

$

In Stock, only 1 left!

0

27

Simplicity 1663151SM

WASHER, Spring, 3/8

$14.99

$

Usually ships in 2-12 days

0

28

Simplicity 1725112SM

HUB & ARM ASSEMBLY
(Superseded to 1725112ASM)

$149.99

$

In Stock, only 1 left!

0

29

Simplicity 2830671SM

KEY, Woodruff

$8.49

$

Usually ships in 2-12 days

0

30

Simplicity 1724264SM

SPINDLE, LH
(Superseded to 1686985SM)

$

$

Not available

31

Simplicity 1931352SM

CARRIAGE BOLT, 3/8-16 x 1-1/2

$4.49

$

Usually ships in 2-12 days

0

32

Simplicity 1721752SM

SPACER, 11/16 x 21/32 x 2 3/32

$14.99

$

In Stock, Qty 19

0

33

Simplicity 1927531SM

CAPSCREW, Hex Head, 7/16-14 x 2 G8

$5.49

$

In Stock, Qty 5

0

34

Simplicity 1721918ASM

HOOK, "J"

$31.99

$

In Stock, Qty 9

0

35

Simplicity 1721805ASM

BUMPER, Black

$59.99

$

Usually ships in 2-12 days

0

35

Simplicity 1723502SM

BUMPER, Chrome

$128.99

$

Usually ships in 2-12 days

0

36

Simplicity 1960086SM

SCREW, Truss Head Torque Drive, 5/16-18 x 7/8

$4.99

$

In Stock, only 2 left!

0

37

Simplicity 1930591SM

CAPSCREW, Hex Whiz Lock, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

38

Simplicity 1724801ASM

PLATE, Axle Wear

$26.99

$

In Stock, only 1 left!

0

39

Simplicity 1931277SM

NUT, Hex Flange Whix Lick, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

40

Simplicity 1722199SM

SPINDLE, RH
(Superseded to 1722199AYP)

$

$

Not available

41

Simplicity 1919394SM

WASHER
(Superseded to 703149)

$3.49

$

In Stock, Qty 20+

0

42

Simplicity 2832577SM

RING, Retainer

$4.49

$

In Stock, Qty 20+

0

43

Simplicity 1933260SM

CAPSCREW, Hex Flange Whiz Lock, 3/8-16 x 3/4
(Superseded to 703955)

$4.49

$

In Stock, Qty 6

0

44

Simplicity 2821133SM

FITTING, Grease for Wear Plate
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

45

Simplicity 1960035SM

WASHER, 5/8

$4.49

$

In Stock, only 2 left!

0

46

Simplicity 2860645SM

CAPSCREW, Hex Head, 5/8-11 x 3-1/2

$8.99

$

In Stock, only 3 left!

0

47

Simplicity 2860646SM

NUT, Hex Flange Two-Way Lock, 5/8-11

$10.99

$

In Stock, Qty 6

0

48

Simplicity 1722212ASM

PLATE, Axle

$33.99

$

Usually ships in 2-12 days
