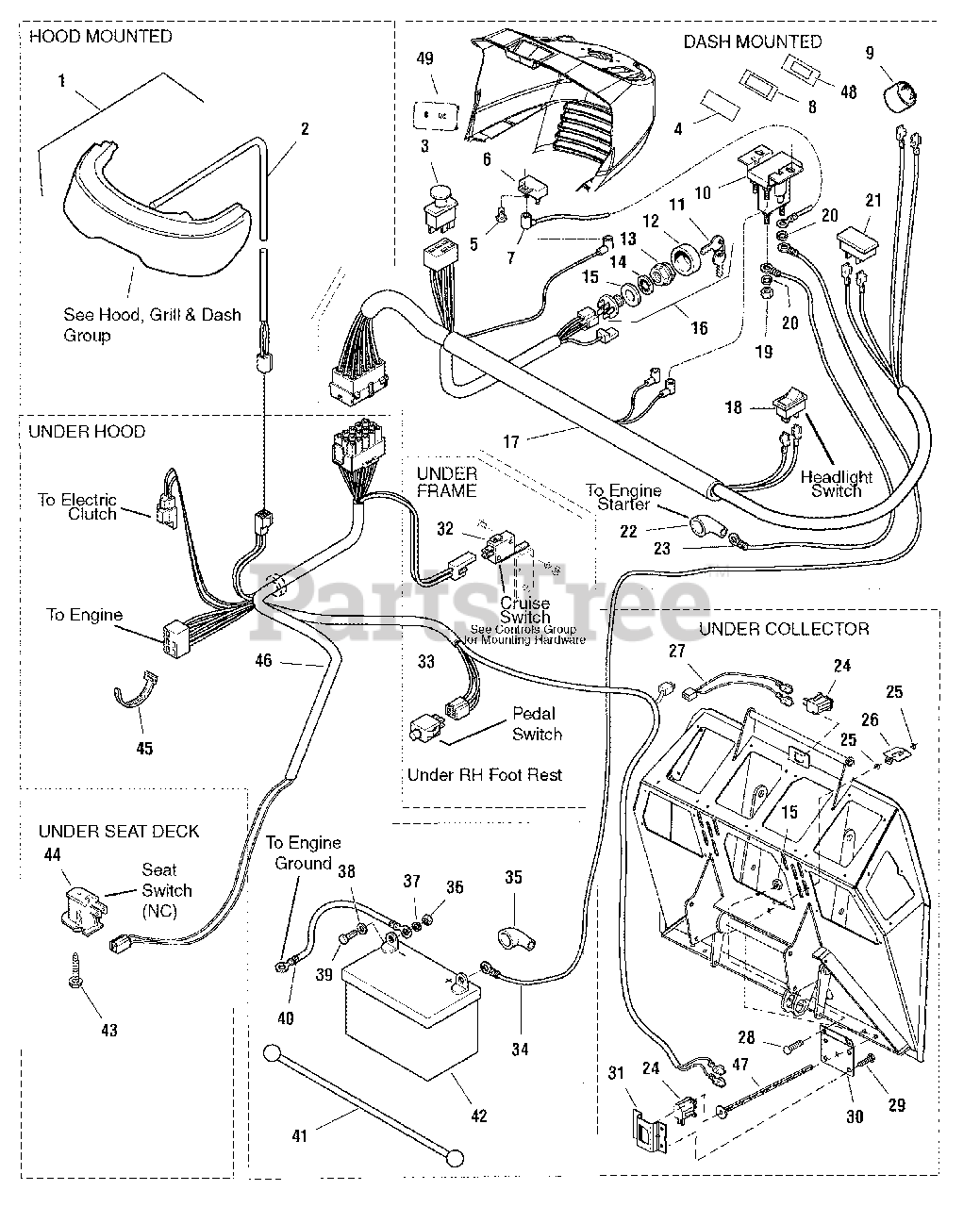

1694012 - Simplicity Baron Lawn Tractor, 18hp Electrical Group Parts Diagram

Baron Lawn Tractor, 18hp

Electrical Group Parts Diagram

  • Title

1

Simplicity 1721810SM

HEADLIGHT ASSEMBLY

$164.99

$

Usually ships in 2-12 days

0

2

Simplicity 1722669SM

HARNESS, Headlight Assembly

$40.99

$

In Stock, only 1 left!

0

3

Simplicity 1722887SM

SWITCH, PTO, Push/Pull

$33.99

$

In Stock, Qty 20+

0

4

Simplicity 1722611SM

PLUG, Hole

$6.99

$

In Stock, only 1 left!

0

5

Simplicity 1921959SM

CAPSCREW, Hex Head, 1/4 x 5/8
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 18

0

6

Simplicity 1665238SM

BREAKER, Circuit 12Volt, 20Amps

$14.99

$

In Stock, Qty 20+

0

7

Simplicity 1665237SM

WIRE, 12GA, 5.9" Long, Red

$11.99

$

In Stock, Qty 7

0

8

Simplicity 1722418SM

PLUG, Hole, 18HP Only

$2.99

$

Usually ships in 2-12 days

0

9

Simplicity 1720117SM

BUZZER, Pulse, Bag Full

$38.99

$

Usually ships in 2-12 days

0

10

Simplicity 1728963SM

SOLENOID
(Superseded to 1755381YP)

$24.99

$

In Stock, Qty 20+

0

11

Simplicity 1717163SM

KEY, Ignition

$8.99

$

In Stock, Qty 20+

0

12

Simplicity 1717550SM

COVER
(Superseded to 847150)

$8.49

$

In Stock, Qty 16

0

13

Simplicity 1717549SM

NUT, Hex Flange, 5/8-32
(Superseded to 847144)

$10.99

$

Usually ships in 2-12 days

0

14

Simplicity 1960547SM

LOCKWASHER, Internal Tooth, 5/8

$4.49

$

In Stock, only 3 left!

0

15

Simplicity 2101025SM

WASHER

$4.49

$

Usually ships in 2-12 days

0

16

Simplicity 1686734SM

SWITCH ASMY, Ignition, 6 Pin, (Includes Ref. Nos. 11, 12, 13, 14, & 15)

$32.99

$

In Stock, Qty 20+

0

17

Simplicity 1722715SM

HARNESS, Wiring Upper

$

$

Not available

18

Simplicity 1716951SM

SWITCH, Headlights , 2 Terminal

$21.99

$

In Stock, Qty 6

0

19

Simplicity 2860750SM

NUT, Hex, 5/16-24 KEPS, Yellow

$2.99

$

Usually ships in 2-12 days

0

20

Simplicity 2820426SM

LOCKWASHER, External Tooth, 5/16

$4.49

$

In Stock, only 1 left!

0

21

Simplicity 1722227SM

METER, Hour, 18HP

$53.99

$

Usually ships in 2-12 days

0

22

Simplicity 1713535SM

BOOT, Insulator

$5.99

$

In Stock, only 1 left!

0

23

Simplicity 1721830SM

CABLE, # 6, 25" Long, Red

$19.99

$

Usually ships in 2-12 days

0

24

Simplicity 1732004SM

SWITCH, Push, Black

$8.99

$

In Stock, Qty 20+

0

25

Simplicity 1723613SM

O-RING

$2.99

$

Usually ships in 2-12 days

0

26

Simplicity 1723612SM

PAD

$10.99

$

Usually ships in 2-12 days

0

27

Simplicity 1723954SM

HARNESS, Rear

$11.99

$

Usually ships in 2-12 days

0

28

Simplicity 1960252SM

CARRIAGE BOLT1/4-20 x 5/8

$3.99

$

In Stock, only 1 left!

0

29

Simplicity 1925003SM

CAPSCREW, Hex Head Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 7

0

30

Simplicity 1723459SM

BRACKET, Switch

$9.99

$

Usually ships in 2-12 days

0

31

Simplicity 1720118SM

BRACKET, Hopper Switch

$7.99

$

Usually ships in 2-12 days

0

32

Simplicity 1717050SM

SWITCH, Cruise, Grey

$17.99

$

In Stock, Qty 20+

0

33

Simplicity 1732006SM

SWITCH, Push Button Foot, Domestic Only, Black
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0

33

Simplicity 1723507SM

SWITCH, Push Button Foot, Export Only, Black
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0

34

Simplicity 1603618SM

CABLE, # 6, 9" Long

$11.99

$

In Stock, only 3 left!

0

35

Simplicity 1677296SM

BOOT, Insulator Battery Terminal

$6.49

$

In Stock, Qty 11

0

36

Simplicity 2816622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

37

Simplicity 2816964SM

LOCKWASHER
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

38

Simplicity 2821319SM

WASHER
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

39

Simplicity 2823341SM

CAPSCREW, Hex Head, 1/4-20 x 3/4
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

40

Simplicity 1713163SM

CABLE, # 6, 26" Long

$24.99

$

In Stock, only 2 left!

0

41

Simplicity 1722009SM

STRAP, Battery

$10.99

$

In Stock, only 1 left!

0

42

Simplicity 1685215SM

BATTERY, 12 Volt

$

$

Not available

43

Simplicity 1960536SM

SCREW, Hex Washer Head Plastite, 1/4-20

$4.99

$

Usually ships in 2-12 days

0

44

Simplicity 1716368SM

SWITCH, Operator Present, NC, Grey

$20.99

$

In Stock, only 1 left!

0

45

Simplicity 1701011SM

TIE

$5.49

$

In Stock, only 2 left!

0

46

Simplicity 1724904SM

HARNESS, Wiring Lower

$84.99

$

Usually ships in 2-12 days

0

47

Simplicity 1725981SM

ROD & WASHER ASSEMBLY, Hopper

$54.99

$

Usually ships in 2-12 days

0

48

Simplicity 1725698SM

PLUG, Hole, 16hp Only

$3.49

$

Usually ships in 2-12 days

0

49

Simplicity 1725835SM

CLIP, Hour Meter

$

$

Not available
