1694012 - Simplicity Baron Lawn Tractor, 18hp Control Group - Cruise Control Parts Diagram

Baron Lawn Tractor, 18hp

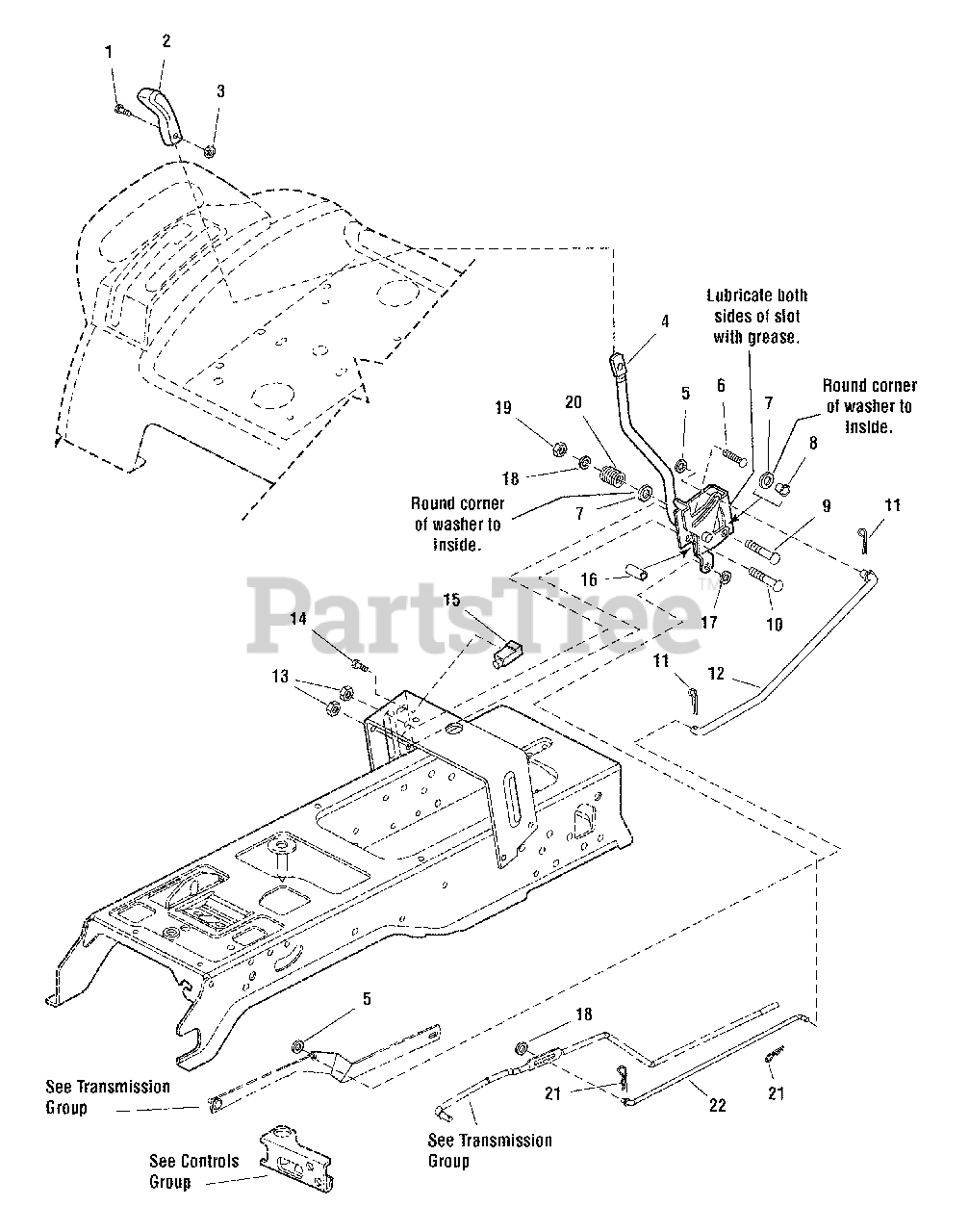

Control Group - Cruise Control Parts Diagram

  • Title
1

Simplicity 1960666SM

CAPSCREW, Torx Socket Head, 1/4-20 x 7/8

$4.49

$

In Stock, only 1 left!

0

2

Simplicity 1722303SM

KNOB, Cruise

$13.99

$

Usually ships in 2-12 days

0

3

Simplicity 1920397SM

NUT, Hex ESNA Lock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

4

Simplicity 1723258SM

LEVER & BRACKET ASSEMBLY, Cruise

$49.99

$

Usually ships in 2-12 days

0

5

Simplicity 1924940SM

WASHER
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

6

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

7

Simplicity 1926192SM

WASHER, 9/16 x 1-1/4 x 1/8

$19.99

$

Usually ships in 2-12 days

0

$8.49

$

Usually ships in 2-12 days

0

9

Simplicity 1931342SM

CARRIAGE BOLT, 5/16-18 x 2-3/4
(Superseded to 703857)

$6.49

$

Usually ships in 2-12 days

0

10

Simplicity 1960273SM

CARRIAGE BOLT, 5/16-18 x 2-1/4
(Superseded to 704421)

$5.49

$

In Stock, only 1 left!

0

11

Simplicity 1918447SM

PIN, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

12

Simplicity 1723098SM

ROD, Cruise

$19.99

$

Usually ships in 2-12 days

0

13

Simplicity 1960636SM

NUT, Hex KEPS, 5/16-18

$4.99

$

In Stock, only 1 left!

0

14

Simplicity 1960001SM

CAPSCREW, Hex Head Plastite, 10-14 x 5/8
(Superseded to 703062)

$4.49

$

In Stock, Qty 12

0

15

Simplicity 1717050SM

SWITCH, Push, Neutral Start, Gray

$17.99

$

In Stock, Qty 20+

0

$15.99

$

Usually ships in 2-12 days

0

$4.49

$

In Stock, Qty 8

0

18

Simplicity 1919381SM

WASHER
(Superseded to 703298)

$4.49

$

In Stock, only 2 left!

0

19

Simplicity 1919438SM

NUT, Hex ESNA Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

20

Simplicity 1677746SM

SPRING, Compression

$7.99

$

Usually ships in 2-12 days

0

21

Simplicity 1722460SM

PIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, only 2 left!

0

22

Simplicity 1723099SM

ROD, Cruise Return

$17.99

$

Usually ships in 2-12 days

0
