16940 - Toro Walk-Behind Mower (SN: 000000001 - 000999999) (1980) HANDLE ASSEMBLY (MODEL NO. 16930) Parts Diagram

Walk-Behind Mower

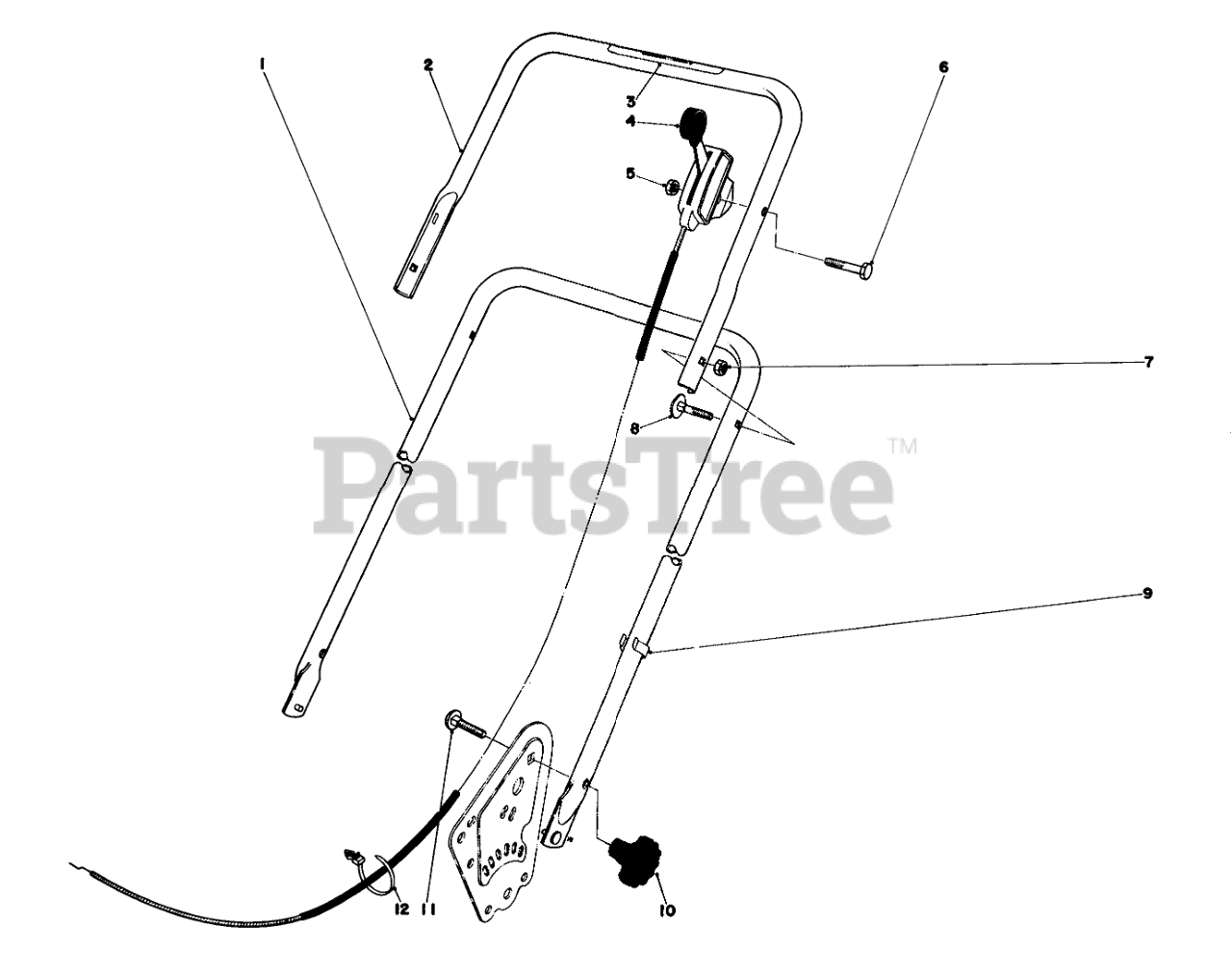

HANDLE ASSEMBLY (MODEL NO. 16930) Parts Diagram

  • Title
1

Toro 38-0811

Lower Handle
(Superseded to 38-0810)

$

$

Not available

2

Toro 38-0621

Upper Handle

$

$

Not available

3

Toro 40-2940

Danger-Decal

$

$

Not available

4

Toro 40-5523

Throttle Control

$

$

Not available

5

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

6

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

8

Toro 6-6330

HANDLE SCREW

$

$

Not available

9

$

$

Not available

10

$17.99

$

In Stock, only 2 left!

0

11

Toro 32304

Bolt-Carriage

$

$

Currently unavailable

12

Toro 3290-410

TIE-MOUNT, PUSH

$

$

Not available
