1694-0 - Generac 1,900 PSI Pressure Washer Main Unit Parts Diagram

1,900 PSI Pressure Washer

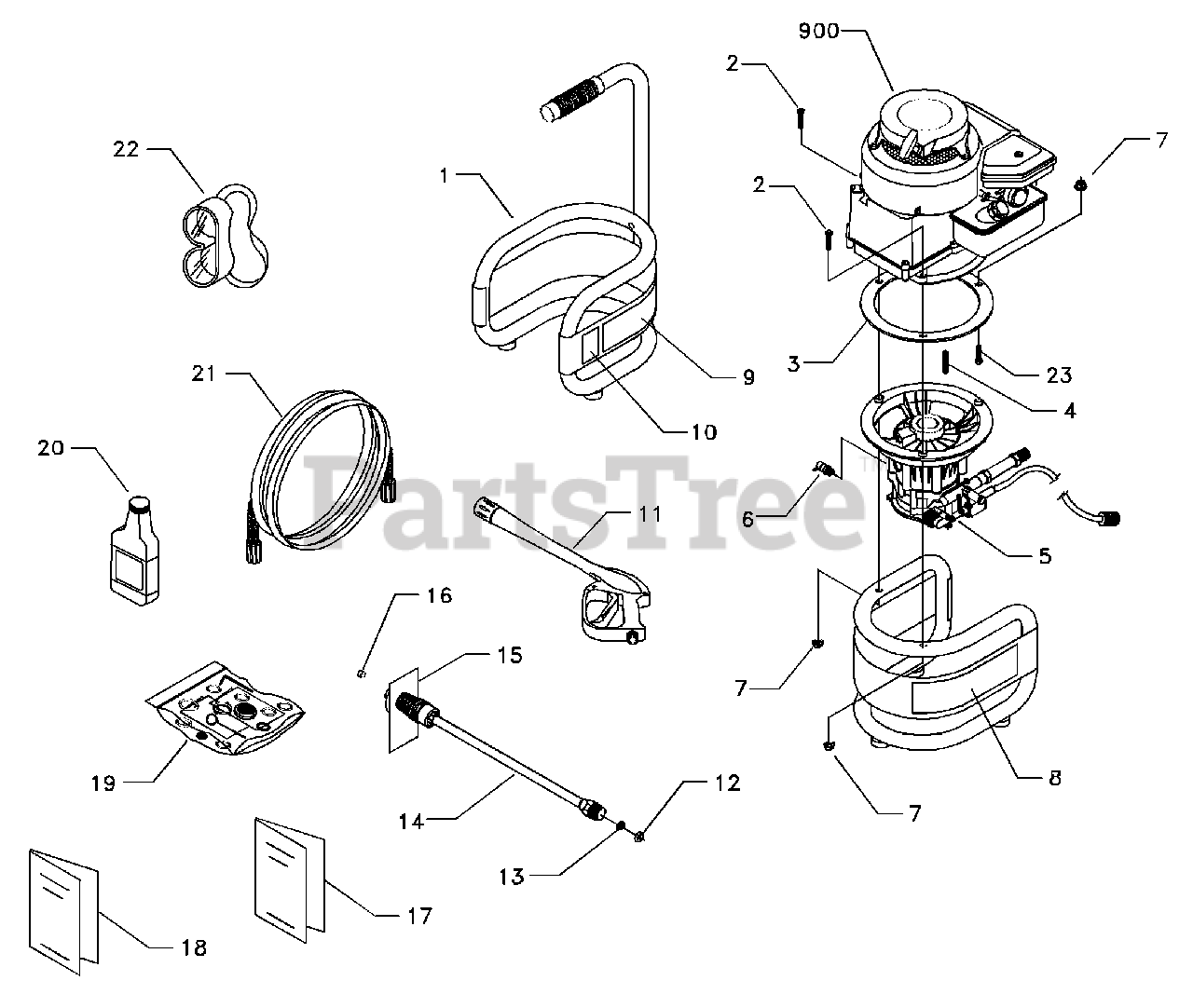

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton A190259GS

ASSEMBLY, Base
(Superseded to M190259GS)

$100.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton A2013GS

CAPSCREW, Socket Head

$5.99

$

In Stock, Qty 5

0

3

Briggs & Stratton 190012GS

PLATE, Spacer

$

$

Currently unavailable

4

Briggs & Stratton 23139GS

KEY

$4.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 189940GS

ASSEMBLY, Pump
(Superseded to 206383GS)

Note: (See "Pump" illustration and parts list)

$

$

Not available

6

Briggs & Stratton 21783GS

VALVE,Thermal Relief
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 20+

0

7

Briggs & Stratton 52858GS

NUT, Lock

$3.99

$

In Stock, only 2 left!

0

8

Briggs & Stratton 191133GS

DECAL, Unit

$

$

Currently unavailable

9

Briggs & Stratton 187915GS

DECAL,Warning/Danger

$14.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 191134GS

DECAL, See Manual

$

$

Currently unavailable

11

Briggs & Stratton B3263GS

GUN, High Pressure

$93.99

$

In Stock, Qty 7

0

12

Briggs & Stratton 97837GS

O-RING

$

$

Not available

13

Briggs & Stratton B4224GS

SCREEN, Gun Inlet

$

$

Not available

14

Briggs & Stratton B3335AGS

WAND,Adjustable Nozzle
(Superseded to 188792AGS)

$67.99

$

In Stock, only 1 left!

0

15

Briggs & Stratton 97566GS

TAG, Nozzle Instructions

$1.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 94804GS

NOZZLE, Replacement

$9.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 190504GS

MANUAL, Owners

$14.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton B3386GS

MANUAL, Engine

$11.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 190862GS

KIT, Maintenance
(Superseded to 191922GS)

$18.99

$

In Stock, Qty 20+

0

20

Briggs & Stratton BB3061BGS

OIL BOTTLE
(Superseded to 100005)

$8.99

$

In Stock, Qty 20+

0

21

Briggs & Stratton 190972GS

HOSE
(Superseded to 708962)

$

$

Not available

22

Briggs & Stratton 87815GS

GOGGLES, Safety

$12.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton B4951GS

CAPSCREW, Socket Head

$

$

Currently unavailable

900

Briggs & Stratton ~NSP

ENGINE

$

$

Currently unavailable
