1693979 - Simplicity 38" Turbo Mounting Kit for Regent & ZT Series Turbo Mounting Group Parts Diagram

38" Turbo Mounting Kit for Regent & ZT Series

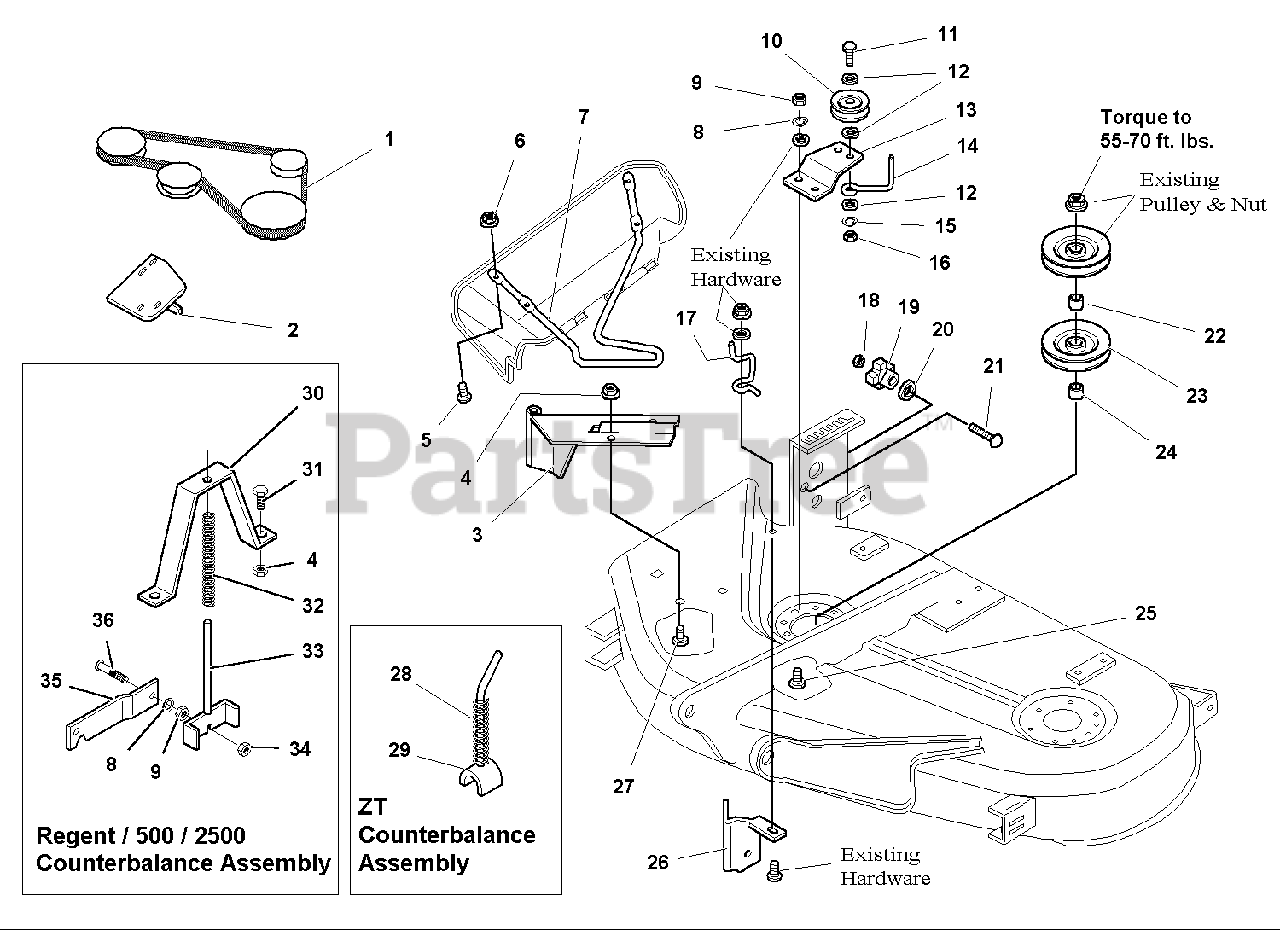

Turbo Mounting Group Parts Diagram

  • Title

1

Simplicity 1705141SM

V-BELT

$27.99

$

In Stock, only 2 left!

0

2

Simplicity 1714911SM

MOUNTING BRACKET

$9.99

$

Usually ships in 2-12 days

0

3

Simplicity 1722546ASM

PIVOT BRACKET

$216.99

$

Usually ships in 2-12 days

0

4

Simplicity 1931277SM

LOCKNUT, Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

5

Simplicity 1960404SM

SCREW, Truss Hd., 10-24 x 3/4

$3.99

$

In Stock, only 4 left!

0

6

Simplicity 1933896SM

NUT, Nylock, 20-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

7

Simplicity 1718295ASM

ROD, Deflector

$112.99

$

Usually ships in 2-12 days

0

8

Simplicity 1917356SM

LOCKWASHER
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

9

Simplicity 1917372SM

NUT, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 1714817SM

PULLEY, Idler, 2-3/4" OD
(Superseded to 703056)

$42.99

$

In Stock, Qty 6

0

11

Simplicity 1921971SM

CAPSCREW, 3/6-16 x 1-3/4
(Superseded to 704289)

$4.99

$

In Stock, Qty 12

0

12

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

13

Simplicity 1704768ASM

Z-BRACKET

$13.99

$

Usually ships in 2-12 days

0

14

Simplicity 2172845SM

BELT STOP

$11.99

$

Usually ships in 2-12 days

0

15

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

16

Simplicity 1916950SM

NUT, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

17

Simplicity 1715018SM

SPRING LATCH

$11.99

$

Usually ships in 2-12 days

0

18

Simplicity 1923362SM

LOCKNUT, Centerlock, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 18

0

19

Simplicity 1670578SM

KNOB

$13.99

$

Usually ships in 2-12 days

0

20

Simplicity 1933468SM

WASHER, 5/16

$4.49

$

Usually ships in 2-12 days

0

21

Simplicity 1931337SM

CARRIAGE BOLT, 5/16-18 x 1-1/2
(Superseded to 703296)

$4.49

$

In Stock, only 4 left!

0

22

Simplicity 1713624SM

SPACER, Short, Splined

$15.99

$

Usually ships in 2-12 days

0

23

Simplicity 1713091SM

PULLEY, 5" OD

$23.99

$

In Stock, only 1 left!

0

24

Simplicity 1713621SM

SPACER, Long

$19.99

$

Usually ships in 2-12 days

0

25

Simplicity 1930600SM

SCREW, Taptite, 5/16-18 x 1-1/2

$4.99

$

In Stock, Qty 19

0

26

Simplicity 1704881ASM

BAFFLE

$62.99

$

Usually ships in 2-12 days

0

27

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

28

Simplicity 1718214SM

SPRING, Compression (Short)

$11.99

$

Usually ships in 2-12 days

0

29

Simplicity 1718215SM

LEVER ASSEMBLY, ZT

$34.99

$

Usually ships in 2-12 days

0

30

Simplicity 1717143ASM

BRACKET, Counterbalance

$16.99

$

Usually ships in 2-12 days

0

31

Simplicity 1930591SM

SCREW, Whiz-Lock, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 10

0

32

Simplicity 1716875SM

SPRING, Compression (Long)

$12.99

$

Usually ships in 2-12 days

0

33

Simplicity 1717289SM

ROD ASSEMBLY, Counterbalance

$

$

Not available

34

Simplicity 1935048SM

NUT, Flange, 2-Way Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

35

Simplicity 1717297A

ARM, Rear

$

$

Not available

36

Simplicity 1960233SM

CARRIAGE BOLT, 5/16-18 x 1-1/4

$13.99

$

Usually ships in 2-12 days

0
