1693977 - Simplicity 44" Turbo Mounting Kit Turbo Mounting Group Parts Diagram

44" Turbo Mounting Kit

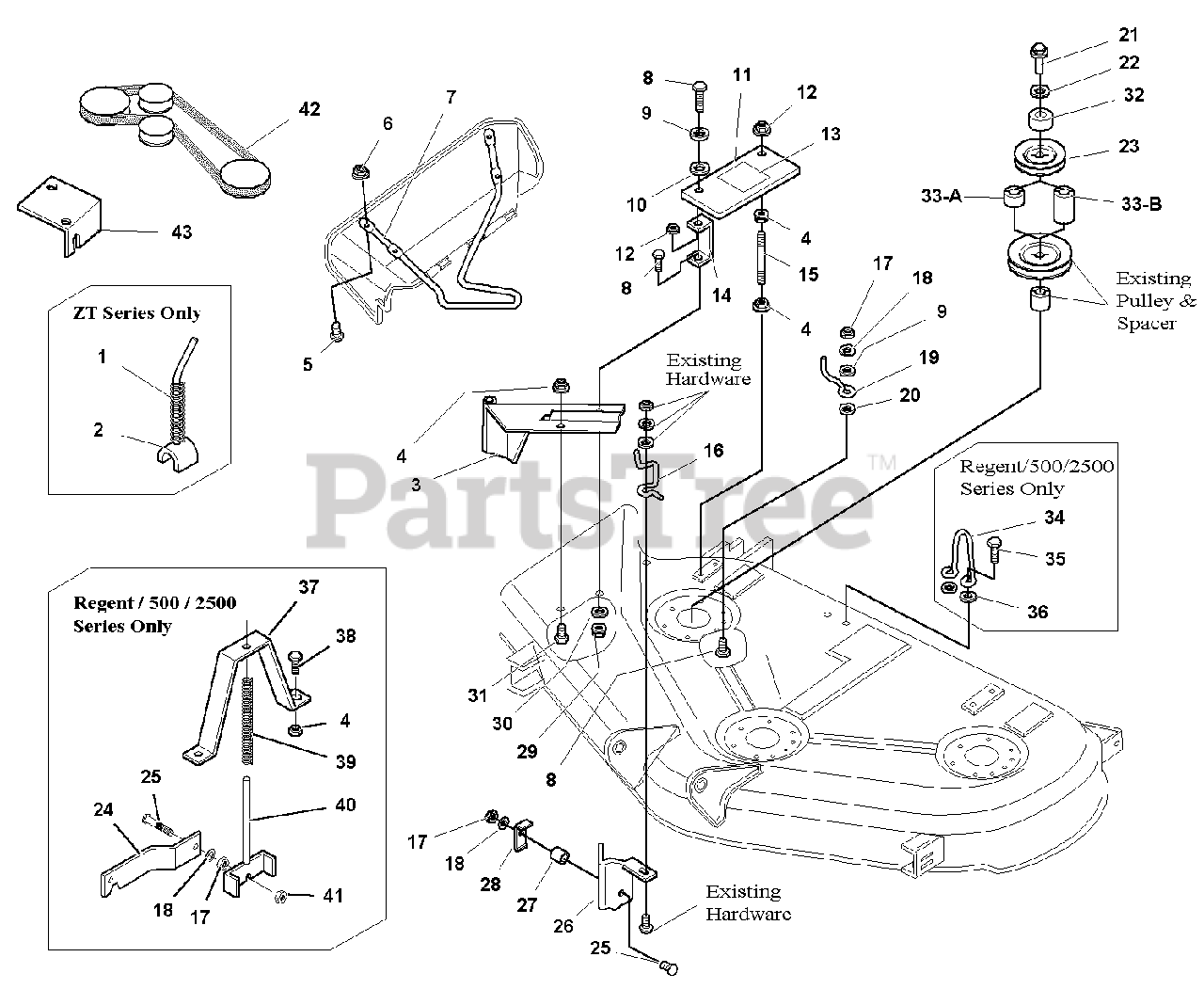

Turbo Mounting Group Parts Diagram

  • Title

1

Simplicity 1718214SM

SPRING, Compression

$11.99

$

Usually ships in 2-12 days

0

2

Simplicity 1718215SM

LEVER ASSY, ZT Counterbalance

$34.99

$

Usually ships in 2-12 days

0

3

Simplicity 1722546ASM

PIVOT BRACKET ASSEMBLY

$216.99

$

Usually ships in 2-12 days

0

4

Simplicity 1931277SM

NUT, Hex Flange, Whizlock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

5

Simplicity 1960404SM

CAPSCREW, Truss Head, #10-24 x 3/4 Lg.

$3.99

$

In Stock, only 4 left!

0

6

Simplicity 1933896SM

NUT, Nylock, #10-24
(Superseded to 703412)

$4.49

$

In Stock, only 4 left!

0

7

Simplicity 1718295ASM

ROD, 3/8 Dia.

$112.99

$

Usually ships in 2-12 days

0

8

Simplicity 1921333SM

CAPSCREW, Hex Hd., 5/16-18 x 1 Lg.
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

9

Simplicity 1919326SM

WASHER, Flat, 11/32

$4.49

$

In Stock, Qty 9

0

10

Simplicity 2860210SM

WASHER, Nylon, 0.388 Dia.

$4.49

$

In Stock, only 3 left!

0

11

Simplicity 1717105ASM

COVER, Turbo Belt

$9.49

$

Usually ships in 2-12 days

0

12

Simplicity 1919438SM

NUT, Hex, Nylock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

13

Simplicity 1717291SM

DECAL, Warning

$13.99

$

Usually ships in 2-12 days

0

14

Simplicity 1717104ASM

SUPPORT, Belt Cover

$6.99

$

Usually ships in 2-12 days

0

15

Simplicity 1717106SM

STUD, 5/16-18 x 5-3/4 Lg.

$13.99

$

Usually ships in 2-12 days

0

16

Simplicity 1715018SM

LATCH, Spring Wire

$11.99

$

Usually ships in 2-12 days

0

17

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

18

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

19

Simplicity 1674315SM

STOP, Belt

$4.99

$

Usually ships in 2-12 days

0

20

Simplicity 1924940SM

WASHER, Flat, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

21

Simplicity 1713523SM

NUT, Sleeve

$41.99

$

In Stock, only 1 left!

0

22

Simplicity 1603592SM

WASHER, Belleville

$11.99

$

Usually ships in 2-12 days

0

23

Simplicity 1717123SM

PULLEY, 3-3/4" OD

$33.99

$

Usually ships in 2-12 days

0

24

Simplicity 1717145ASM

ARM, Rear

$19.99

$

Usually ships in 2-12 days

0

25

Simplicity 1960223SM

CARRIAGE BOLT, 5/16-18 x 1-1/4 Lg.
(Superseded to 703446)

$4.49

$

In Stock, Qty 5

0

26

Simplicity 1704880ASM

BRACKET ASSEMBLY

$112.99

$

Usually ships in 2-12 days

0

27

Simplicity 1666294SM

SPACER

$4.99

$

In Stock, Qty 20+

0

28

Simplicity 1705308ASM

BRACKET

$33.99

$

Usually ships in 2-12 days

0

29

Simplicity 1927557SM

NUT, Whiz-Lock, 5/16-18

$4.99

$

Usually ships in 2-12 days

0

30

Simplicity 1922755SM

WASHER, Flat, 13/32
(Superseded to 704128)

$4.99

$

In Stock, Qty 11

0

31

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4 Lg.
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

32

Simplicity 1715785SM

SPACER, Cylinder, 3/4 Tall

$18.99

$

Usually ships in 2-12 days

0

33-A

Simplicity 1713623SM

HUB, Double, 3/4 Tall, Regent Series

$9.99

$

Usually ships in 2-12 days

0

33-B

Simplicity 1713634SM

HUB, Double, 1-9/32 Tall, ZT Series

$16.99

$

Usually ships in 2-12 days

0

34

Simplicity 1704098SM

UPSTOP, Wireform

$11.99

$

Usually ships in 2-12 days

0

35

Simplicity 1960373SM

CAPSCREW, Taptite, 5/16 x 1
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

36

Simplicity 1933263SM

WASHER, 5/16 x 1/4 Thick
(Superseded to 703990)

$6.99

$

In Stock, Qty 20+

0

37

Simplicity 1717143ASM

BRACKET, Counterbalance

$16.99

$

Usually ships in 2-12 days

0

38

Simplicity 1930591SM

SCREW, Hex Whiz-Lock, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

39

Simplicity 1716875SM

SPRING, Compression

$12.99

$

Usually ships in 2-12 days

0

40

Simplicity 1717289SM

ROD ASSEMBLY, Counterbalance

$

$

Not available

41

Simplicity 1935048SM

NUT, Flange, 2-Way Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

42

Simplicity 1717146SM

V-BELT

$24.99

$

Usually ships in 2-12 days

0

43

Simplicity 1714911SM

BRACKET, Mounting

$9.99

$

Usually ships in 2-12 days

0
