1693970 - Simplicity Baron 40" Lawn Tractor, 18hp 40" Mower Deck - Height Adjustment & Roller Bar Parts Diagram

Baron 40" Lawn Tractor, 18hp

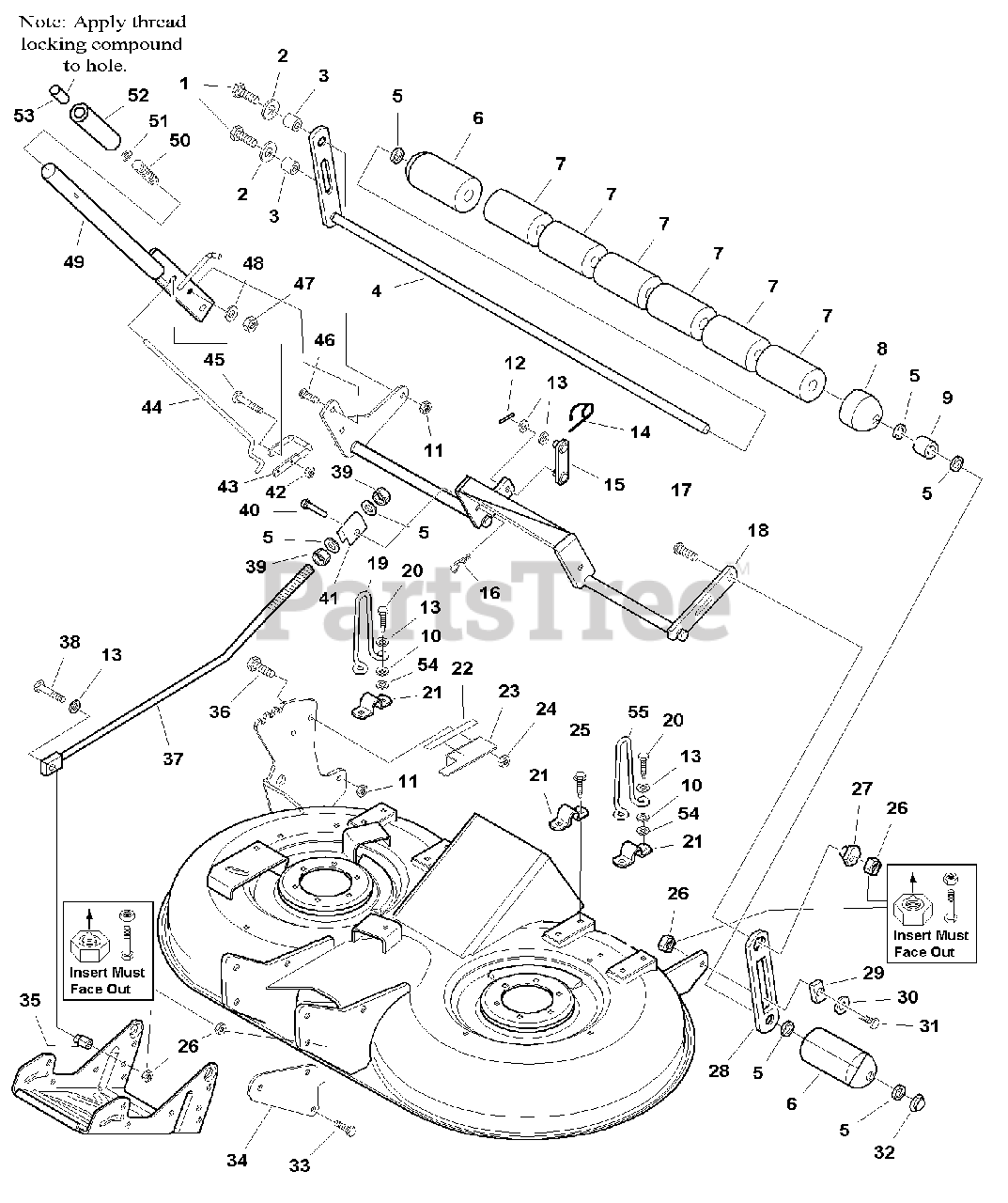

40" Mower Deck - Height Adjustment & Roller Bar Parts Diagram

  • Title

1

Simplicity 1921977SM

CAPSCREW, Hex Head, 5/16-18 x 1-1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 7

0

2

Simplicity 1960044SM

WASHER

$4.49

$

In Stock, only 3 left!

0

3

Simplicity 1960236SM

SPACER

$6.49

$

In Stock, only 2 left!

0

4

Simplicity 1723305ASM

SHAFT & BAR ASSEMBLY

$131.99

$

Usually ships in 2-12 days

0

5

Simplicity 1924366SM

WASHER, 5/8
(Superseded to 703580)

$4.49

$

In Stock, Qty 20+

0

6

Simplicity 1722036SM

ROLLER

$7.99

$

In Stock, Qty 20+

0

7

Simplicity 1668513SM

ROLLER

$10.99

$

In Stock, Qty 20+

0

8

Simplicity 1717675SM

ROLLER

$6.99

$

In Stock, Qty 20+

0

9

Simplicity 1602946SM

SPACER, .66 ID

$13.99

$

In Stock, Qty 20+

0

10

Simplicity 1919381SM

WASHER
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

11

Simplicity 2860643SM

NUT, Hex Flange Lock, 5/16-18

$3.49

$

In Stock, only 4 left!

0

12

Simplicity 1918448SM

PIN, Cotter

$4.49

$

Usually ships in 2-12 days

0

13

Simplicity 1924940SM

WASHER
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

14

Simplicity 2176012SM

RETAINER, Pin
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

15

Simplicity 1723858SM

LINK & PIN ASSEMBLY

$45.99

$

Usually ships in 2-12 days

0

16

Simplicity 1723858SM

PIN, Retaining

$45.99

$

Usually ships in 2-12 days

0

17

Simplicity 1931352SM

CARRIAGE BOLT, 3/8-16 x 1-1/2

$4.49

$

In Stock, Qty 5

0

18

Simplicity 1722663SM

SHAFT & ARM ASSEMBLY

$

$

Not available

19

Simplicity 1720659SM

STOP, Up

$12.99

$

Usually ships in 2-12 days

0

20

Simplicity 1931202SM

CAPSCREW, Hex Head Taptite, 5/16-18 x 1-1/4
(Superseded to 703167)

$3.99

$

In Stock, only 3 left!

0

21

Simplicity 1665374SM

STRAP
(Superseded to 1761690HYP)

$7.99

$

Usually ships in 2-12 days

0

22

Simplicity 1723847

DECAL, Height of cut

$

$

Not available

23

Simplicity 1720931ASM

BRACKET, Height of Cut

$10.99

$

Usually ships in 2-12 days

0

24

Simplicity 1919438SM

NUT, Hex ESNA, 3/8-16
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

25

Simplicity 1664847SM

CAPSCREW, Hex Head Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

26

Simplicity 2860681SM

NUT, Hex Lock Aluminum Insert, 3/8-16

$4.49

$

In Stock, Qty 7

0

27

Simplicity 1704082SM

NUT, Hex Adjusting, .99 DIA .687

$5.49

$

In Stock, Qty 16

0

28

Simplicity 1704073ASM

BAR

$34.99

$

In Stock, only 1 left!

0

29

Simplicity 1677507SM

SLIDE

$6.99

$

In Stock, only 3 left!

0

30

Simplicity 1924361SM

WASHER
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

31

Simplicity 2172622SM

BOLT, Shoulder, 3/8-16 X 1.34

$6.99

$

In Stock, Qty 20+

0

32

Simplicity 1960520SM

NUT, Push
(Superseded to 771009)

$3.99

$

In Stock, Qty 20+

0

33

Simplicity 1934654SM

CAPSCREW, Hex Head Whiz Lock, 3/8-16 x 1
(Superseded to 704038)

$5.99

$

In Stock, only 2 left!

0

34

Simplicity 1723525SM

SUPPORT, Hitch
(Superseded to 1723525ASM)

$6.99

$

Usually ships in 2-12 days

0

35

Simplicity 1706644SM

SPACER

$8.49

$

In Stock, only 1 left!

0

36

Simplicity 1921332SM

CAPSCREW, Hex Head, 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

37

Simplicity 1722661SM

ROD

$24.99

$

Usually ships in 2-12 days

0

38

Simplicity 1922606SM

CAPSCREW, Hex Head, 3/8-16 x 1-3/4

$4.99

$

In Stock, Qty 12

0

39

Simplicity 1915726SM

NUT, Hex, 5/8-11
(Superseded to 703912)

$3.49

$

In Stock, Qty 5

0

40

Simplicity 2118053SM

PIN, Round Head Drilled, 3/8 x 2
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

41

Simplicity 1706645ASM

TRUNNION
(Superseded to 84003858)

$8.49

$

Usually ships in 2-12 days

0

42

Simplicity 1920397SM

NUT, Hex Lock ESNA, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

43

Simplicity 1720599SM

LATCH, "U"

$22.99

$

Usually ships in 2-12 days

0

44

Simplicity 1721257SM

ROD

$10.99

$

Usually ships in 2-12 days

0

45

Simplicity 1921159SM

CAPSCREW, Hex Head 1/4-20 x 2-1/4
(Superseded to 704291)

$5.49

$

Usually ships in 2-12 days

0

46

Simplicity 1931335SM

CARRIAGE BOLT, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

47

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

48

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

49

Simplicity 1720695ASM

HANDLE ASSEMBLY, Lift

$133.99

$

Usually ships in 2-12 days

0

50

Simplicity 1723321SM

SPRING, Compression

$6.99

$

In Stock, only 4 left!

0

51

Simplicity 1960674SM

NUT, Push
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

52

Simplicity 1713995SM

GRIP, Black

$12.99

$

In Stock, only 1 left!

0

53

Simplicity 1723124SM

BUTTON, Red

$5.99

$

In Stock, Qty 20+

0

54

Simplicity 1933988SM

NUT, Push
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

55

Simplicity 1719929SM

UPSTOP

$16.99

$

Usually ships in 2-12 days

0
