1693920 - Simplicity 38" Mower Deck 38" Mower Deck - Height Adjustment & Roller Bar Group Parts Diagram

38" Mower Deck

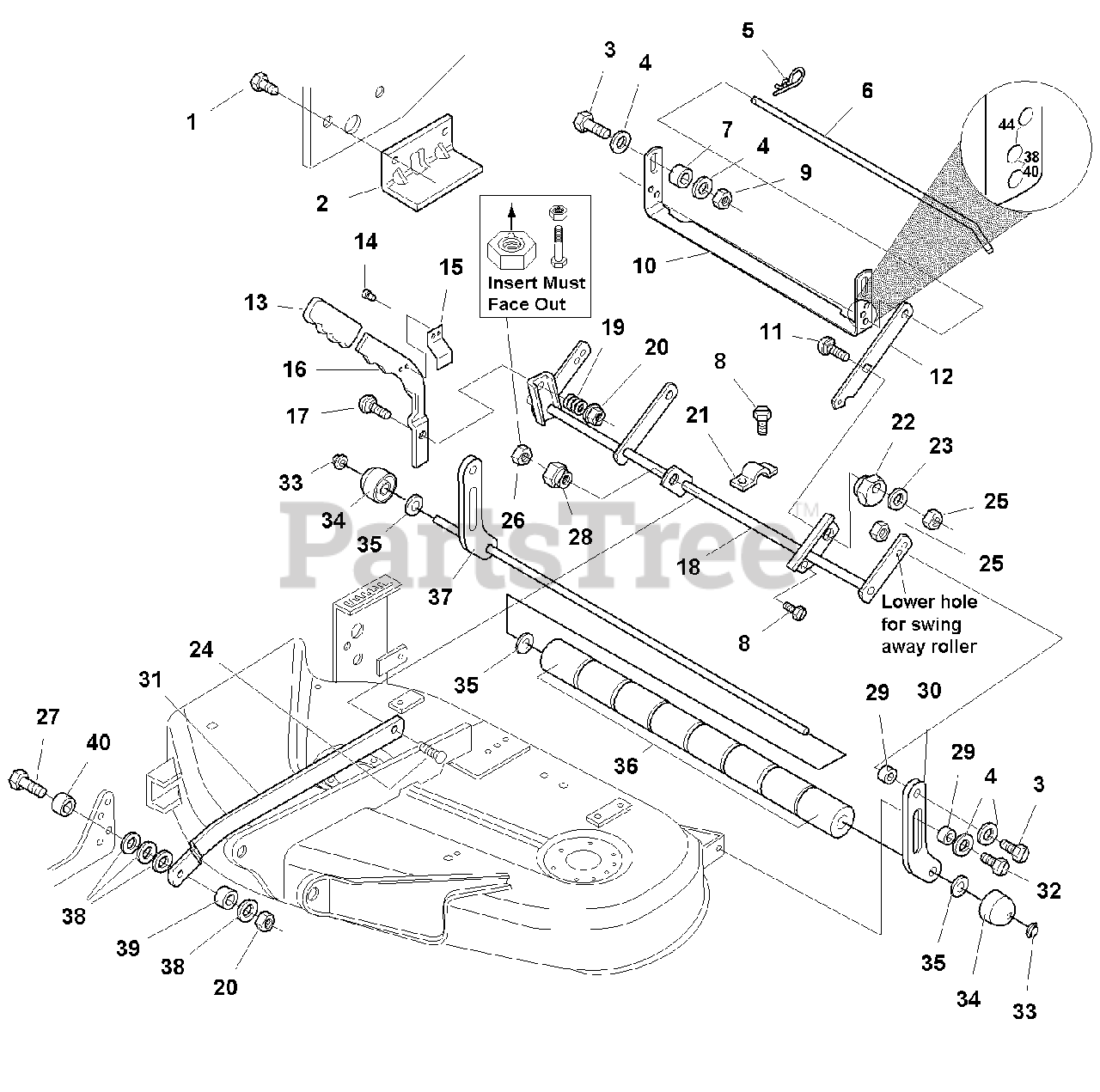

38" Mower Deck - Height Adjustment & Roller Bar Group Parts Diagram

  • Title

1

Simplicity 1960541SM

CAPSCREW, Taptite Hex Washer Head, 5/16-18 x 3/4

$3.49

$

Usually ships in 2-12 days

0

2

Simplicity 1714910ASM

BRACKET, Upstop

$5.99

$

Usually ships in 2-12 days

0

3

Simplicity 1921977SM

CAPSCREW, Hex Head, 5/16-18 x 1-1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 7

0

4

Simplicity 1960044SM

WASHER, 5/16

$4.49

$

In Stock, only 3 left!

0

5

Simplicity 1960074SM

CLIP, Spring
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

6

Simplicity 1714529SM

ROD, Transport

$80.99

$

In Stock, only 1 left!

0

7

Simplicity 1710703SM

SPACER

$6.49

$

In Stock, Qty 20+

0

8

Simplicity 1664847SM

CAPSCREW, Hex Head Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

9

Simplicity 1923362SM

NUT, Hex Lock, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0

10

Simplicity 1720372A

U-BRACKET
(Superseded to 1720372ASM)

$

$

Not available

11

Simplicity 1960655SM

CARRIAGE BOLT, 5/16-18 x 1-1/4
(Superseded to 703446)

$4.49

$

In Stock, Qty 5

0

12

Simplicity 1717297A

ARM, Rear

$

$

Not available

13

Snapper 1714876SM

GRIP

$6.49

$

Usually ships in 2-12 days

0

14

Simplicity 2810542SM

RIVET

$3.99

$

Usually ships in 2-12 days

0

15

Snapper 1723504SM

SPRING, Handle

$3.99

$

Usually ships in 2-12 days

0

16

Simplicity 1717658ASM

ADJUSTMENT ARM

$113.99

$

Usually ships in 2-12 days

0

17

Simplicity 1931353SM

CARRIAGE BOLT, 3/8-16 x 1-3/4
(Superseded to 703858)

$4.99

$

In Stock, Qty 6

0

18

Simplicity 1724493ASM

ROCKER ARM ASSEMBLY, (Use lower hole with swing away rollers.)

$408.99

$

Usually ships in 2-12 days

0

19

Simplicity 1714263SM

SPRING

$4.99

$

In Stock, only 1 left!

0

20

Simplicity 1930645SM

NUT, Hex Flange Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

21

Simplicity 1665374SM

STRAP
(Superseded to 1761690HYP)

$7.99

$

Usually ships in 2-12 days

0

22

Simplicity 1714879SM

ECCENTRIC

$7.99

$

Usually ships in 2-12 days

0

23

Simplicity 1924874SM

WASHER, Flat, 5/16
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

24

Simplicity 1931352SM

CARRIAGE BOLT, 3/8-16 x 1-1/2

$4.49

$

In Stock, only 4 left!

0

25

Simplicity 2860643SM

NUT, Hex, Flangelock, 5/16-18

$3.49

$

In Stock, only 4 left!

0

26

Simplicity 2860681SM

NUT, Hex Lock Aluminum Insert, 3/8-16

$4.49

$

In Stock, Qty 7

0

27

Simplicity 1923701SM

CAPSCREW, Hex Head, 3/8-16 x 2
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

28

Simplicity 1704082SM

NUT, Hex Adjusting, .99 DIA .687

$5.49

$

In Stock, Qty 15

0

29

Simplicity 1960236SM

SPACER

$6.49

$

In Stock, only 2 left!

0

30

Simplicity 1719846ASM

BAR, Roller, Support

$20.99

$

Usually ships in 2-12 days

0

31

Simplicity 1721081ASM

ARM, Pitch

$96.99

$

Usually ships in 2-12 days

0

32

Simplicity 1960373SM

CAPSCREW, Taptite Hex Washer Head, 5/16-18 x 1
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

33

Simplicity 1960520SM

PUSHNUT, 5/8
(Superseded to 771009)

$3.99

$

In Stock, Qty 20+

0

34

Simplicity 1717675SM

ROLLER, End

$6.99

$

In Stock, Qty 20+

0

35

Simplicity 1924366SM

WASHER, 5/8
(Superseded to 703580)

$4.49

$

In Stock, Qty 20+

0

36

Simplicity 1668513SM

ROLLER

$10.99

$

In Stock, Qty 20+

0

37

Simplicity 1719905ASM

SHAFT ASSEMBLY

$

$

Not available

38

Simplicity 1924940SM

WASHER, Flat, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

39

Simplicity 1611705SM

SPACER

$4.49

$

In Stock, Qty 20+

0

40

Simplicity 1715024SM

SPACER

$8.49

$

In Stock, only 1 left!

0
