1693914 - Simplicity Regent 38" Lawn Tractor, 15hp Electrical Group Parts Diagram

Regent 38" Lawn Tractor, 15hp

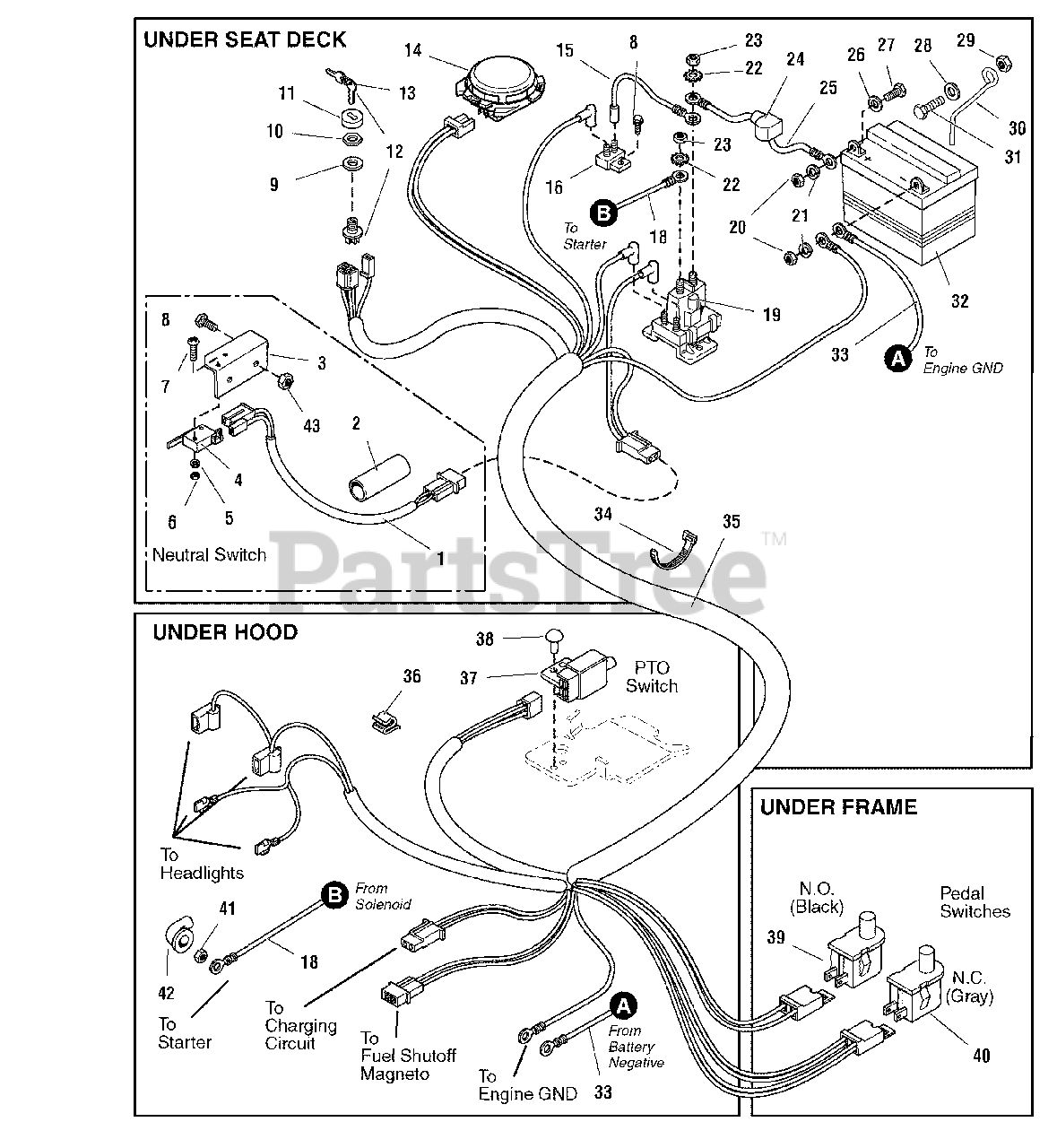

Electrical Group Parts Diagram

  • Title

1

Simplicity 1719837SM

WIRE ASSEMBLY

$11.99

$

Usually ships in 2-12 days

0

2

Simplicity 1661345

TUBE, Shrink

$

$

Not available

3

Simplicity 1723709SM

PLATE, Neutral Switch

$11.99

$

Usually ships in 2-12 days

0

4

Simplicity 1676123SM

SWITCH, Neutral Safety

$23.99

$

In Stock, only 1 left!

0

5

Simplicity 1930947SM

LOCKWASHER, Spring, 1/8

$3.49

$

In Stock, only 1 left!

0

6

Simplicity 2860659SM

NUT, Hex Machine, #4-40

$2.99

$

In Stock, only 2 left!

0

7

Simplicity 2860658SM

CAPSCREW, Round Head, Phillips, #4 - 40 x 3/4

$3.49

$

In Stock, only 2 left!

0

8

Simplicity 1930594SM

CAPSCREW, Hex Whizlock, 1/4-20 x 3/4
(Superseded to 1935450SM)

$4.49

$

Usually ships in 2-12 days

0

9

Simplicity 2101025SM

WASHER, 5/8

$4.49

$

Usually ships in 2-12 days

0

10

Simplicity 1717549SM

NUT, Hex, Flange, 5/8-32
(Superseded to 847144)

$10.99

$

Usually ships in 2-12 days

0

11

Simplicity 1717550SM

COVER, Ignition
(Superseded to 847150)

$8.49

$

In Stock, Qty 16

0

12

Simplicity 1686734SM

SWITCH, Ignition, 6-Pole (Includes Ref. 21, 23, 24, 25 & 26)

$32.99

$

In Stock, Qty 20+

0

13

Simplicity 1717163SM

IGNITION KEY (Set of 2)

$8.99

$

In Stock, Qty 20+

0

14

Simplicity 1718981SM

SWITCH, Seat

$21.99

$

In Stock, only 1 left!

0

15

Simplicity 1665237SM

WIRE ASSEMBLY

$11.99

$

In Stock, Qty 7

0

16

Simplicity 1665238SM

CIRCUIT BREAKER

$14.99

$

In Stock, Qty 20+

0

18

Simplicity 1703484SM

CABLE, # 6 x 42-1/2 long (Solenoid to Starter)

$

$

Not available

19

Simplicity 1686981SM

SOLENOID
(Superseded to 1686981YP)

$28.99

$

In Stock, Qty 20+

0

20

Simplicity 2816622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

21

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

22

Simplicity 2820426SM

LOCKWASHER, External Tooth, 5/16

$4.49

$

In Stock, only 1 left!

0

23

Simplicity 2820263SM

NUT, Hex, 5/16-24 NF
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

24

Simplicity 1677296SM

BOOT, Insulator

$6.49

$

In Stock, Qty 11

0

25

Simplicity 1716549SM

CABLE, # 6 x 10 Long, with 2 Ring Terminals
(Superseded to 1752685YP)

$11.99

$

In Stock, only 2 left!

0

26

Simplicity 2821319SM

WASHER, Plain, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

27

Simplicity 2823341SM

CAPSCREW, Hex Head, 1/4-20 x 3/4
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

28

Simplicity 1919326SM

WASHER, Plain, 5/16

$4.49

$

In Stock, Qty 9

0

29

Simplicity 1919438SM

NUT, Hex Nylon Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

30

Simplicity 1723048SM

ROD, Battery Hold Down

$3.99

$

Usually ships in 2-12 days

0

31

Simplicity 1921332SM

CAPSCREW, Hex Head, 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

32

Simplicity 1685215SM

BATTERY

$

$

Not available

33

Simplicity 1723109SM

CABLE, # 6 x 52-1/2 long (Battery to Ground)

$16.99

$

Usually ships in 2-12 days

0

34

Simplicity 1701011SM

TIE-SELF LOCKING

$5.49

$

In Stock, only 2 left!

0

35

Simplicity 1720510SM

HARNESS, Wiring

$

$

Not available

36

Simplicity 2834683SM

CLIP, Wire
(Superseded to 2172434SM)

$4.99

$

Usually ships in 2-12 days

0

37

Simplicity 1717050SM

SWITCH, Neutral Start

$17.99

$

In Stock, Qty 20+

0

38

Simplicity 1722035SM

POP-RIVET

$3.99

$

Usually ships in 2-12 days

0

39

Simplicity 1720411SM

SWITCH, Pedal, N.O., Black

$14.99

$

In Stock, only 2 left!

0

40

Simplicity 1720401SM

SWITCH, Pedal, N.C., Gray

$14.99

$

In Stock, only 1 left!

0

41

Simplicity 1960294SM

NUT, Hex Flange, Whiz Lock, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, Qty 10

0

42

Simplicity 2122023SM

COVER, Terminal

$5.99

$

In Stock, Qty 12

0

43

Simplicity 1930641SM

NUT, Hex Flange, 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0
