1693911 - Simplicity Regent Lawn Tractor, 15hp Transmission Group - Gear Parts Diagram

Regent Lawn Tractor, 15hp

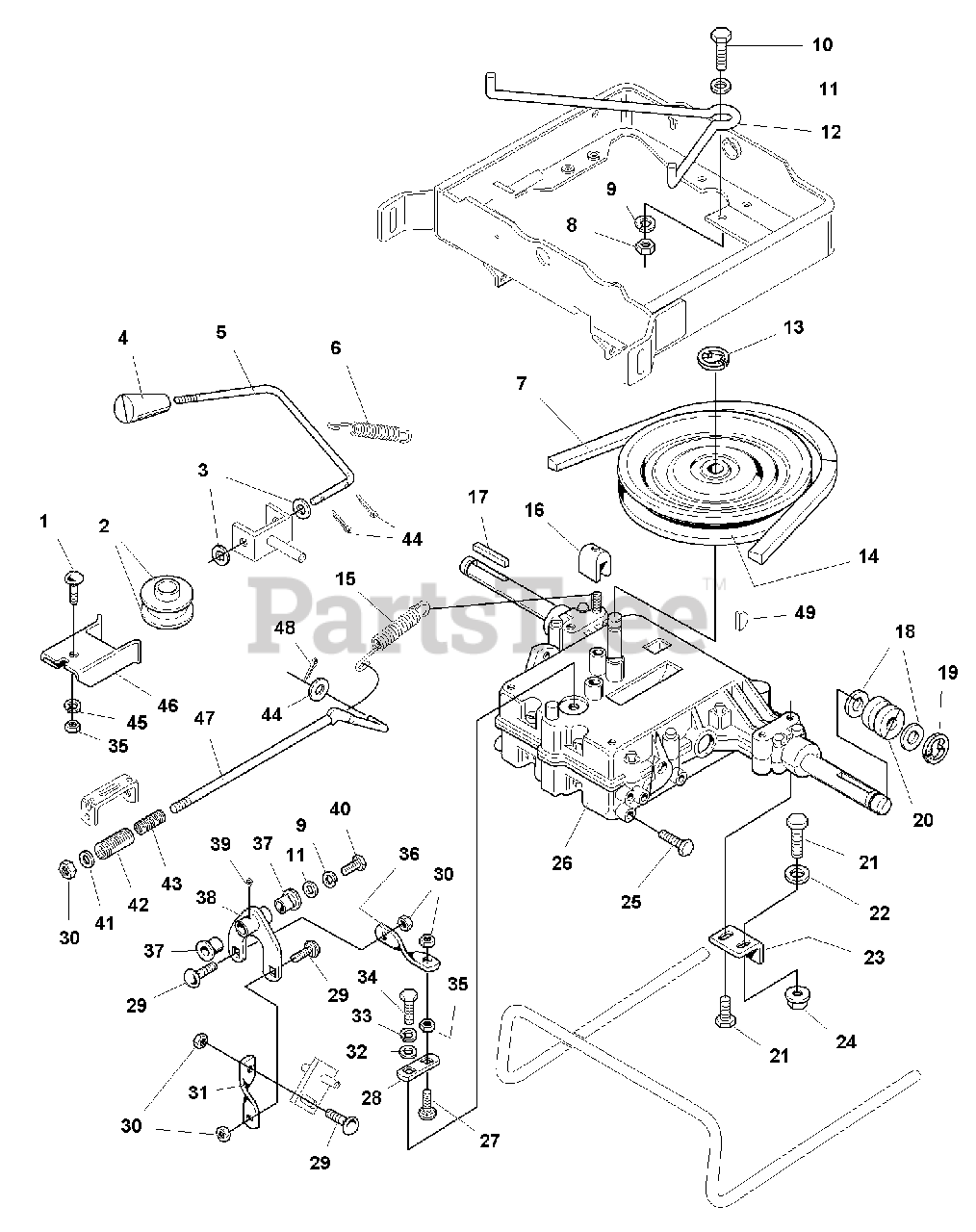

Transmission Group - Gear Parts Diagram

  • Title

1

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

2

Simplicity 1714536SM

PULLEY

$8.49

$

Usually ships in 2-12 days

0

3

Simplicity 1924359SM

WASHER

$2.49

$

Usually ships in 2-12 days

0

4

Simplicity 1713843SM

KNOB

$12.99

$

Usually ships in 2-12 days

0

5

Simplicity 1714756SM

ROD

$19.99

$

Usually ships in 2-12 days

0

6

Simplicity 2156302SM

SPRING, Extension

$6.49

$

In Stock, Qty 20+

0

7

Simplicity 1664789SM

V-BELT

$47.99

$

Usually ships in 2-12 days

0

8

Simplicity 1916950SM

NUT, Hex 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

9

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

10

Simplicity 1920415SM

CAPSCREW, Hex Head, 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

11

Simplicity 1924940SM

WASHER
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

12

Simplicity 1719595SM

GUIDE, Belt

$8.49

$

Usually ships in 2-12 days

0

13

Simplicity 2827103SM

RING, Shaft

$4.49

$

Usually ships in 2-12 days

0

14

Simplicity 1714764SM

PULLEY & HUB ASSEMBLY

$

$

Not available

15

Simplicity 1678341SM

SPRING, Extension

$

$

Not available

16

Simplicity 1960638SM

NUT, Speed

$2.99

$

Usually ships in 2-12 days

0

17

Simplicity 1717749SM

KEY
(Superseded to 021553MA)

$4.99

$

In Stock, only 2 left!

0

18

Simplicity 2860202SM

WASHER

$4.49

$

In Stock, Qty 20+

0

19

Simplicity 2827794SM

RING, Shaft

$3.49

$

In Stock, Qty 16

0

20

Simplicity 1715043SM

SPACER

$3.99

$

Usually ships in 2-12 days

0

21

Simplicity 2860551SM

SCREW, Hex Washer Head Taptite, 5/16-18 x 2-1/2

$4.99

$

Usually ships in 2-12 days

0

22

Simplicity 1919381SM

WASHER
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

23

Simplicity 1716103SM

ANCHOR, Torsion Bar

$21.99

$

Usually ships in 2-12 days

0

24

Simplicity 1927557SM

NUT, Hex Head Whiz Lock, 5/16-18

$4.99

$

Usually ships in 2-12 days

0

25

Simplicity 1930601SM

SCREW, Hex Washer Head Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

26

Simplicity 1722544SM

TRANSMISSION ASSEMBLY

$769.99

$

Usually ships in 2-12 days

0

27

Simplicity 1960555SM

CARRIAGE BOLT, 5/16-18 x 1-1/2

$3.49

$

Usually ships in 2-12 days

0

28

Simplicity 1714556SM

LEVER, Shift

$8.99

$

Usually ships in 2-12 days

0

29

Simplicity 1960223SM

CARRIAGE BOLT, 5/16-18 x 1-1/4
(Superseded to 703446)

$4.49

$

In Stock, Qty 5

0

30

Simplicity 1919438SM

NUT, Hex Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

31

Simplicity 1715029SM

LINK, Shift Upper

$15.99

$

Usually ships in 2-12 days

0

32

Simplicity 1921319SM

WASHER
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

33

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

34

Simplicity 1922234SM

CAPSCREW, Hex Head, 1/4-28 x 5/8

$2.49

$

Usually ships in 2-12 days

0

35

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

36

Simplicity 1715028SM

LINK, Shift, Lower

$15.99

$

Usually ships in 2-12 days

0

37

Simplicity 1663114SM

BUSHINGS

$4.49

$

In Stock, only 3 left!

0

38

Simplicity 1660735

BELLCRANK ASSEMBLY w/Bushings (Incl. Ref ??)

$

$

Not available

39

Simplicity 2821133SM

FITTING, Grease
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

40

Simplicity 1921965SM

CAPSCREW, Hex Head, 3/8-16 x 3/4
(Superseded to 703237)

$4.99

$

Usually ships in 2-12 days

0

41

Simplicity 1919326SM

WASHER

$4.49

$

In Stock, Qty 6

0

42

Simplicity 1719824SM

SPRING-Compression

$6.49

$

Usually ships in 2-12 days

0

43

Simplicity 1719825SM

SPRING-Compression

$17.99

$

Usually ships in 2-12 days

0

44

Simplicity 1918448SM

PIN, Cotter

$4.49

$

Usually ships in 2-12 days

0

45

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

46

Simplicity 1720293A

GUARD, Belt
(Superseded to 1720293ASM)

$5.99

$

Usually ships in 2-12 days

0

47

Simplicity 1714767SM

ROD

$11.99

$

Usually ships in 2-12 days

0

48

Simplicity 1918447SM

PIN, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

49

Simplicity 2805123SM

KEY, Woodruff #9
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 17

0
