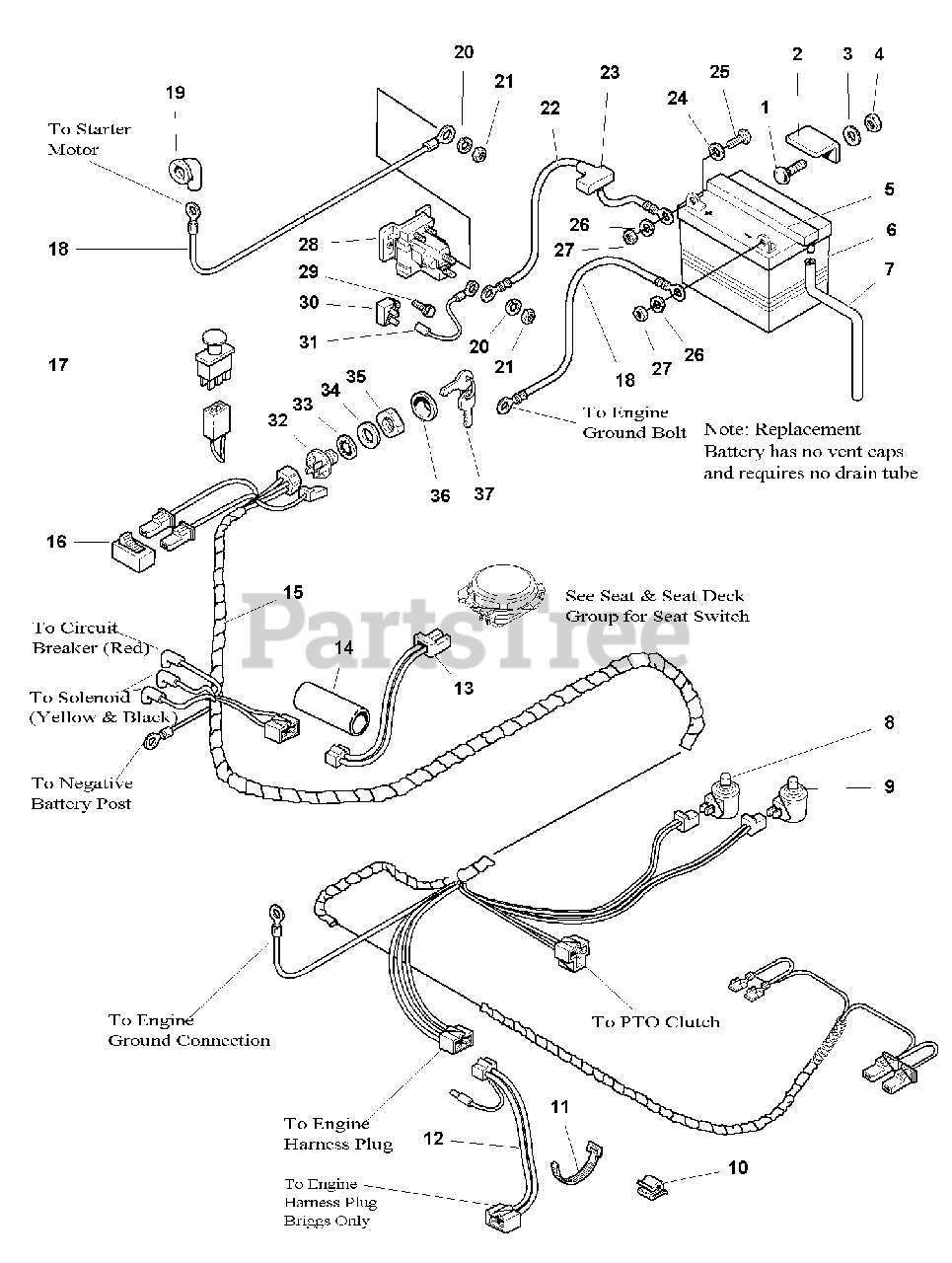

1693893 - Simplicity Regent Lawn Tractor, 17hp Electrical Group Parts Diagram

Regent Lawn Tractor, 17hp

Electrical Group Parts Diagram

  • Title

1

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

2

Simplicity 1721658SM

CLAMP, Battery

$3.49

$

Usually ships in 2-12 days

0

3

Simplicity 1919326SM

WASHER, Plain, 5/16

$4.49

$

In Stock, Qty 9

0

4

Simplicity 1919438SM

NUT, Hex Nylon Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

5

Simplicity 1704581

CAP, Vent, Battery

$

$

Not available

6

Simplicity 1685215SM

BATTERY

$

$

Not available

7

Simplicity 1704583SM

HOSE, Drain

$2.99

$

Usually ships in 2-12 days

0

8

Simplicity 1732004SM

SWITCH, Pedal, N.O., Black

$8.99

$

In Stock, Qty 20+

0

9

Simplicity 1732005SM

SWITCH, Pedal, N.C., Gray
(Superseded to 7023354YP)

$12.99

$

In Stock, Qty 20+

0

10

Simplicity 2834683SM

CLIP, Wire
(Superseded to 2172434SM)

$4.99

$

Usually ships in 2-12 days

0

11

Simplicity 2832747SM

TIE

$3.99

$

Usually ships in 2-12 days

0

12

Simplicity 1720204SM

WIRE ASSEMBLY, Harness To Engine (17 HP Briggs & Stration Only)

$11.99

$

Usually ships in 2-12 days

0

13

Simplicity 1715010SM

WIRE ASSEMBLY, Seat Switch

$8.49

$

Usually ships in 2-12 days

0

14

Simplicity 1715014SM

TUBE, Shrink

$4.99

$

Usually ships in 2-12 days

0

15

Simplicity 1724875SM

WIRING HARNESS, Main

$102.99

$

Usually ships in 2-12 days

0

16

Simplicity 1703799SM

SWITCH, Headlights

$31.99

$

In Stock, only 1 left!

0

17

Simplicity 1716332SM

SWITCH, PTO
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

18

Simplicity 1703484SM

CABLE, (Solenoid to Starter & Battery to Ground)

$

$

Not available

19

Simplicity 1677296SM

BOOT, Insulator

$6.49

$

In Stock, Qty 11

0

20

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

21

Simplicity 2820263SM

NUT, Hex, 5/16-24 NF
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

22

Simplicity 1603618SM

CABLE, Battery, Positive

$11.99

$

In Stock, only 3 left!

0

23

Simplicity 2122023SM

COVER, Terminal

$5.99

$

In Stock, Qty 12

0

24

Simplicity 1921319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

25

Simplicity 2823341SM

CAPSCREW, Hex Head, 1/4-20 x 3/4
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

26

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

27

Simplicity 2816622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

28

Simplicity 1686981SM

SOLENOID
(Superseded to 1686981YP)

$28.99

$

In Stock, Qty 20+

0

29

Simplicity 1927429SM

CAPSCREW, Taptite Hex Washer Head, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 9

0

30

Simplicity 1665238SM

CIRCUIT BREAKER

$14.99

$

In Stock, Qty 20+

0

31

Simplicity 1665237SM

WIRE ASSEMBLY

$11.99

$

In Stock, Qty 7

0

32

Simplicity 1686734SM

SWITCH, Ignition, Replacement Kit (Includes Ref. Nos. 33, 34, 35, 36 & 37)

$32.99

$

In Stock, Qty 20+

0

33

Simplicity 1960547SM

WASHER, Lock, Internal Tooth, 5/8

$4.49

$

In Stock, only 4 left!

0

34

Simplicity 2101025SM

WASHER, 5/8

$4.49

$

Usually ships in 2-12 days

0

35

Simplicity 1717549SM

NUT, Hex, Flange, 5/8-32
(Superseded to 847144)

$10.99

$

Usually ships in 2-12 days

0

36

Simplicity 1717550SM

COVER, Ignition
(Superseded to 847150)

$8.49

$

In Stock, Qty 16

0

37

Simplicity 1717163SM

KEY, Ignition

$8.99

$

In Stock, Qty 20+

0
