1693892 - Simplicity 40" Snow Thrower Attachment Spout & Handcrank Group Parts Diagram

40" Snow Thrower Attachment

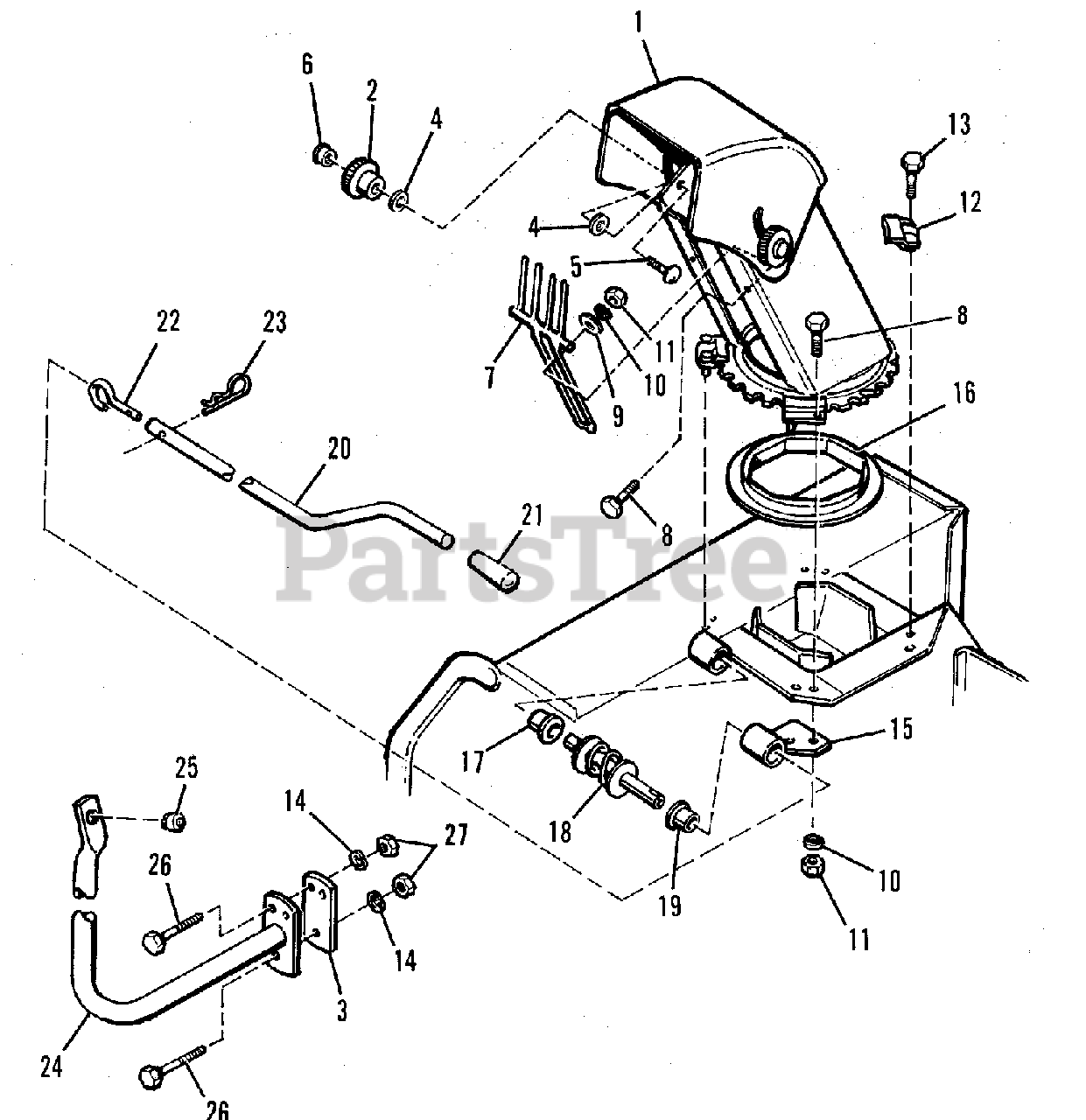

Spout & Handcrank Group Parts Diagram

  • Title

1

Simplicity 1713715SM

CHUTE & DEFLECTOR ASSEMBLY

$

$

Not available

2

Simplicity 1677181SM

KNOB

$19.99

$

Usually ships in 2-12 days

0

3

Simplicity 1713735SM

PLATE, Retaining

$38.99

$

Usually ships in 2-12 days

0

4

Simplicity 2860175SM

WASHER, Nylon, 13/32 x 1 x 1/16

$3.49

$

Usually ships in 2-12 days

0

5

Simplicity 1931337SM

CARRIAGE BOLT, 5/16-18 x 1-1/2
(Superseded to 703296)

$4.49

$

In Stock, only 3 left!

0

6

Simplicity 1919438SM

LOCKNUT, Hex, Esna, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

7

Simplicity 1713716SM

HAND GUARD

$20.99

$

Usually ships in 2-12 days

0

8

Simplicity 1923341SM

CAPSCREW, Hex Head, 1/4-20 x 3/4

$4.49

$

In Stock, Qty 8

0

9

Simplicity 1919326SM

WASHER, Plain, 5/16

$4.49

$

In Stock, Qty 8

0

10

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

11

Simplicity 1916622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

12

Simplicity 1701071SM

PLATE, Retaining

$7.99

$

Usually ships in 2-12 days

0

13

Simplicity 1921958SM

CAPSCREW, Hex Head, 1/4-20 x 1/2

$3.99

$

Usually ships in 2-12 days

0

14

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

15

Simplicity 1701076SM

SUPPORT, Worm

$42.99

$

Usually ships in 2-12 days

0

16

Simplicity 1713719SM

RING, Nylon

$24.99

$

Usually ships in 2-12 days

0

17

Simplicity 1701073SM

BUSHING, Plastic, 1-5/16

$

$

Not available

18

Simplicity 1713721SM

WORM, Rotation, Clockwise

$63.99

$

Usually ships in 2-12 days

0

19

Simplicity 1701075SM

BUSHING, Plastic, 1-11/16

$

$

Not available

20

Simplicity 1713723SM

HANDLE

$136.99

$

Usually ships in 2-12 days

0

21

Simplicity 1710434SM

GRIP, Handle

$

$

Not available

22

Simplicity 1713724SM

HOOK, Handle

$22.99

$

Usually ships in 2-12 days

0

23

Simplicity 1918196SM

CLIP, Hairpin
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

24

Simplicity 1713725SM

BRACKET, Support, Handle

$83.99

$

Usually ships in 2-12 days

0

25

Simplicity 1708233SM

GROMMET, Plastic

$7.49

$

Usually ships in 2-12 days

0

26

Simplicity 1920415SM

CAPSCREW, Hex Head, 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

27

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0
