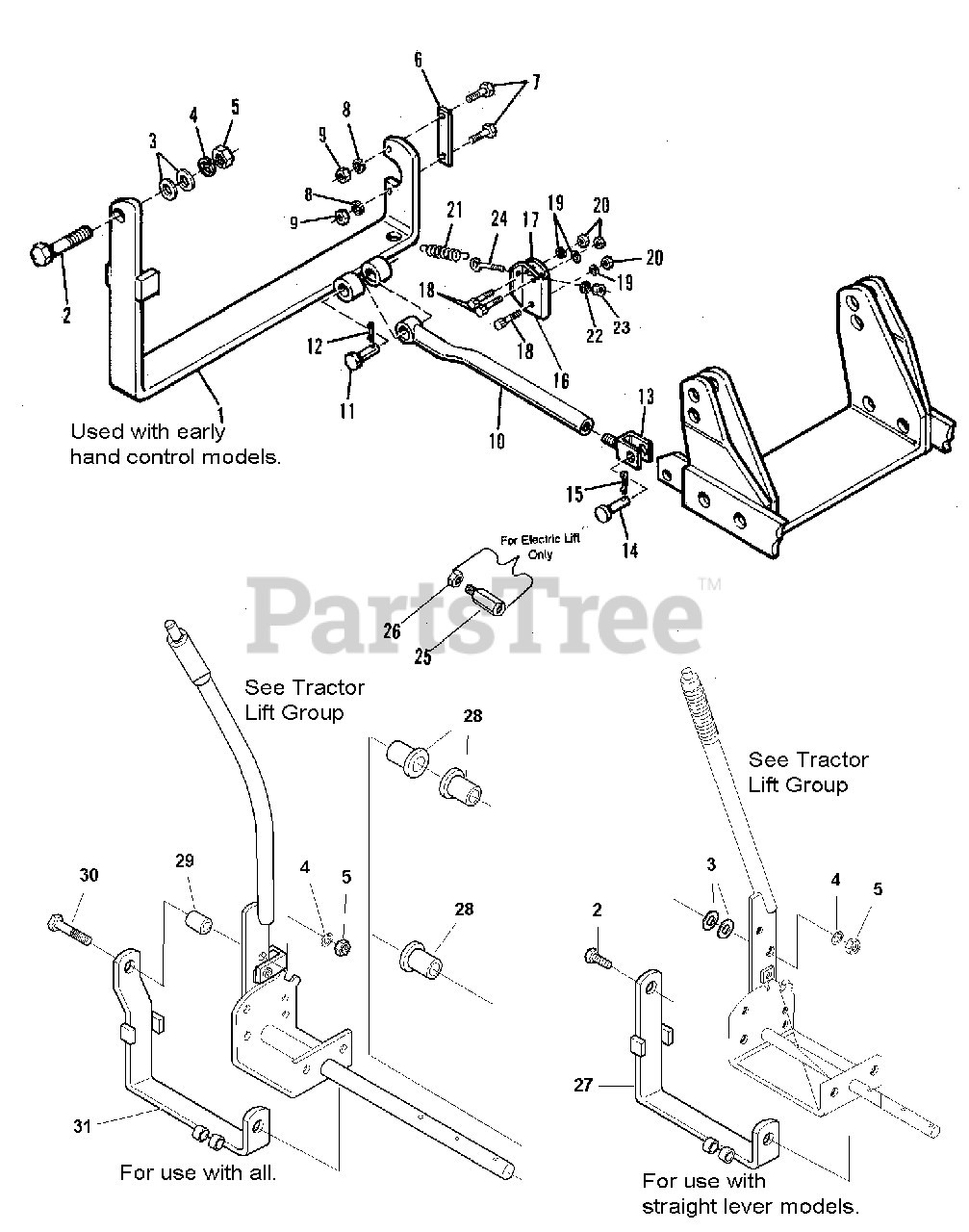

1693892 - Simplicity 40" Snow Thrower Attachment Lift Group Parts Diagram

40" Snow Thrower Attachment

Lift Group Parts Diagram

  • Title

1

Simplicity 1718541SM

BRACKET, Lifting, Manual

$107.99

$

Usually ships in 2-12 days

0

2

Simplicity 1921525SM

CAPSCREW, Hex, 1/2-13 x 1-3/4

$7.49

$

Usually ships in 2-12 days

0

3

Simplicity 1918431SM

WASHER, Plain, 1/2
(Superseded to 704011)

$4.49

$

In Stock, Qty 11

0

4

Simplicity 1916966SM

LOCKWASHER, 1/2
(Superseded to 703341)

$4.49

$

In Stock, only 1 left!

0

5

Simplicity 1916951SM

NUT, Hex, 1/2-13
(Superseded to 703340)

$7.99

$

In Stock, only 1 left!

0

6

Simplicity 1713729SM

PLATE, Anchoring

$27.99

$

Usually ships in 2-12 days

0

7

Simplicity 1921960SM

CAPSCREW, Hex, 1/4-20 x 1

$3.49

$

In Stock, only 1 left!

0

8

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

9

Simplicity 1916622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 1713730SM

ROD, Push

$

$

Not available

11

Simplicity 1713731SM

PIN, Clevis

$16.99

$

Usually ships in 2-12 days

0

12

Simplicity 1918448SM

COTTER PIN, 3/32 x 1

$4.49

$

Usually ships in 2-12 days

0

13

Simplicity 1713732SM

FORK, Threaded

$60.99

$

Usually ships in 2-12 days

0

14

Simplicity 1713733SM

PIN, Clevis, 5/8 x 1-5/8

$23.99

$

Usually ships in 2-12 days

0

15

Simplicity 1960033SM

CLIP, Hairpin, 1/8 x 2-9/16

$3.49

$

In Stock, Qty 20+

0

16

Simplicity 1713734SM

BRACKET, Fixation

$41.99

$

Usually ships in 2-12 days

0

17

Simplicity 1713735SM

PLATE, Retaining

$38.99

$

Usually ships in 2-12 days

0

18

Simplicity 1920415SM

CAPSCREW, Hex, 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

19

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

20

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

21

Simplicity 1713736SM

SPRING

$45.99

$

Usually ships in 2-12 days

0

22

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

23

Simplicity 1916622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

24

Simplicity 1713737SM

EYEBOLT, 1/4-20 x 4

$4.99

$

Usually ships in 2-12 days

0

25

Simplicity 1713738SM

ROD, Extension (Electric Lift Only)

$28.99

$

Usually ships in 2-12 days

0

26

Simplicity 1915726SM

NUT, Hex, 5/8-11 (Electric Lift Only)
(Superseded to 703912)

$3.49

$

In Stock, Qty 5

0

27

Simplicity 1718541SM

BRACKET, (Straight Lift Handle Models)

$107.99

$

Usually ships in 2-12 days

0

28

Simplicity 1722456SM

BUSHING

$

$

Not available

29

Simplicity 1722457SM

SPACER

$25.99

$

Usually ships in 2-12 days

0

30

Simplicity 1921024SM

CAPSCREW, Hex Head, 1/2-13 x 2
(Superseded to 703817)

$5.99

$

Usually ships in 2-12 days

0

31

Simplicity 1722455SM

BRACKET, (All Lift Handles)

$

$

Not available
