1693890 - Simplicity Landlord DLX 44" Garden Tractor, 18hp Lift Mechanism Group - Manual 44" Parts Diagram

Landlord DLX 44" Garden Tractor, 18hp

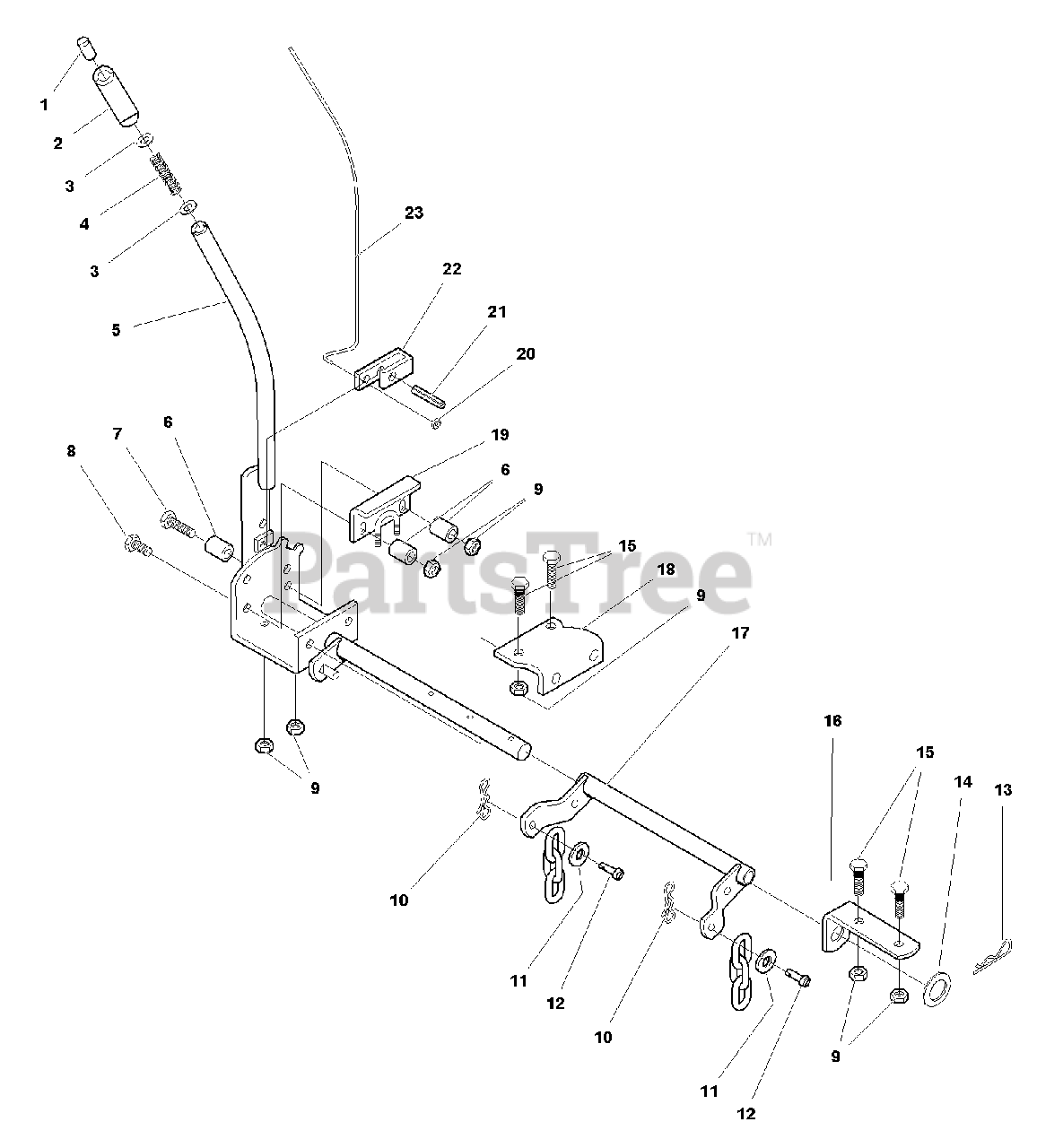

Lift Mechanism Group - Manual 44" Parts Diagram

  • Title

$7.49

$

In Stock, only 1 left!

0

$12.99

$

In Stock, only 1 left!

0

3

Simplicity 1918265SM

WASHER, 5/16
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

4

Simplicity 1723321SM

SPRING, Compression

$6.99

$

In Stock, only 4 left!

0

5

Simplicity 1721866SM

QUADRANT & LEVER ASSEMBLY

$

$

Not available

$

$

Not available

7

Simplicity 1922127SM

CAPSCREW, Hex Head, 5/16-18 x 1-3/4
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

8

Simplicity 1921977SM

CAPSCREW, Hex Head, 5/16-18 x 1-1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 7

0

9

Simplicity 1919438SM

LOCKNUT, ESNA, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

10

Simplicity 1722320SM

PIN, Cotter Locking

$3.49

$

In Stock, Qty 20+

0

11

Simplicity 1922755SM

WASHER, 3/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 9

0

12

Simplicity 1708298SM

PIN, Round Head, Drilled, 3/8 x 1

$

$

Not available

13

Simplicity 1960033SM

HAIR PIN, Clip

$3.49

$

In Stock, Qty 20+

0

14

Simplicity 1911386SM

WASHER, 3/4
(Superseded to 703992)

$4.49

$

Usually ships in 2-12 days

0

15

Simplicity 1923325SM

CAPSCREW, Hex Head, 5/16-18 x 7/8
(Superseded to 703408)

$4.99

$

In Stock, Qty 13

0

$

$

Not available

17

Simplicity 1721869SM

TUBE & ARMS ASSEMBLY

$

$

Not available

18

Simplicity 1704713ASM

BRACKET & PINS ASSEMBLY

$91.99

$

Usually ships in 2-12 days

0

19

Simplicity 1704715SM

BRACKET & U BOLT ASSEMBLY (Early Models)
(Superseded to 1704715ASM)

$25.99

$

Usually ships in 2-12 days

0

19

Simplicity 1722679SM

BRACKET & U BOLT ASSEMBLY (Later Models)

$27.99

$

Usually ships in 2-12 days

0

20

Simplicity 1934953SM

PUSH NUT, 5/16

$3.49

$

In Stock, only 1 left!

0

21

Simplicity 1927609SM

ROLL PIN, 3/8 x 1

$3.49

$

In Stock, Qty 5

0

22

Simplicity 1721999SM

LATCH
(Superseded to 1721999ASM)

$46.99

$

Usually ships in 2-12 days

0

$18.99

$

Usually ships in 2-12 days

0
