1693867 - Snapper Lift Lever for Snow Thrower and Dozer Blade Lift Lever Group Parts Diagram

Lift Lever for Snow Thrower and Dozer Blade

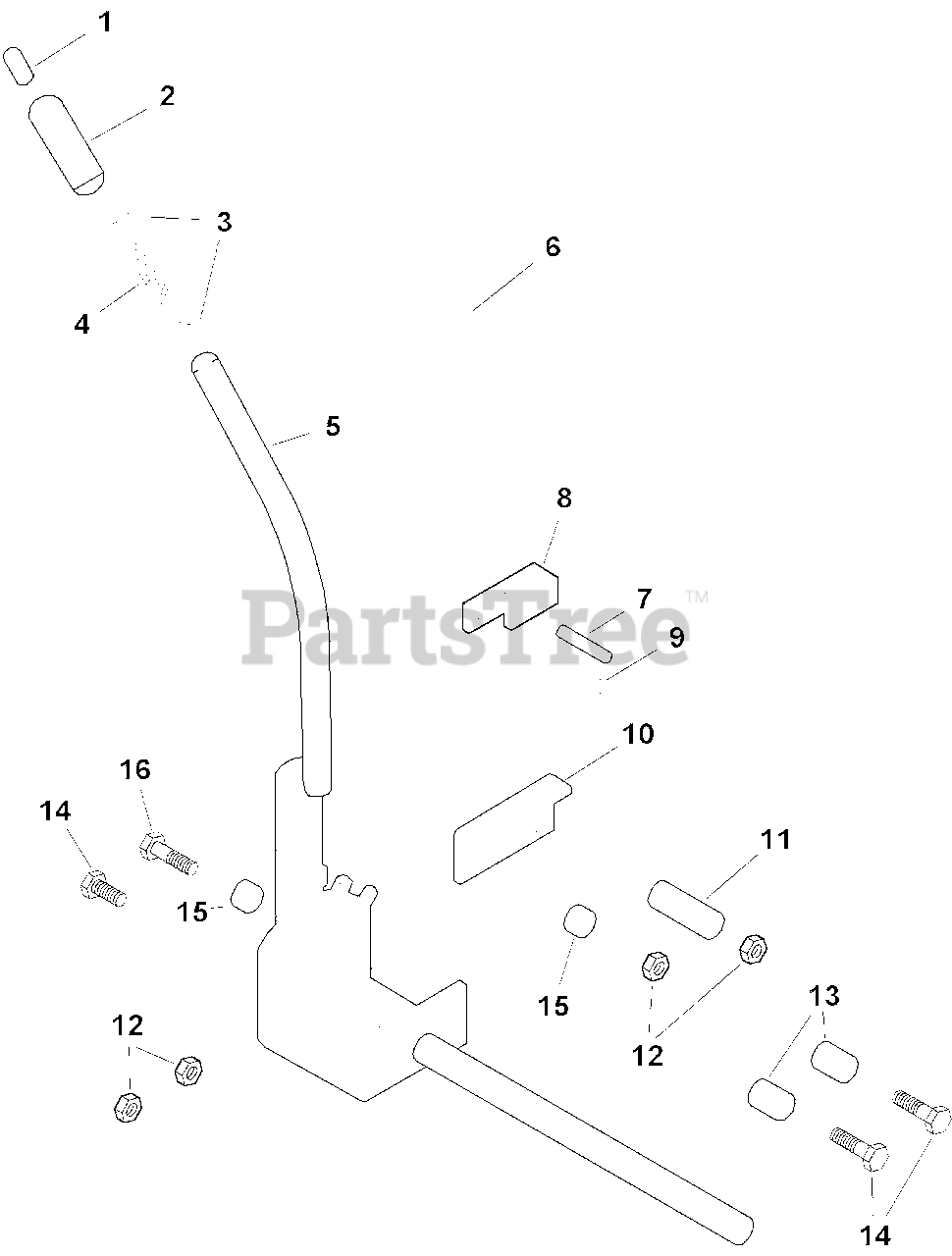

Lift Lever Group Parts Diagram

  • Title

1

Snapper 1650157SM

BUTTON

$7.49

$

In Stock, only 1 left!

0

2

Snapper 1713995SM

GRIP, Black

$12.99

$

In Stock, only 1 left!

0

3

Snapper 1918265SM

WASHER
(Superseded to 703350)

$4.49

$

In Stock, only 2 left!

0

4

Snapper 1676526 SM

SPRING, Compression

$

$

Not available

5

Snapper 1722121ASM

QUADRANT & LEVER ASSEMBLY

$

$

Not available

6

Snapper 1721959SM

ROD

$18.99

$

Usually ships in 2-12 days

0

7

Snapper 1927609SM

ROLL PIN, 3/8 x 1

$3.49

$

In Stock, Qty 5

0

8

Snapper 1721999SM

LATCH, Lift Lever
(Superseded to 1721999ASM)

$46.99

$

Usually ships in 2-12 days

0

9

Snapper 1934953SM

PUSH NUT

$3.49

$

In Stock, only 1 left!

0

10

Snapper 1704715SM

BRACKET
(Superseded to 1704715ASM)

$25.99

$

Usually ships in 2-12 days

0

11

Snapper 1674669SM

SPACER-0.39 IDX0.625O

$11.99

$

In Stock, Qty 20+

0

12

Snapper 1919438SM

NUT, ESNA, Hex Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

13

Snapper 1675795SM

SPACER

$10.99

$

Usually ships in 2-12 days

0

14

Snapper 1921977SM

CAPSCREW, Hex Head, 5/16-18 x 1 1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 10

0

15

Snapper 1705249SM

SPACER

$

$

Not available

16

Snapper 1921719SM

CAPSCREW, Hex Head, 5/16-18 x 2-1/2
(Superseded to 703868)

$4.99

$

In Stock, only 4 left!

0
