1693839 - Simplicity Broadmoor Lawn Tractor, 16hp Transmission SERVICE PARTS - Tuff Torq K51 Transaxle Group (1720876) Parts Diagram

Broadmoor Lawn Tractor, 16hp

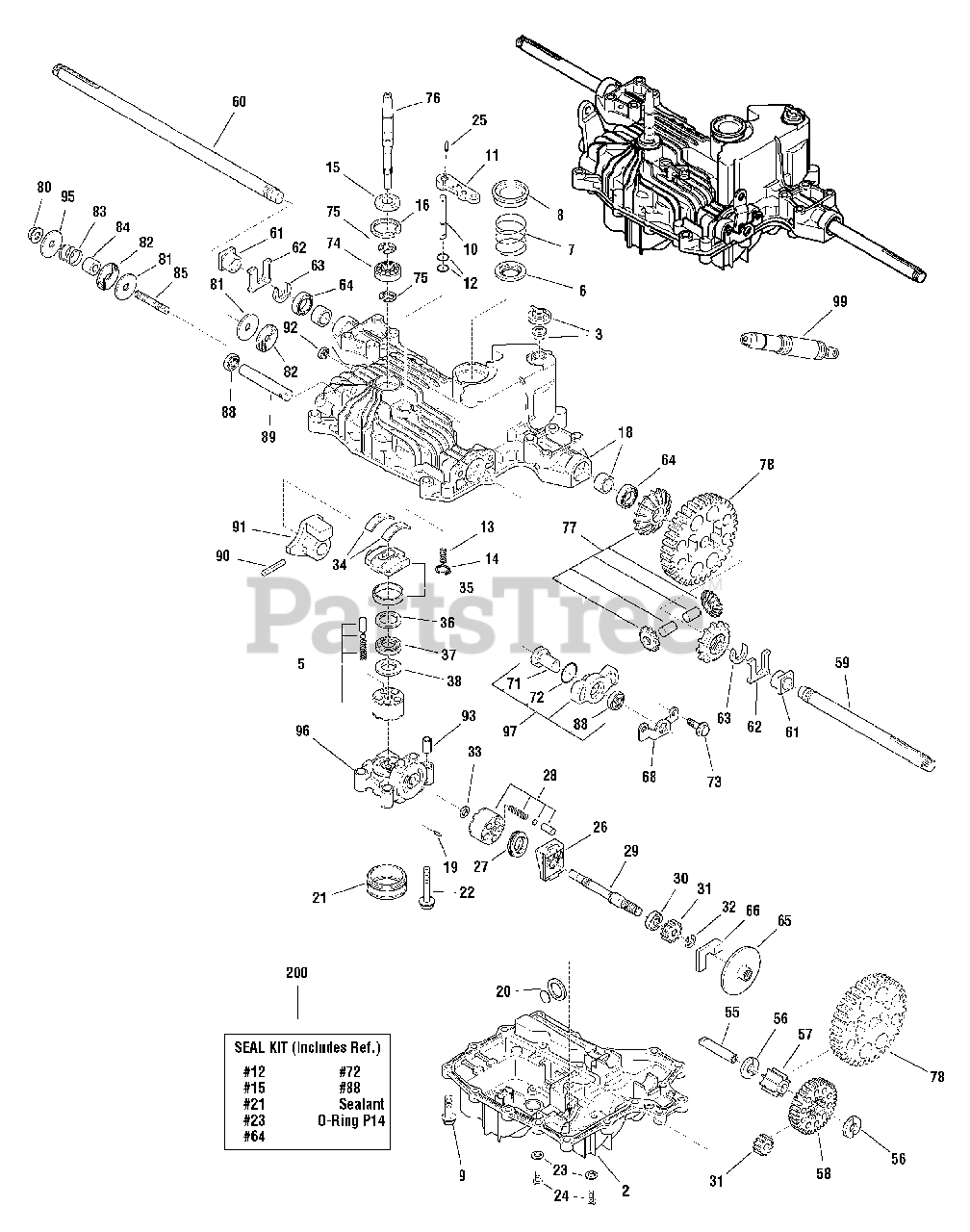

Transmission SERVICE PARTS - Tuff Torq K51 Transaxle Group (1720876) Parts Diagram

  • Title

2

Simplicity 1720416SM

LOWER HOUSING

$307.99

$

Usually ships in 2-12 days

0

3

Simplicity 1718052SM

VENT VALVE

$26.99

$

Usually ships in 2-12 days

0

5

Simplicity 1725831SM

CYLINDER BLOCK CMP.

$110.99

$

Usually ships in 2-12 days

0

6

Simplicity 1718053SM

FILTER

$

$

Not available

7

Simplicity 1718054SM

SPRING, Filter

$7.49

$

Usually ships in 2-12 days

0

8

Simplicity 1718055SM

SEALING CAP

$20.99

$

Usually ships in 2-12 days

0

9

Simplicity 1707789SM

TAPPING SCREW

$6.99

$

Usually ships in 2-12 days

0

10

Simplicity 1720417SM

SHAFT , Bypass

$27.99

$

Usually ships in 2-12 days

0

11

Simplicity 1720418SM

LEVER , Bypass

$14.99

$

Usually ships in 2-12 days

0

12

Simplicity 1708691SM

O-RING, 1A P10A
(Superseded to 7073793YP)

$5.99

$

Usually ships in 2-12 days

0

13

Simplicity 1720419SM

SPRING

$5.49

$

Usually ships in 2-12 days

0

14

Simplicity 1718061SM

RING, Snap

$

$

Not available

15

Simplicity 1708651SM

SEAL, TC
(Superseded to 7073794YP)

$23.99

$

Usually ships in 2-12 days

0

16

Simplicity 1708650SM

RING, Snap

$4.99

$

Usually ships in 2-12 days

0

18

Simplicity 1720420SM

UPPER HOUSING CMP.

$

$

Not available

19

Simplicity 1718070SM

PIN

$

$

Not available

20

Simplicity 1718065SM

MAGNET

$14.99

$

Usually ships in 2-12 days

0

21

Simplicity 1718071SM

FILTER
(Superseded to 1724954SM)

$31.99

$

In Stock, Qty 14

0

22

Simplicity 1720422SM

BOLT

$4.49

$

Usually ships in 2-12 days

0

23

Simplicity 1708649SM

WASHER, Seal 8

$6.49

$

Usually ships in 2-12 days

0

24

Simplicity 1708653SM

BOLT 8 x 12

$3.99

$

Usually ships in 2-12 days

0

25

Simplicity 1707839SM

PIN

$3.49

$

Usually ships in 2-12 days

0

26

Simplicity 1718077SM

HOUSING

$45.99

$

Usually ships in 2-12 days

0

27

Simplicity 1718078SM

BEARING

$68.99

$

Usually ships in 2-12 days

0

28

Simplicity 1718079SM

CYLINDER BLOCK CMP.

$535.99

$

Usually ships in 2-12 days

0

29

Simplicity 1718080SM

MOTOR SHAFT

$113.99

$

Usually ships in 2-12 days

0

30

Simplicity 1718083SM

BEARING
(Superseded to 7073792YP)

$64.99

$

In Stock, only 1 left!

0

31

Simplicity 1720425SM

MOTOR GEAR

$

$

Not available

32

Simplicity 1718081SM

E-RING

$3.49

$

Usually ships in 2-12 days

0

33

Simplicity 1718084SM

WASHER

$4.49

$

Usually ships in 2-12 days

0

34

Simplicity 1718089SM

THRUST METAL

$16.99

$

Usually ships in 2-12 days

0

35

Simplicity 1720426SM

SWASH PLATE CMP.

$

$

Not available

36

Simplicity 1718088SM

THRUST PLATE B

$24.99

$

Usually ships in 2-12 days

0

37

Simplicity 1718086SM

BEARING

$35.99

$

Usually ships in 2-12 days

0

38

Simplicity 1718087SM

THRUST PLATE A

$36.99

$

Usually ships in 2-12 days

0

55

Simplicity 1718104SM

REDUCTION SHAFT

$

$

Not available

56

Simplicity 1720439SM

WASHER

$6.49

$

In Stock, only 1 left!

0

57

Simplicity 1718107SM

FINAL PINION

$23.99

$

Usually ships in 2-12 days

0

58

Simplicity 1720440SM

REDUCTION GEAR

$39.99

$

Usually ships in 2-12 days

0

59

Simplicity 1720441SM

AXLE SHAFT, LH

$

$

Not available

60

Simplicity 1718109SM

AXLE SHAFT, RH

$80.99

$

Usually ships in 2-12 days

0

61

Simplicity 1718110SM

BUSHING

$

$

Not available

62

Simplicity 1718112SM

THRUST WASHER

$18.99

$

Usually ships in 2-12 days

0

63

Simplicity 1718113SM

RING

$

$

Not available

64

Simplicity 1718111SM

SEAL
(Superseded to 84002383)

$15.99

$

In Stock, only 3 left!

0

65

Simplicity 1718114SM

DISK, Brake

$13.99

$

Usually ships in 2-12 days

0

66

Simplicity 1718115SM

SHOE, Brake

$

$

Not available

68

Simplicity 1718119SM

PLATE, Brake

$6.49

$

Usually ships in 2-12 days

0

71

Simplicity 1718117SM

SHAFT, Brake

$16.99

$

Usually ships in 2-12 days

0

72

Simplicity 1718121SM

PACKING

$4.49

$

Usually ships in 2-12 days

0

73

Simplicity 1718122SM

BOLT

$

$

Not available

74

Simplicity 1708673SM

BEARING

$24.99

$

Usually ships in 2-12 days

0

75

Simplicity 1718076SM

RING

$4.49

$

Usually ships in 2-12 days

0

76

Simplicity 1720424SM

PUMP SHAFT

$131.99

$

Usually ships in 2-12 days

0

77

Simplicity 1718103SM

DIFF. GEAR KIT

$109.99

$

Usually ships in 2-12 days

0

78

Simplicity 1718102SM

FINAL GEAR

$125.99

$

Usually ships in 2-12 days

0

80

Simplicity 1720437SM

LOCK NUT

$3.49

$

Usually ships in 2-12 days

0

81

Simplicity 1720438SM

FRICTION PLATE CMP.

$14.99

$

Usually ships in 2-12 days

0

82

Simplicity 1720432SM

WASHER

$6.99

$

Usually ships in 2-12 days

0

83

Simplicity 1720430SM

SPRING, Friction

$5.99

$

Usually ships in 2-12 days

0

84

Simplicity 1720429SM

COLLAR

$2.49

$

Usually ships in 2-12 days

0

85

Simplicity 1720436SM

STUD

$8.49

$

Usually ships in 2-12 days

0

88

Simplicity 1718120SM

SEAL, TC

$10.99

$

Usually ships in 2-12 days

0

89

Simplicity 1720434SM

CONTROL SHAFT

$

$

Not available

90

Simplicity 1707840SM

PIN

$3.49

$

Usually ships in 2-12 days

0

91

Simplicity 1720723SM

CONTROL ARM ASSEMBLY

$39.99

$

Usually ships in 2-12 days

0

92

Simplicity 1720427SM

CAP, Sealing

$6.99

$

Usually ships in 2-12 days

0

93

Simplicity 1718069SM

KNOCK PIN

$3.49

$

Usually ships in 2-12 days

0

95

Simplicity 1720431SM

WASHER

$

$

Not available

96

Simplicity 1718068SM

CENTER CASE B CMP.

$330.99

$

Usually ships in 2-12 days

0

97

Simplicity 1720442SM

BRAKE CAM KIT (Includes Ref. Nos. 71, 72, & 88)

$38.99

$

Usually ships in 2-12 days

0

99

Simplicity 1718039SM

SHOCK ABSORBER

$240.99

$

In Stock, only 1 left!

0

200

Simplicity 1727546

K51/K56 SEAL KIT (Includes Ref. Nos. 12, 15, 21, 23, 64, 72, & 88)

Note: (TT 192168-99440)

$

$

Not available
