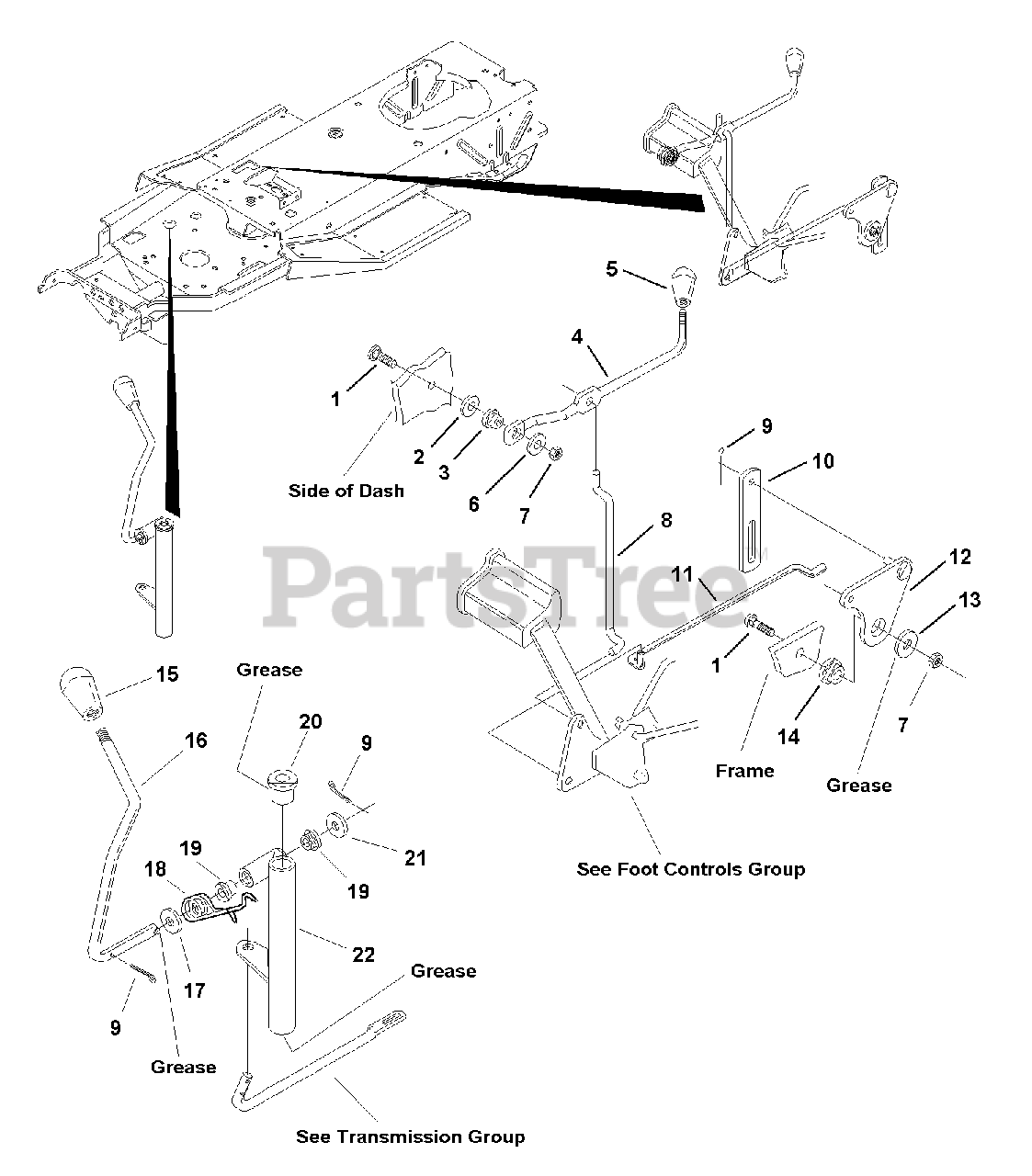

1693839 - Simplicity Broadmoor Lawn Tractor, 16hp Hand Controls Group Parts Diagram

Broadmoor Lawn Tractor, 16hp

Hand Controls Group Parts Diagram

  • Title

1

Simplicity 1960223SM

CARRIAGE BOLT, 5/16-18 x 1-1/4
(Superseded to 703446)

$4.49

$

In Stock, Qty 5

0

2

Simplicity 1924356SM

WASHER, 3/8
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

3

Simplicity 1705590SM

SPACER

$16.99

$

Usually ships in 2-12 days

0

4

Simplicity 1717989SM

ROD, Lift Handle

$40.99

$

Usually ships in 2-12 days

0

5

Simplicity 1718219SM

KNOB, Lift Rod

$5.99

$

Usually ships in 2-12 days

0

6

Simplicity 1919381SM

WASHER, 5/16
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

7

Simplicity 1919438SM

LOCKNUT, Hex, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

8

Simplicity 1704623SM

ROD, Lift, Upper

$

$

Not available

9

Simplicity 1918447SM

PIN, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

10

Simplicity 1704756A

LINK, Lift, Upper
(Superseded to 1704756ASM)

$19.99

$

In Stock, only 3 left!

0

11

Simplicity 1704624SM

ROD, Link, Lift

$

$

Not available

12

Simplicity 1704825SM

CAM & WELD PIN ASSEMBLY, Lift

$80.99

$

Usually ships in 2-12 days

0

13

Simplicity 1960044SM

WASHER, 5/16

Note: Grease.

$4.49

$

In Stock, only 3 left!

0

14

Simplicity 1704629SM

SPACER
(Superseded to 1732540SM)

$10.99

$

Usually ships in 2-12 days

0

15

Simplicity 1713843SM

KNOB

$12.99

$

Usually ships in 2-12 days

0

16

Simplicity 1713851SM

ROD, Shift

Note: Grease.

$42.99

$

Usually ships in 2-12 days

0

17

Simplicity 1924361SM

WASHER, 1/2
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

18

Simplicity 1709236SM

SPRING

$57.99

$

Usually ships in 2-12 days

0

19

Simplicity 1704428SM

BUSHING

$3.99

$

Usually ships in 2-12 days

0

20

Simplicity 2176440SM

BUSHING

Note: Grease.

$4.99

$

In Stock, Qty 20+

0

21

Simplicity 1960206SM

WASHER, 1/2

$3.99

$

Usually ships in 2-12 days

0

22

Simplicity 1720975SM

LEVER, Tube & Pivot Assembly, Shift

Note: Grease.

$51.99

$

Usually ships in 2-12 days

0
