1693839 - Simplicity Broadmoor Lawn Tractor, 16hp Electrical Group - Main Harness Lower Parts Diagram
Broadmoor Lawn Tractor, 16hp

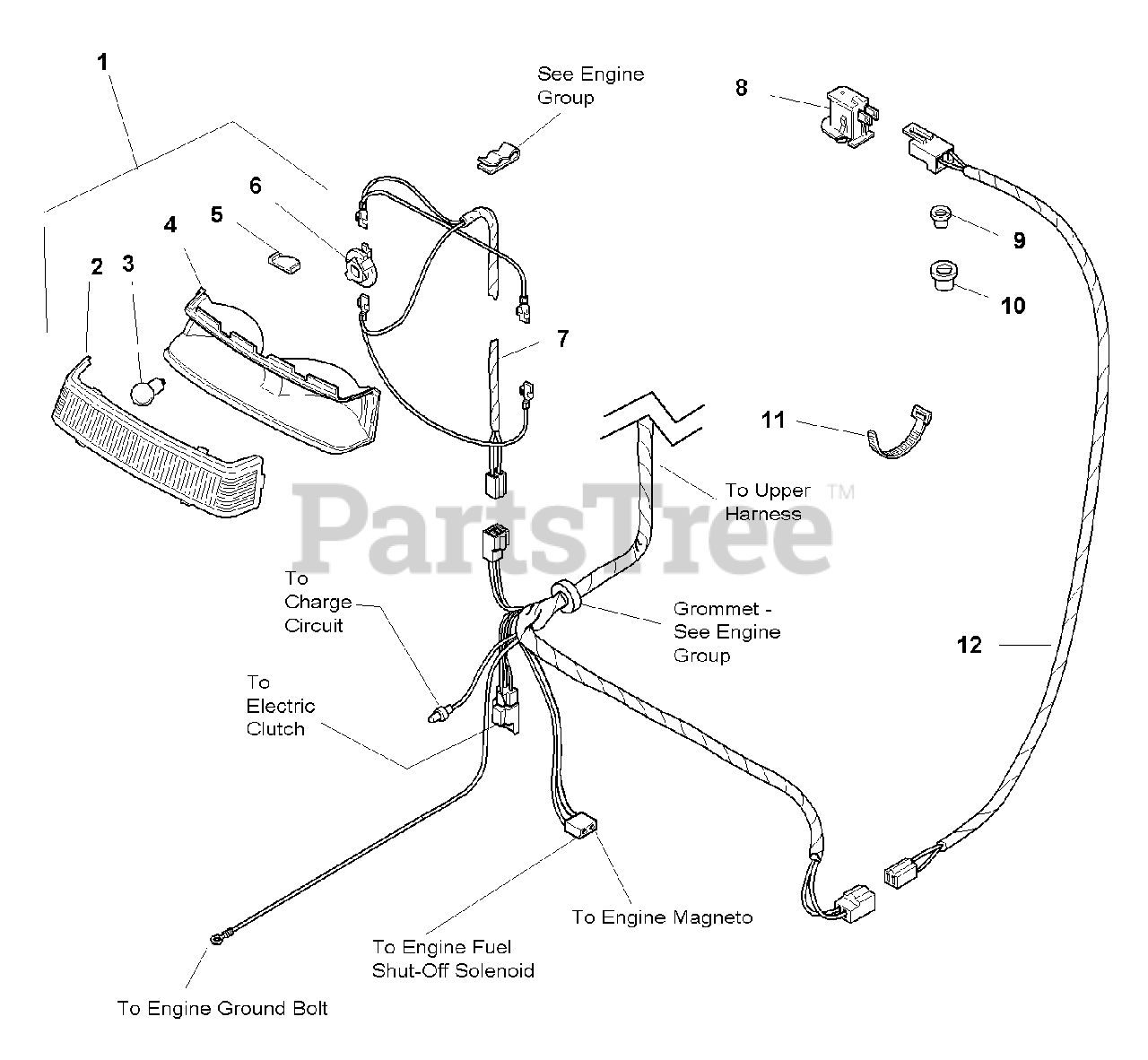

Electrical Group - Main Harness Lower Parts Diagram
Simplicity 1703945SM
HEADLIGHT ASSEMBLY (Includes Ref. Nos. 2, 3, 4, 5 & 6)
$164.99
$
In Stock, only 1 left!
Simplicity 1703248SM
LENS, Headlight
$50.99
$
In Stock, only 1 left!
Simplicity 1677371SM
BULB, Headlight, 12.8V
$30.99
$
In Stock, only 1 left!
Simplicity 1703249SM
BEZEL, Headlight
$93.99
$
In Stock, only 1 left!
Simplicity 1703946SM
HEAT SHIELD
$
$
Not available
Simplicity 1677370SM
SOCKET, Bulb
$21.99
$
In Stock, only 2 left!
Simplicity 1674358SM
WIRE ASSEMBLY, Headlight
$35.99
$
In Stock, Qty 6
Simplicity 1732004SM
SWITCH, Seat, Operator Present
$8.99
$
In Stock, Qty 20+
Simplicity 1701229SM
BUSHING, Snap, Small
$1.99
$
Usually ships in 2-12 days
Simplicity 1705921SM
BUSHING, Snap, Large
$2.49
$
Usually ships in 2-12 days
Simplicity 1701011SM
CABLE TIE
$5.49
$
In Stock, only 2 left!
Simplicity 1704877SM
WIRE ASSEMBLY, Seat Switch
$
$
Not available
