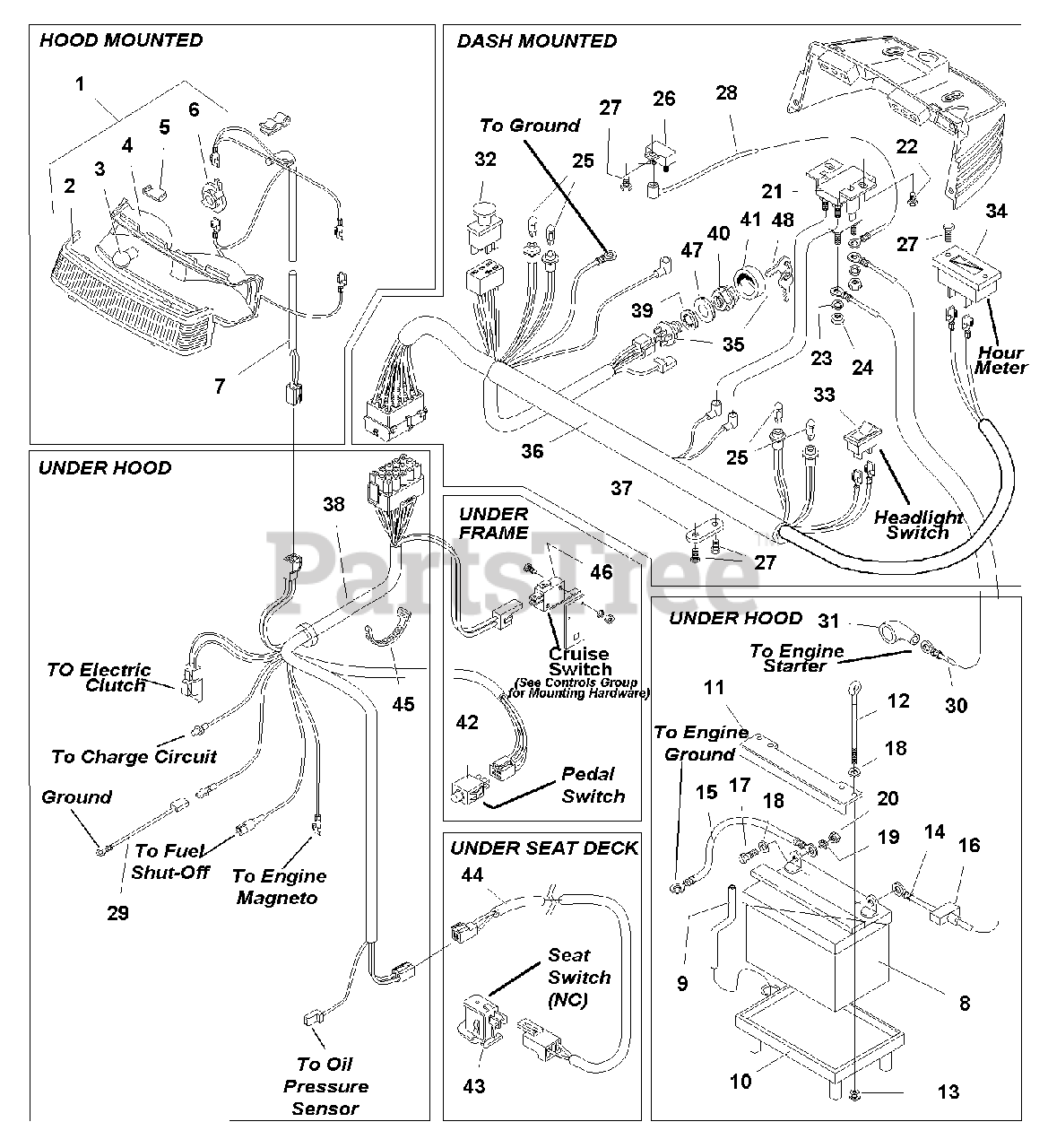

1693836 - Simplicity Landlord DLX 44" Garden Tractor, 18hp Electrical Group - 18HP & 20HP Briggs & Stratton Parts Diagram

Landlord DLX 44" Garden Tractor, 18hp

Electrical Group - 18HP & 20HP Briggs & Stratton Parts Diagram

  • Title

1

Simplicity 1703945SM

HEADLIGHT ASSEMBLY, Complete (Includes Ref. Nos. 2-6)

$164.99

$

In Stock, only 1 left!

0

2

Simplicity 1703248SM

LENS, Headlight

$50.99

$

In Stock, only 1 left!

0

3

Simplicity 1677371SM

BULB, Headlight

$30.99

$

In Stock, only 1 left!

0

4

Simplicity 1703249SM

BEZEL, Headlight

$93.99

$

In Stock, only 1 left!

0

5

Simplicity 1703946SM

HEAT SHIELD

$

$

Not available

6

Simplicity 1677370SM

SOCKET, Bulb

$21.99

$

In Stock, only 2 left!

0

7

Simplicity 1674358SM

WIRE ASSEMBLY, Headlight

$35.99

$

In Stock, Qty 7

0

8

Simplicity 1685215SM

BATTERY KIT

$

$

Not available

9

Simplicity 1612103SM

HOSE, Battery, Drain

$5.49

$

Usually ships in 2-12 days

0

10

Simplicity 1704112SM

TRAY, Battery

$10.99

$

Usually ships in 2-12 days

0

11

Simplicity 1718596ASM

HOLD DOWN, Battery

$36.99

$

Usually ships in 2-12 days

0

12

Simplicity 1704632SM

ROD, Battery Hold Down

$

$

Not available

13

Simplicity 1704349SM

NUT, Plastic, 1/4-20

$3.49

$

Usually ships in 2-12 days

0

14

Simplicity 1603618SM

CABLE, Battery to Solenoid

$11.99

$

In Stock, only 3 left!

0

15

Simplicity 1713163SM

CABLE, Battery to Ground

$24.99

$

Usually ships in 2-12 days

0

16

Simplicity 1677296SM

BOOT, Insulator

$6.49

$

In Stock, Qty 11

0

17

Simplicity 1923341SM

CAPSCREW, Hex Head, 1/4-20 x 3/4

$4.49

$

In Stock, Qty 8

0

18

Simplicity 1921319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

19

Simplicity 1916964SM

WASHER, Lock, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

20

Simplicity 1916622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

21

Simplicity 1686981SM

SOLENOID, 4-Pole, 12VDC
(Superseded to 1686981YP)

$28.99

$

In Stock, Qty 20+

0

22

Simplicity 1960536SM

CAPSCREW, Hex Head, Plastite, 1/4-20 x 1/2

$4.99

$

Usually ships in 2-12 days

0

23

Simplicity 1917356SM

WASHER, Lock, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

24

Simplicity 2820263SM

NUT, Hex, 5/16-24
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

25

Simplicity 1676130SM

BULB, Indicator Light

$

$

Not available

26

Simplicity 1665238SM

CIRCUIT BREAKER

$14.99

$

In Stock, Qty 20+

0

27

Simplicity 1960369SM

CAPSCREW, Hex Head, Plastite, #8-16 x 1/2

$3.49

$

In Stock, only 1 left!

0

28

Simplicity 1665237SM

WIRE ASSEMBLY

$11.99

$

In Stock, Qty 7

0

29

Simplicity 1707232SM

WIRE ASSEMBLY, Engine Ground

$5.99

$

Usually ships in 2-12 days

0

30

Simplicity 1668819SM

CABLE, Solenoid to Starter

$16.99

$

Usually ships in 2-12 days

0

31

Simplicity 2122023SM

COVER, Terminal

$5.99

$

In Stock, Qty 12

0

32

Simplicity 1716332SM

SWITCH, PTO Electric Clutch
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

33

Simplicity 1703799SM

SWITCH, Headlight

$31.99

$

In Stock, only 1 left!

0

34

Simplicity 1715138SM

HOURMETER

$113.99

$

Usually ships in 2-12 days

0

35

Simplicity 1686734SM

SWITCH ASSEMBLY, Ignition (Includes Ref. Nos. 39, 40, 41, 47 & 48)

$32.99

$

In Stock, Qty 20+

0

36

Simplicity 1719352SM

WIRING HARNESS, Upper

$

$

Not available

37

Simplicity 1704614SM

STRAP, Wire Retainer

$11.99

$

Usually ships in 2-12 days

0

38

Simplicity 1719354SM

WIRING HARNESS, Lower

$55.99

$

Usually ships in 2-12 days

0

39

Simplicity 1960547SM

WASHER, Lock, Internal Tooth

$4.49

$

In Stock, only 4 left!

0

40

Simplicity 1717549SM

NUT, Hex Flange, 5/8
(Superseded to 847144)

$10.99

$

Usually ships in 2-12 days

0

41

Simplicity 1717550SM

COVER, Key Switch
(Superseded to 847150)

$8.49

$

In Stock, Qty 16

0

42

Simplicity 1719681SM

SWITCH, Pedal

$21.99

$

Usually ships in 2-12 days

0

43

Simplicity 1732005SM

SWITCH, Seat (NC)
(Superseded to 7023354YP)

$12.99

$

In Stock, Qty 20+

0

44

Simplicity 1719753SM

WIRE ASSEMBLY, Seat Switch

$

$

Not available

45

Simplicity 1701011SM

TIE, Self-Locking

$5.49

$

In Stock, only 2 left!

0

46

Simplicity 1686951SM

SWITCH, Interlock

$

$

Not available

47

Simplicity 2101025SM

WASHER, 5/8

$4.49

$

Usually ships in 2-12 days

0

48

Simplicity 1717163SM

KEYS, Set of 2

$8.99

$

In Stock, Qty 20+

0
