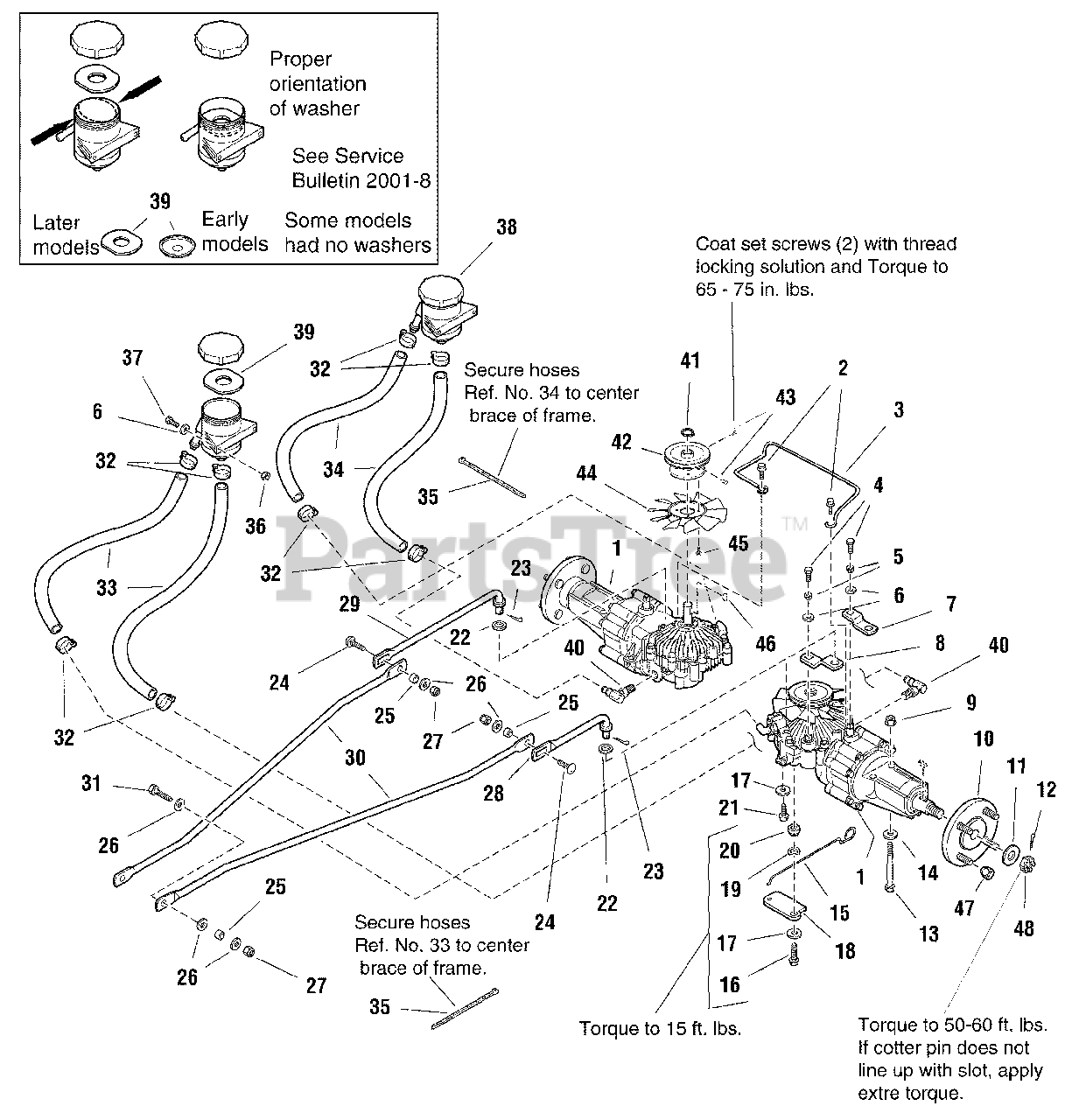

1693829 - Simplicity 38" Zero-Turn Mower, 14hp Transmission Group Parts Diagram

38" Zero-Turn Mower, 14hp

Transmission Group Parts Diagram

  • Title

1

Simplicity 1719490SM

* TRANSMISSION, Eaton 778-028

$3134.99

$

Usually ships in 2-12 days

0

2

Simplicity 1925592SM

CAPSCREW, Hex Washer Head Taptite, 1/4-20 x 3/4
(Superseded to 703466)

$3.99

$

In Stock, Qty 10

0

3

Simplicity 1719337SM

GUIDE, Belt, Transmission

$34.99

$

Usually ships in 2-12 days

0

4

Simplicity 1922234SM

CAPSCREW, Hex Head, 1/4-28 x 5/8

$2.49

$

Usually ships in 2-12 days

0

5

Simplicity 1916964SM

LOCKWASHER, Spring 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

6

Simplicity 1921319SM

WASHER, Plain, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

7

Simplicity 1716044SM

ARM, Transmission Brake

$4.49

$

Usually ships in 2-12 days

0

8

Simplicity 1706388SM

BRACKET, Offset

$8.99

$

Usually ships in 2-12 days

0

9

Simplicity 1930645SM

NUT, Hex Lock Cent. Fl. 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

10

Simplicity 1715990SM

HUB, 4 Bolt, Tapered Bore w/Studs

$

$

Not available

11

Simplicity 1960160SM

WASHER, Plain 3/4

$4.99

$

In Stock, Qty 9

0

12

Simplicity 1923500SM

PIN, Cotter 1/8 x 1-3/4

$3.99

$

In Stock, only 1 left!

0

13

Simplicity 1922918SM

CAPSCREW, Hex Head, 3/8-16 x 3-1/4
(Superseded to 703874)

$4.49

$

In Stock, Qty 11

0

14

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

15

Simplicity 1715957SM

ROD, Actuator, Hydro Release Valve

$8.99

$

Usually ships in 2-12 days

0

16

Simplicity 1931202SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 1-1/4
(Superseded to 703167)

$3.99

$

In Stock, only 3 left!

0

17

Simplicity 1919381SM

WASHER, 5/16
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

18

Simplicity 1715968SM

ACTUATOR, Hydro Release Valve

$6.99

$

Usually ships in 2-12 days

0

19

Simplicity 2170157SM

WASHER, Wave

$3.49

$

Usually ships in 2-12 days

0

20

Simplicity 1705590SM

SPACER

$16.99

$

Usually ships in 2-12 days

0

21

Simplicity 1960373SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 7/8, Black
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

22

Simplicity 1960027SM

WASHER, Plain, 1/2
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

23

Simplicity 1918451SM

PIN, Cotter, 1/8 x 3/4

$3.99

$

Usually ships in 2-12 days

0

24

Simplicity 1931335SM

CARRIAGE BOLT, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

25

Simplicity 1703900SM

SPACER, .328 x .500 x .218

$7.99

$

Usually ships in 2-12 days

0

26

Simplicity 1919326SM

WASHER, Plain, 3/8

$4.49

$

In Stock, Qty 5

0

27

Simplicity 1919438SM

NUT, Hex, Lock ESNA, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

28

Simplicity 1715959SM

LINK, Control, Rear LH

$13.99

$

Usually ships in 2-12 days

0

29

Simplicity 1715958SM

LINK, Control, Rear RH

$13.99

$

Usually ships in 2-12 days

0

30

Simplicity 1715960SM

LINK, Control, Front

$16.99

$

Usually ships in 2-12 days

0

31

Simplicity 1921977SM

CAPSCREW, Hex Head, 5/16-18 x 1-1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 7

0

32

Simplicity 2833098SM

CLAMP, Hose

$3.49

$

In Stock, Qty 8

0

33

Simplicity 1719557SM

HOSE, LH Trans, Top & Bottom

$9.99

$

Usually ships in 2-12 days

0

34

Simplicity 1719556SM

HOSE, RH Trans, Top & Bottom

$14.99

$

In Stock, only 2 left!

0

35

Simplicity 1701011SM

TIE, Self Locking

$5.49

$

In Stock, only 2 left!

0

36

Simplicity 1930641SM

NUT, Hex Flange Whiz Lock, 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

37

Simplicity 1921959SM

CAPSCREW, Hex Head, 1/4-20 x 5/8
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 10

0

38

Simplicity 1702488SM

RESERVOIR ASSEMBLY

$59.99

$

In Stock, only 1 left!

0

39

Simplicity 1701435SM

INNER CAP (Early Models ) Use 1723164 for replacement

$13.99

$

In Stock, only 1 left!

0

39

Simplicity 1723164SM

INNER CAP (Later Models)

$4.49

$

Usually ships in 2-12 days

0

40

Simplicity 1719560SM

FITTING, Lower Transmission, Male, 90

$22.99

$

In Stock, only 2 left!

0

41

Simplicity 2827731SM

RING, Retaining

$3.99

$

In Stock, only 1 left!

0

42

Simplicity 1719382SM

PULLEY ASSEMBLY, Transmission

$68.99

$

Usually ships in 2-12 days

0

43

Simplicity 1960617SM

SETSCREW, Hex, 1/4-28 x 1/4

$3.99

$

Usually ships in 2-12 days

0

44

Simplicity 1719482SM

FAN ASSEMBLY, Transmission

$

$

Not available

45

Simplicity 1925003SM

CAPSCREW, Hex Washer Head, Taptite, 1/4 -20 x 5/8
(Superseded to 704130)

$3.99

$

In Stock, only 1 left!

0

46

Simplicity 2830672SM

KEY, Woodruff, 3/16 x 5/8, Hi-Pro

$5.49

$

Usually ships in 2-12 days

0

47

Simplicity 1729231SM

NUT, Hex, Lug, 1/2-20 NF

$2.99

$

Usually ships in 2-12 days

0

48

Simplicity 1716060SM

NUT, Hex, Slotted (Tapered Shaft)

$16.99

$

In Stock, only 2 left!
